11
INSTALLATION
The E-Drive must:
• be connected via an approved electrical isolation device
• be connected via a suitable circuit breaker that disconnects all live conductors
• be connected in accordance with the wiring rules of the country in which it is installed
• not have control enclosures left open for extended periods (excess dust will void warranty)
WARNING
ELECTRICAL

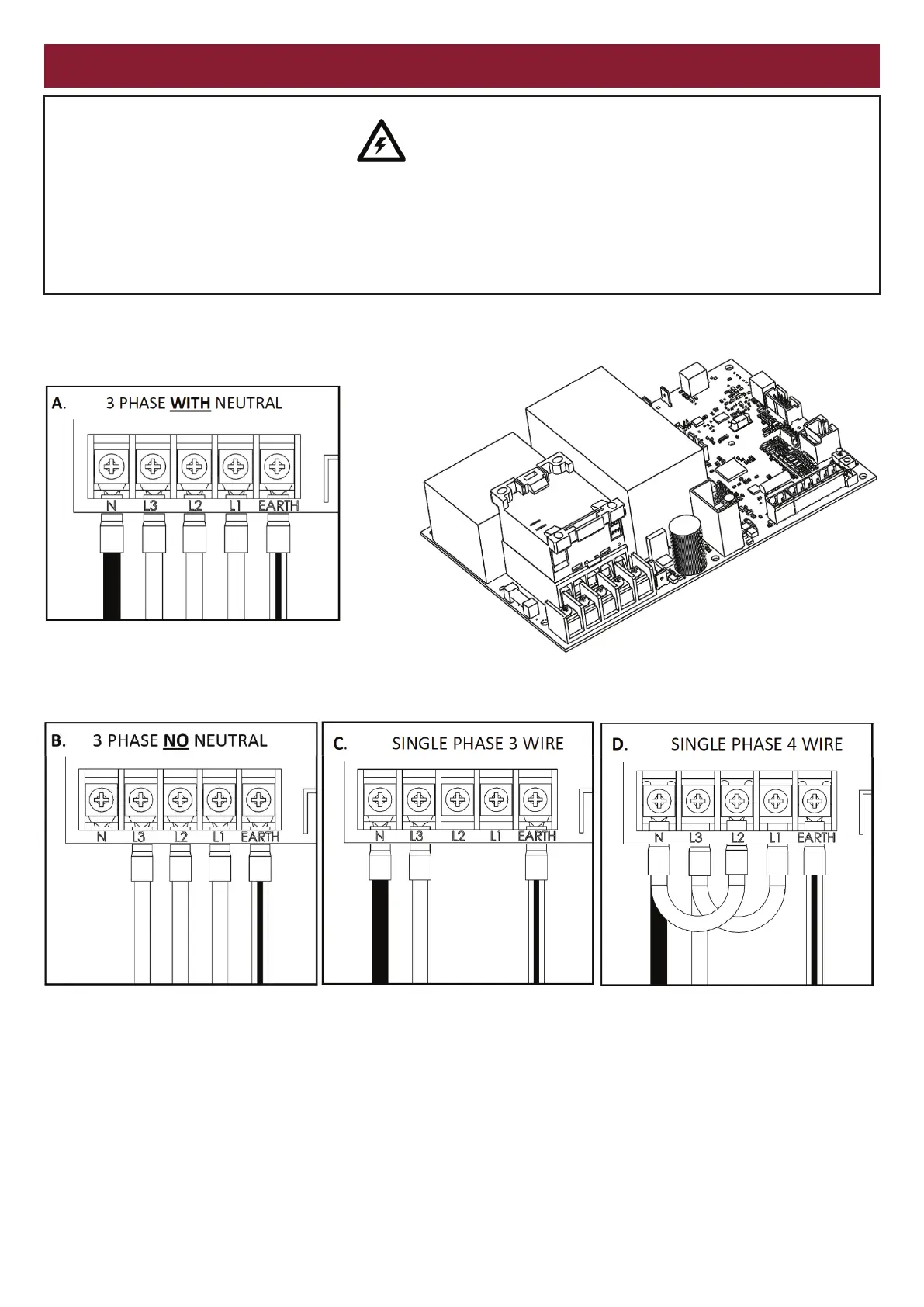

Connecting power
If fitted with a plug and lead proceed to next page.
Supply connection for 3 phase builds
without neutral
Models: ML6053N, ML6103N, MH6103N &
ML6153N
Supply connection for single phase builds
with 3 wire configuration
Model: ML6051
Supply connection for single phase builds
with 4 wire configuration
Models: ML6102 & MH6102
Supply connection for 3 phase builds with neutral
Models: ML6053, ML6103, MH6103 & ML6153
It is recommended that 1.5mm2(max.) wire size is used to avoid unnecessary crowding and difficulty when making connections. Avoid
lengthy cable ends that may cause undue pressure on delicate components.
NOTE:
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to
avoid a hazard.
• A disconnection device incorporated in the fixed wiring must be provided in accordance with the wiring rules of the country in which
it is installed.
