Once the installation of the opener and controller is complete it is time to test the operation. Make sure the door is away from the ground
or the top door stops (mid open position). This will prevent damage to the door in the event that the door direction is reversed in relation
to the controller (see below changing door direction).
SETUP AND ADJUSTMENT
Checking power
Ensure the unit is powered by checking that the POWER
ON indicator on the controller is lit. You should also notice
that the LIMIT indicator (orange) is lit which signifies that
there are no limits set.
Door direction
Check the direction of the door movement. If the direction of the door is incorrect, refer below to changing door direction.
Changing door direction
To change the door direction first put the unit into ‘limit setting mode’ by following this
1. While holding STOP, press the SET button 3 times. The LIMIT indicator will start flashing signifying ‘limit setting mode’
2. Press and hold STOP for 10 seconds until the LIMIT indicator flashes quickly.
The direction of the door movement will now be reversed.
The LIMIT indicator will remain flashing as the unit is still in limit setting mode. You can now set limits (go to step 2 on next
page)
Or to exit, press STOP.
WARNING
ELECTRICAL
When removing or replacing jumpers or
expansion boards to or from the MCB mains
power must be disconnected.
WARNING
MECHANICAL
It is important to make sure the door always
runs smoothly. Doors which stick or jam must
be repaired immediately. Employ a qualified
technician to repair the door, never attempt to
repair it yourself.
CAUTION
On new installations, the orange limit light should
be lit after initial power up. If not, DO NOT
operate door unless in limit setting mode or
serious damage or injury may occur.

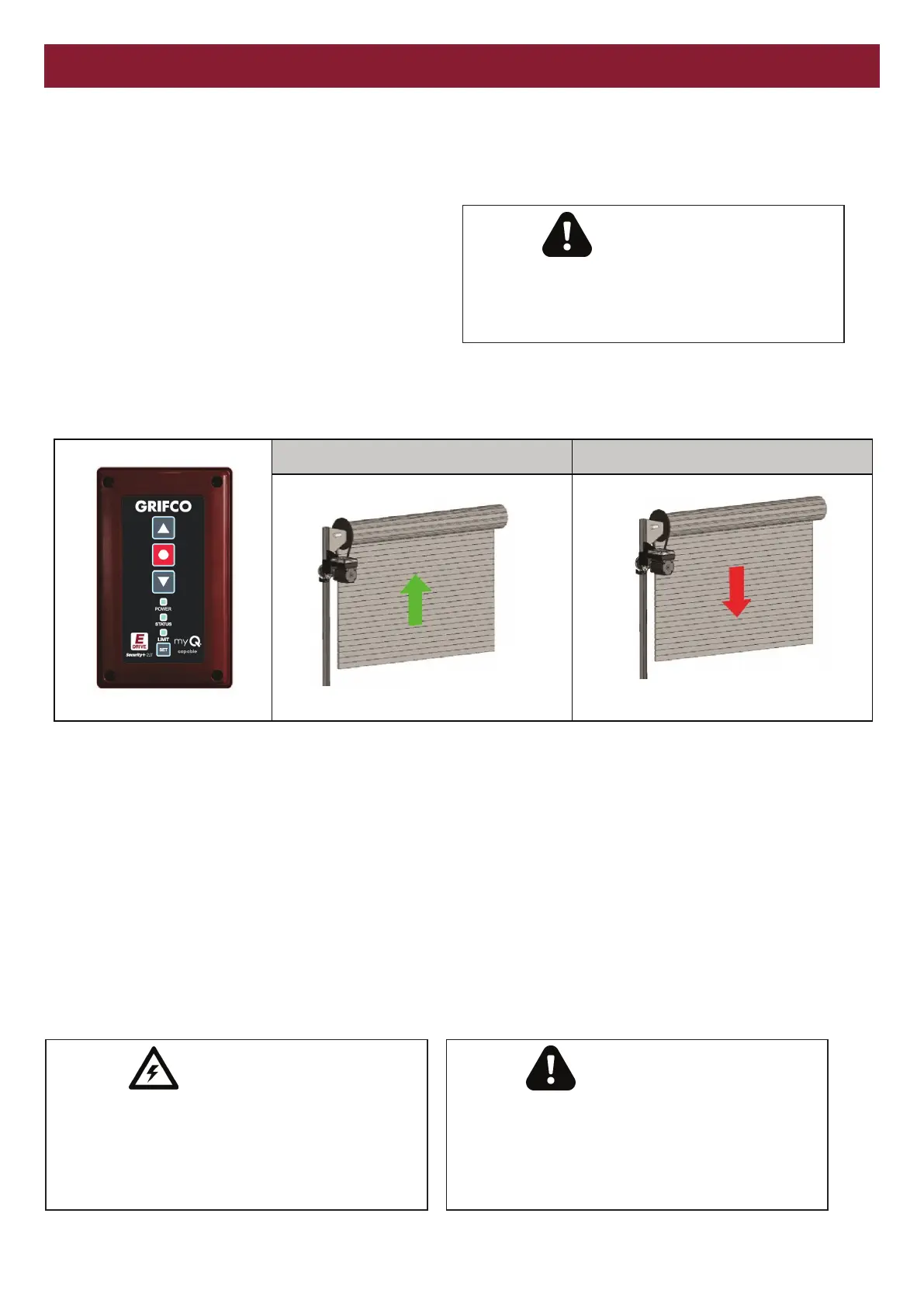

CORRECT INCORRECT
To Next Page
