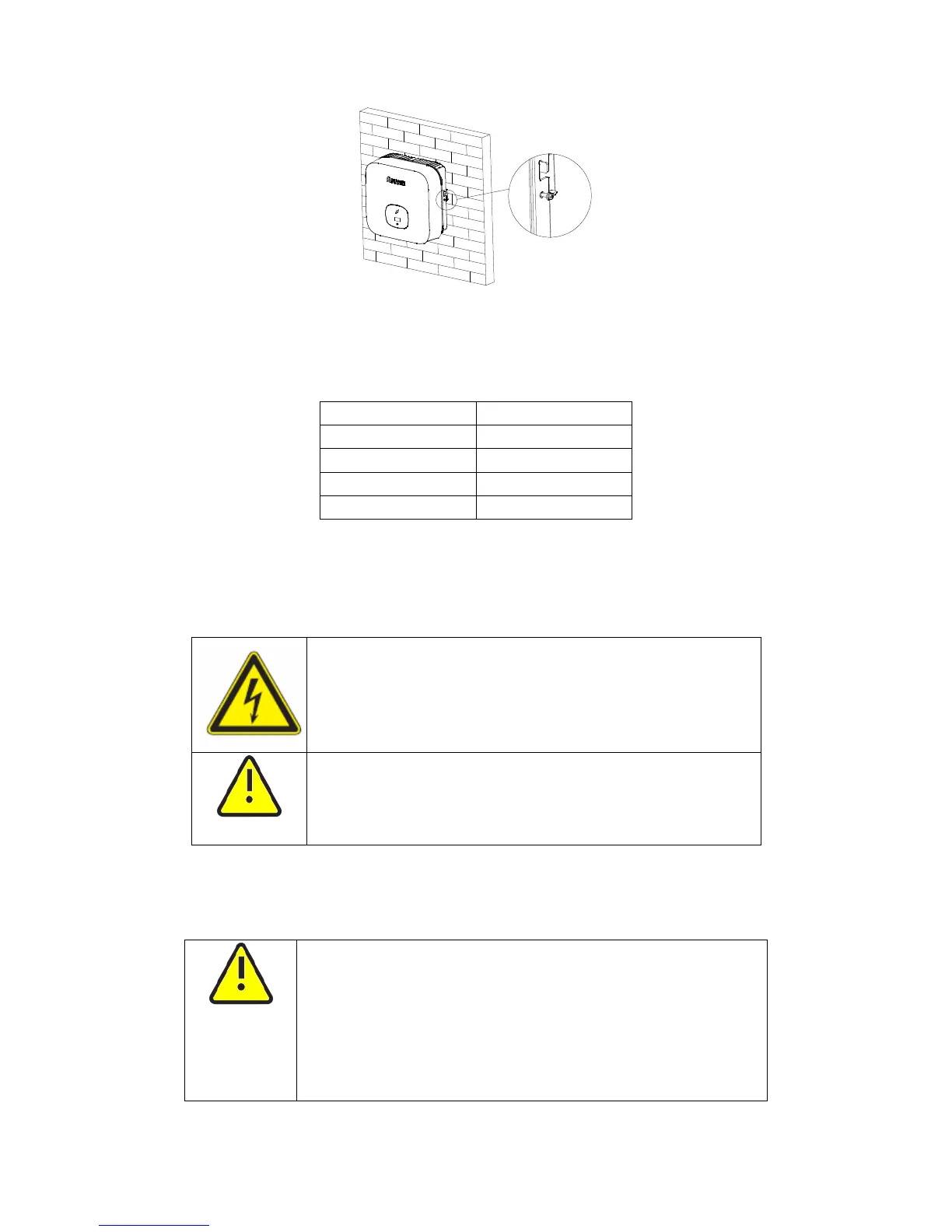

Growatt MIN 2500TL-X User Manual

24
6 Electrical connection
Decisive Voltage Class (DVC) indicated for ports
Port Name
Class
AC
C
DC
C
DRMS
A
RS485&RS232
A
.
6.1 Safety
Danger to life due to lethal voltages!
High voltages which may cause electric shocks are present in the
conductive parts of the inverter. Prior to performing any work on the
inverter, disconnect the inverter on the AC and DC sides
WARNING
Danger of damage to electronic components due to electrostatic discharge.
Take appropriate ESD precautions when replacing and installing the
inverter.
6.2 Wiring AC Output
WARNING
 You must install a separate single-phase circuit-breaker or other load
disconnection unit for each inverter in order to ensure that the inverter
can be safely disconnected under load.
NOTE :The inverter has the function of detecting residual current and
protecting the inverter against residual current. If your inverter has to equip
a AC breaker which has the function of detecting residual current ,you must
choose a AC breaker with the rating residual current more than 300mA.
You must install a separate single-phase circuit-breaker or other load disconnection

Growatt MIN 2500TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	2500 W
Output current	13.3 A
DC input voltage	500 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 500 V
Output power capacity (max)	- kVA
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Operating temperature (T-T)	-25 - 60 °C
Wi-Fi	Yes
Display technology	OLED

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
