Growatt MIN 2500TL-X User Manual

30
voltage of the inverter.
WARNING
Improper operation during the wiring process can cause fatal injury to operator or
unrecoverable damage to the inverter. Only qualified personnel can perform the
wiring work.
Please don’t connect PV array positive or negative pole to the ground, it could
cause serious damages to the inverter
Check the connection cables of the PV modules for correct polarity and make
sure that the maximum input voltage of the inverter is not exceeded.

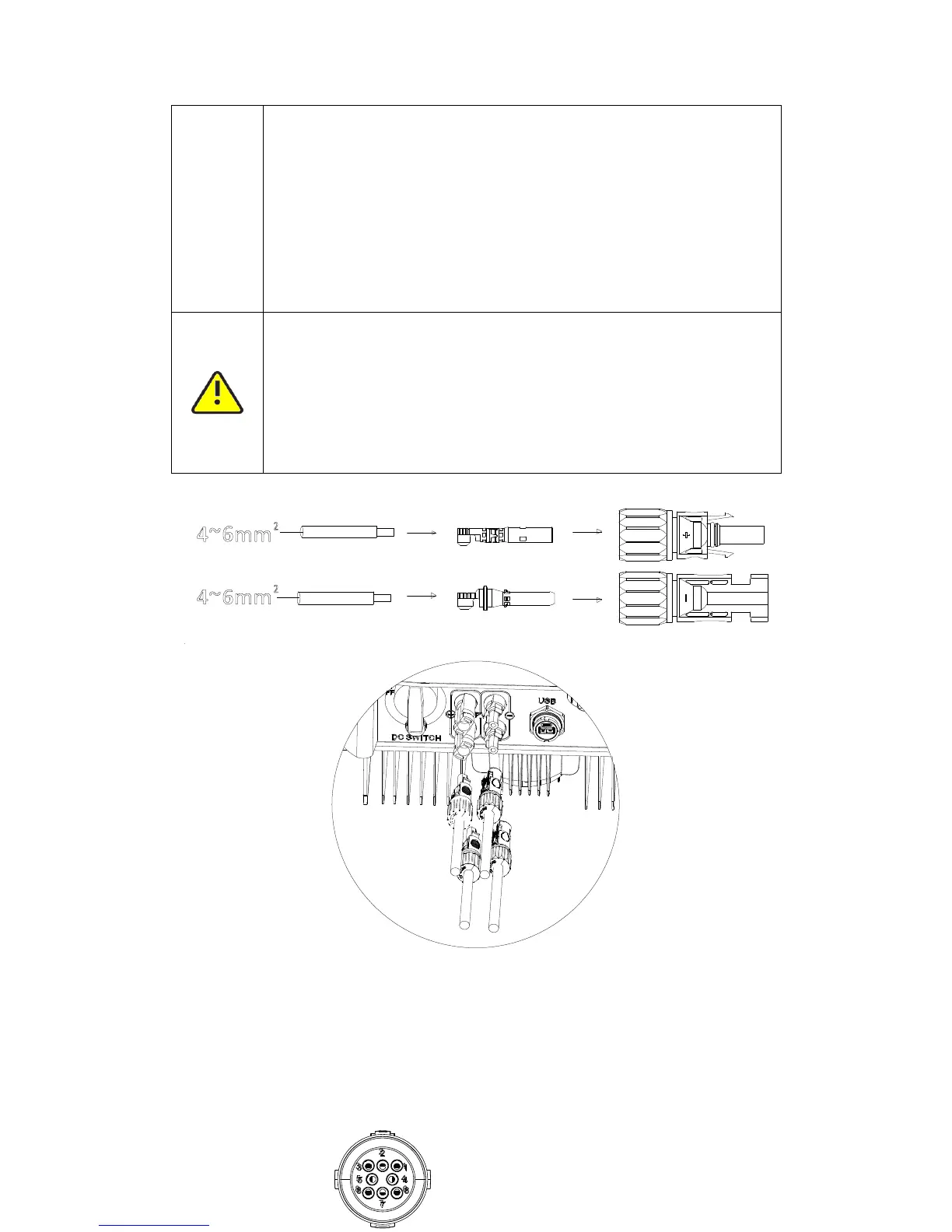

Connection of PV terminal
6.5 Connecting signal cable
This series inverter has one 8 Pin signal connector(There are two connectors for
AS/NZS4777 model ) . Signal Cable Ports:

Growatt MIN 2500TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	2500 W
Output current	13.3 A
DC input voltage	500 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 500 V
Output power capacity (max)	- kVA
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Operating temperature (T-T)	-25 - 60 °C
Wi-Fi	Yes
Display technology	OLED

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
