Growatt MIN 2500TL-X User Manual

9
2 Safety
2.1 Intended Use
The unit converts the DC current generated by the photovoltaic (PV) modules to grid-compliant
alternating current and performs single-phase feed-in into the electricity grid.MIN
2500TL-X,MIN 3000TL-X,MIN 3600TL-X,MIN 4200TL-X,MIN 4600TL-X,MIN 5000TL-X
inverters are built according to all required safety rules. Nevertheless, improper use may cause
lethal hazards for the operator or third parties, or may result in damage to the units and other
property.

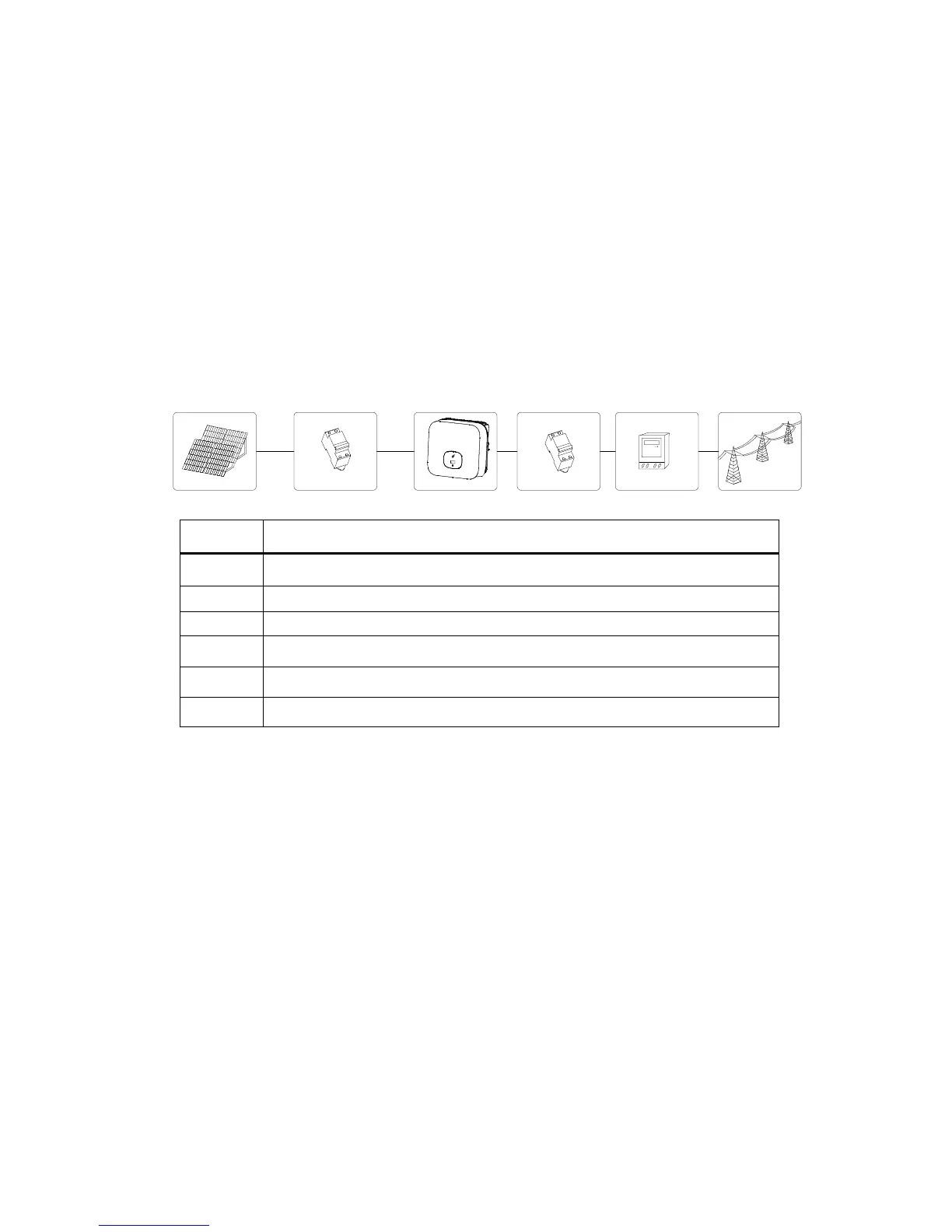

Principle of a PV plant with this MIN TL-X single-phase inverter
Position
Description
A
PV modules
B
DC load circuit breaker
C
Inverter
D
AC load circuit breaker
E
Energy meter
F
Utility grid
The inverter may only be operated with a permanent connection to the public power grid. The
inverter is not intended for mobile use. Any other or additional use is not considered the intended
use. The manufacturer/supplier is not liable for damage caused by such unintended use. Damage
caused by such unintended use is at the sole risk of the operator.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with cells on a
metallic substrate, may only be used if their coupling capacity does not exceed 1uF. During
feed-in operation, a leakage current flows from the cells to earth, the size of which depends on the
manner in which the PV modules are installed (e.g. foil on metal roof) and on the weather (rain,
snow). This "normal" leakage current may not exceed 50mA due to the fact that the inverter would
otherwise automatically disconnect from the electricity grid as a protective measure.
2.2 Qualification of skilled person
This grid-tied inverter system operates only when properly connected to the AC distribution
network. Before connecting the MIN TL-X to the power distribution grid, contact the local power

Growatt MIN 2500TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	2500 W
Output current	13.3 A
DC input voltage	500 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 500 V
Output power capacity (max)	- kVA
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Operating temperature (T-T)	-25 - 60 °C
Wi-Fi	Yes
Display technology	OLED

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
