3. Machine Components
2000 Series Unloading System Components

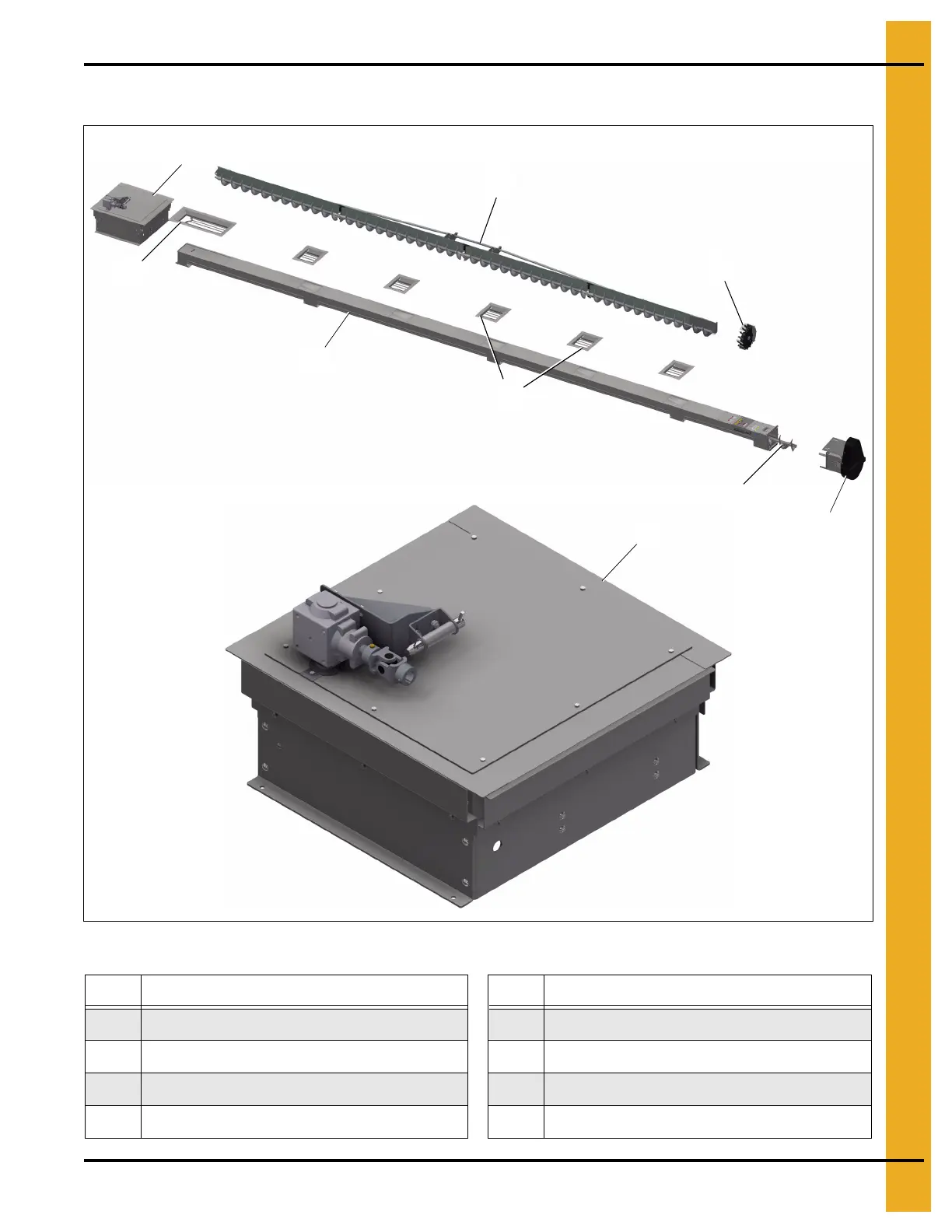

Figure 3A 2000 Series Unloading System Components
Ref # Description Ref # Description
12 Direct Sweep Drive 16 U-Trough Unloader
13 Center Floor Flange
17 Intermediate Floor Flange
14 Sweep Assembly (See detailed views Page 15.) 18 Unloader Flight
15 Elevator Drive Wheel Assembly
19 Powerhead
