GSi 2000 Series User Manual

8. Dimensions
PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 53

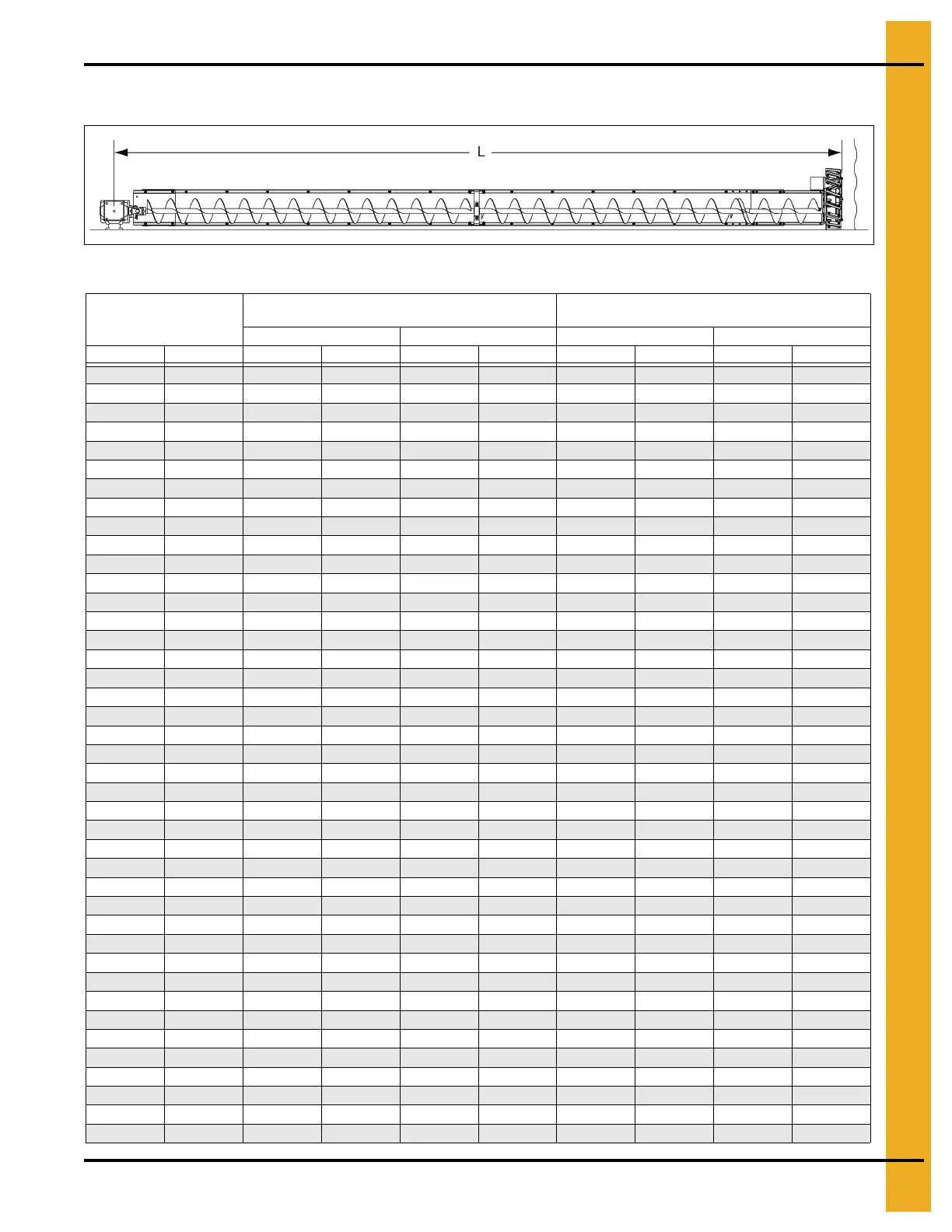

Sweep Dimensions
Figure 8E Side View
Nominal Bin
Diameter
Sweep Length (L)
Bin Diameter Range Allowing 4-1/2" (114 mm)
Clearance Between Sweep and Bin Wall
Minimum Maximum Minimum Maximum
Ft. M Inches MM Inches MM Ft. M Ft. M
18.0 5.5 97.5 2477 106.5 2705 17.1 5.2 18.5 5.6
19.5 5.9 106.5 2705 115.5 2934 18.6 5.7 20.0 6.1
21.0 6.4 115.5 2934 124.5 3162 20.1 6.1 21.5 6.6
22.5 6.9 124.5 3162 133.5 3391 21.6 6.6 23.0 7.0
24.0 7.3 133.5 3391 142.5 3620 23.1 7.0 24.5 7.5
25.5 7.8 142.5 3620 151.5 3848 24.6 7.5 26.0 7.9
27.0 8.2 151.5 3848 160.5 4077 26.1 8.0 27.5 8.4
28.5 8.7 160.5 4077 169.5 4305 27.6 8.4 29.0 8.8
30.0 9.1 169.5 4305 178.5 4534 29.1 8.9 30.5 9.3
31.5 9.6 178.5 4534 187.5 4763 30.6 9.3 32.0 9.8
33.0 10.1 187.5 4763 196.5 4991 32.1 9.8 33.5 10.2
34.5 10.5 196.5 4991 205.5 5220 33.6 10.2 35.0 10.7
36.0 11.0 205.5 5220 214.5 5448 35.1 10.7 36.5 11.1
37.5 11.4 214.5 5448 223.5 5677 36.6 11.2 38.0 11.6
39.0 11.9 223.5 5677 232.5 5906 38.1 11.6 39.5 12.0
40.5 12.3 232.5 5906 241.5 6134 39.6 12.1 41.0 12.5
42.0 12.8 241.5 6134 250.5 6363 41.1 12.5 42.5 13.0
43.5 13.3 250.5 6363 259.5 6591 42.6 13.0 44.0 13.4
45.0 13.7 259.5 6591 268.5 6820 44.1 13.4 45.5 13.9
46.5 14.2 268.5 6820 277.5 7049 45.6 13.9 47.0 14.3
48.0 14.6 277.5 7049 286.5 7277 47.1 14.4 48.5 14.8
49.5 15.1 286.5 7277 295.5 7506 48.6 14.8 50.0 15.2
51.0 15.5 295.5 7506 304.5 7734 50.1 15.3 51.5 15.7
52.5 16.0 304.5 7734 313.5 7963 51.6 15.7 53.0 16.2
54.0 16.5 313.5 7963 322.5 8192 53.1 16.2 54.5 16.6
55.5 16.9 322.5 8192 331.5 8420 54.6 16.6 56.0 17.1
57.0 17.4 331.5 8420 340.5 8649 56.1 17.1 57.5 17.5
58.5 17.8 340.5 8649 349.5 8877 57.6 17.6 59.0 18.0
60.0 18.3 349.5 8877 358.5 9106 59.1 18.0 60.5 18.4
61.5 18.7 358.5 9106 367.5 9335 60.6 18.5 62.0 18.9
63.0 19.2 367.5 9335 376.5 9563 62.1 18.9 63.5 19.4
64.5 19.7 376.5 9563 385.5 9792 63.6 19.4 65.0 19.8
66.0 20.1 385.5 9792 394.5 10020 65.1 19.8 66.5 20.3
67.5 20.6 394.5 10020 403.5 10249 66.6 20.3 68.0 20.7
69.0 21.0 403.5 10249 412.5 10478 68.1 20.8 69.5 21.2
70.5 21.5 412.5 10478 421.5 10706 69.6 21.2 71.0 21.6
72.0 21.9 421.5 10706 430.5 10935 71.1 21.7 72.5 22.1
73.5 22.4 430.5 10935 439.5 11163 72.6 22.1 74.0 22.6
75.0 22.9 439.5 11163 448.5 11392 74.1 22.6 75.5 23.0
76.5 23.3 448.5 11392 457.5 11621 75.6 23.0 77.0 23.5
78.0 23.8 457.5 11621 466.5 11849 77.1 23.5 78.5 23.9
