4. Installation
18 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')
Unloaders Under Aeration Floor
1. Cut 12" (H) x 14" (W) (305 mm x 356 mm) rough opening (33) in the bin wall where the unloader is
to exit the bin. (See Figure 4C.)

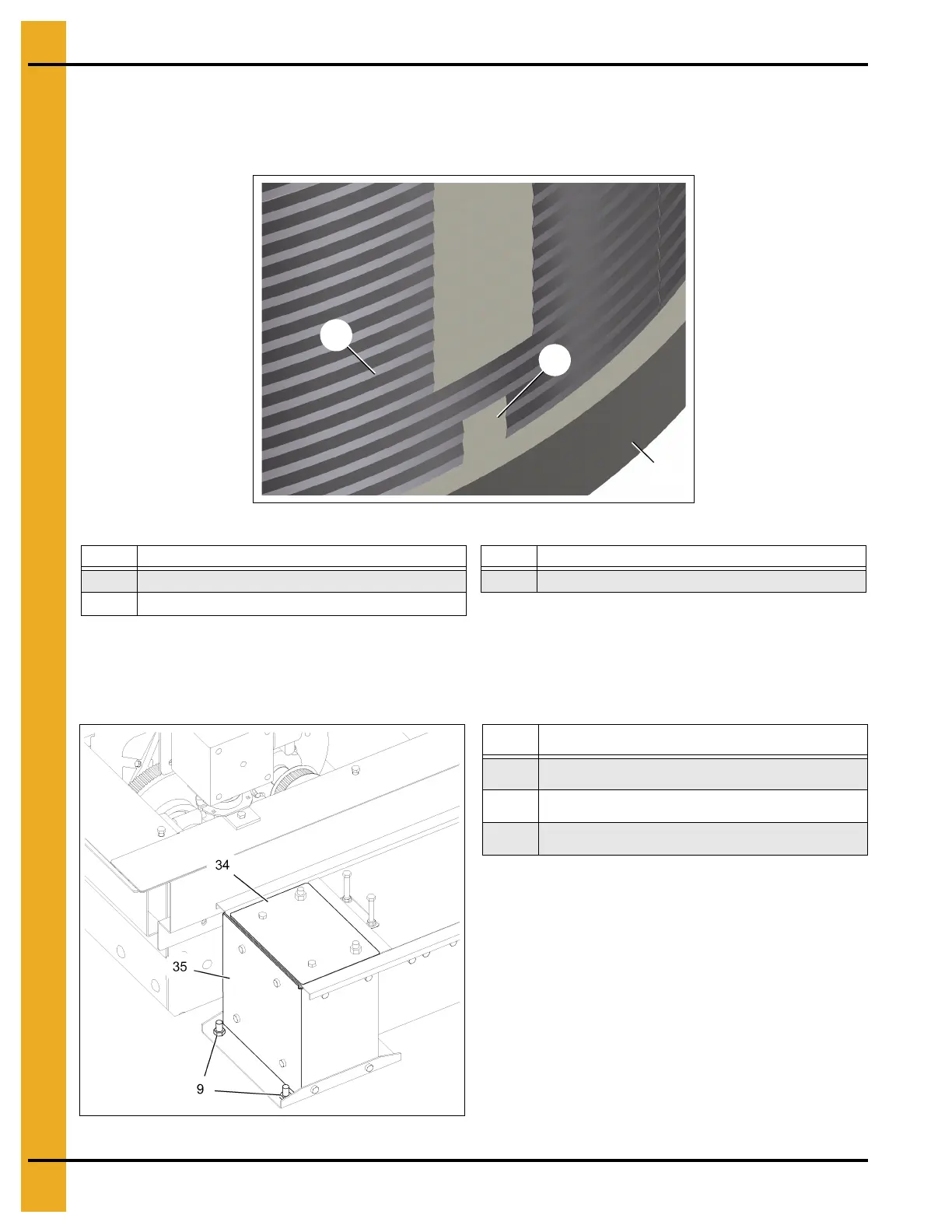

Figure 4C
2. Install the U-trough with the centerline offset from the bin centerline by 15", and the rear face (35)
of the U-trough 1-1/2" from the center drive side. Refer to drawing on Page 52. The “Center in
Bin” sticker found on the dust cover (34) should be disregarded. Secure the unloader with anchor
bolts (9) (not provided) to the bin foundation. (See Figure 4D.)
Figure 4D
Ref # Description Ref # Description
31 Bin Wall Exterior 33 Rough Opening (shown below the door opening)
32 Bin Foundation
31
32
33
Ref # Description
9 Concrete Anchor Bolts
34 Dust Cover
35 Rear Face
