4. Installation

PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 23

Steady Bearing

Center Gearbox Assembly

1. Remove the hardware securing the dust cover (34) and remove the dust cover (34). Keep the

hardware for re-use. The dust cover (34) can be discarded. (See Figure 4P.)

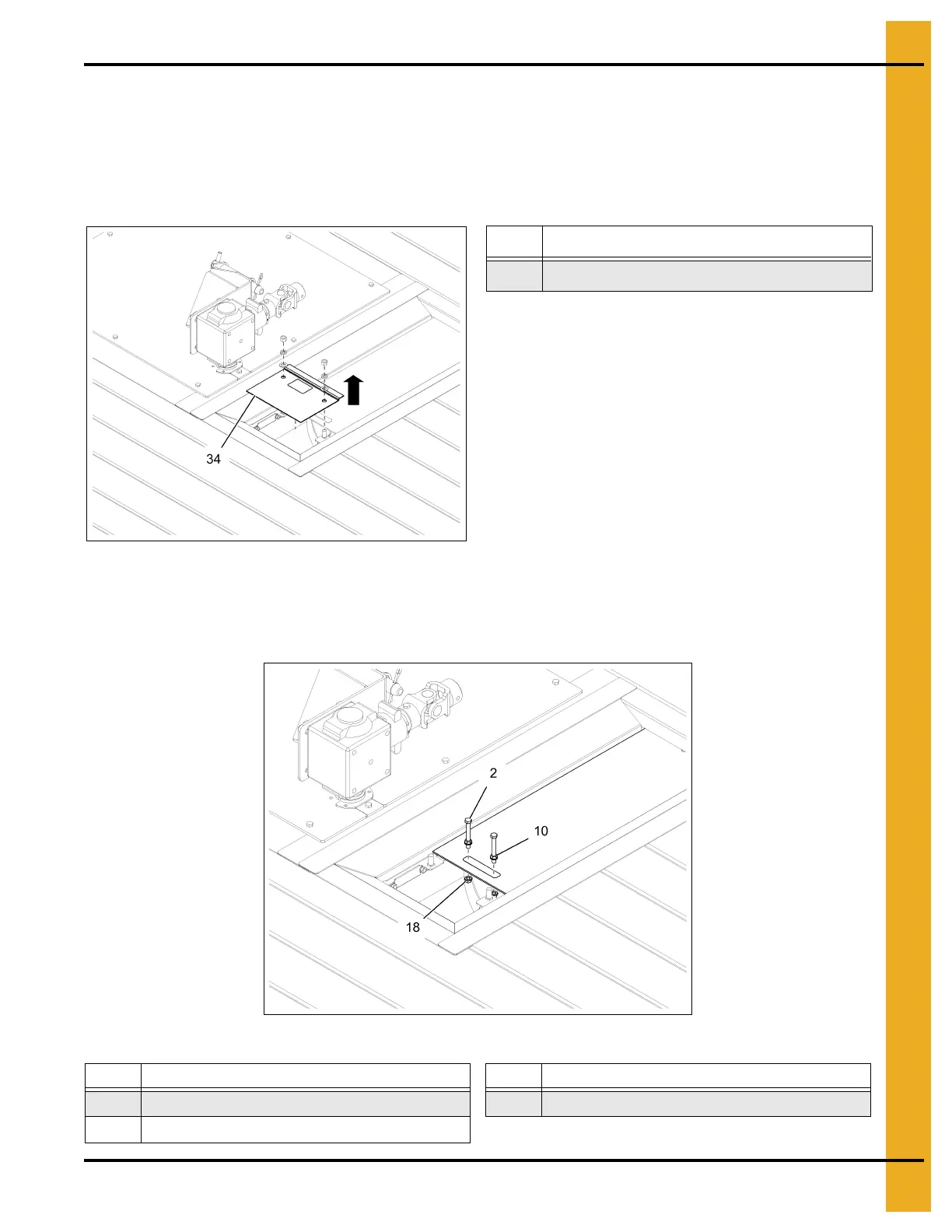

Figure 4P

2. Install the gate clearing bolts in holes in the center gate. The holes are covered by the blue sticker.

In the hardware kit, you will find bolts with one flange nut already threaded (10) on to the correct depth.

(See Figure 4Q.)

Figure 4Q

Ref # Description

34 Dust Cover

Ref # Description Ref # Description

2 3/8" x 3" Bolt Grade 5 UNC Plated (2) 18 1/2" Serrated Flange Nut (4)

10 Bolt with Pre-Threaded Nut
