48 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')

8. Dimensions

Overall System Lengths

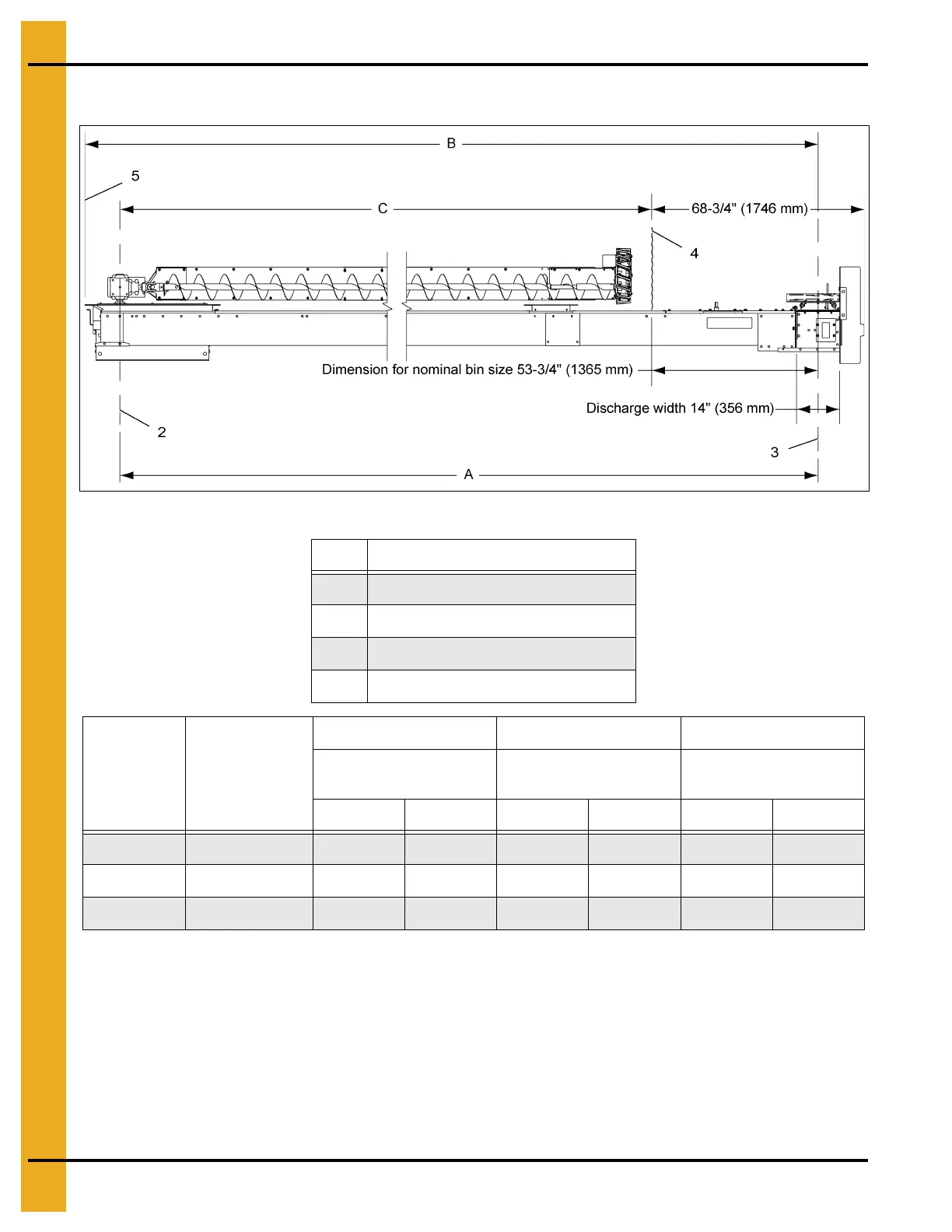

Figure 8A

Ref # Description

2 Center of the Bin

3 Center of the Discharge

4 Bin Wall

5 Extent of Floor Flange and Drive Flange

Nominal Bin

Diameter

# of

Intermediate

Gates

ABC

Center of Bin to

Center of Discharge

Unloader

Overall Length

Nominal Bin

Radius

Inches mm Inches mm Inches mm

72' 5 485.875 12341 497.375 12633 432 10973

75' 5 503.875 12798 515.375 13091 450 11430

78' 5 521.875 13256 533.375 13548 468 11887
