GSi 2000 Series User Manual

4. Installation
PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 25
Sweeps

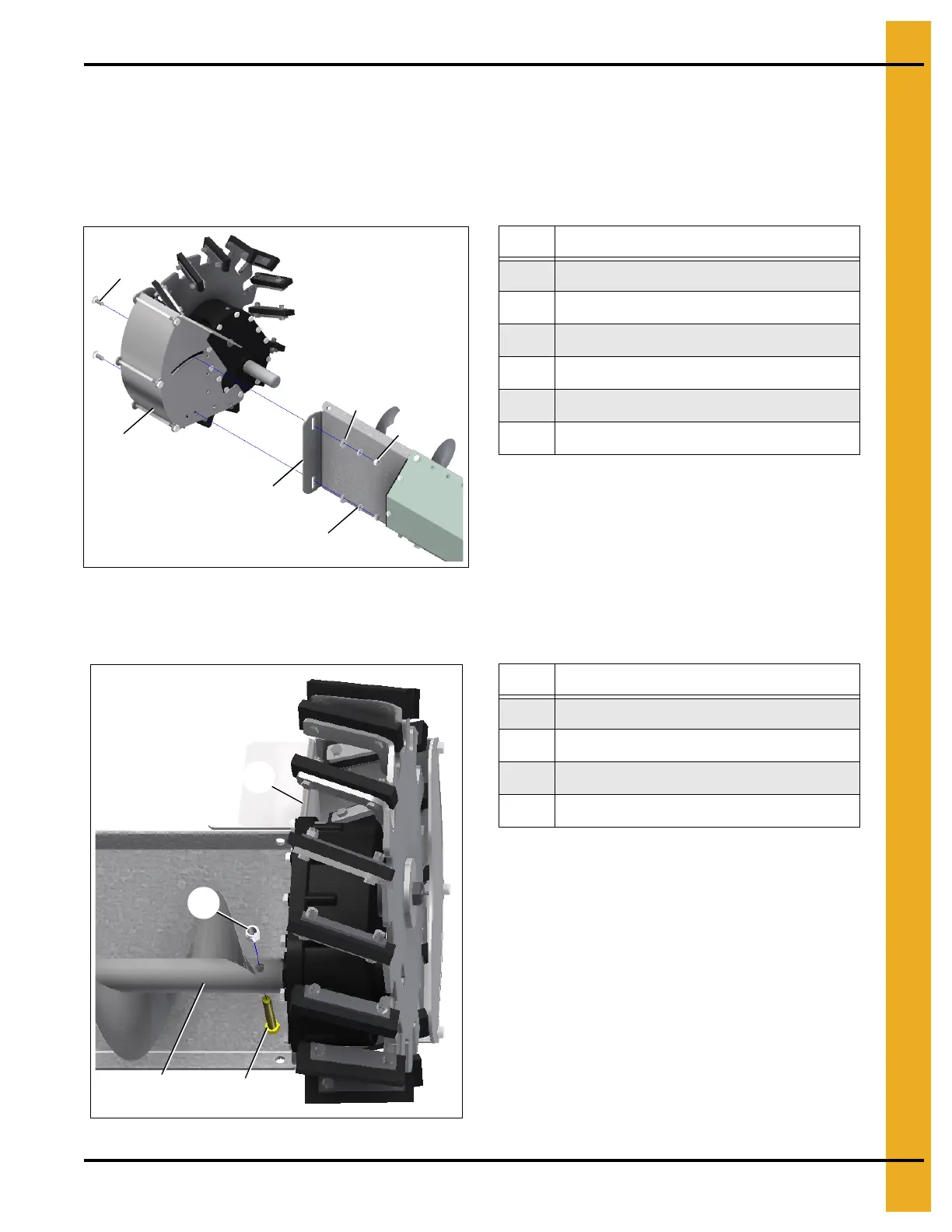

Installing the Elevator Wheel Assembly
1. Install the elevator wheel assembly (51) to the end of the sweep backplate (52) using 3/8" x 1"
carriage bolt (6), 3/8" flat washer (22), 3/8" lock washer (23) and 3/8" hex nut (15). (See Figure 4T.)
Figure 4T
2. Install the sweep end flight (53) onto the elevator wheel assembly (51) shaft using 3/8" x 2-1/2"
bolt (4) and 3/8" lock nut (16). (See Figure 4U.)
Figure 4U
6
22
15
23
52
51
Ref # Description
6 3/8" x 1" Carriage Bolt (2)
15 3/8" Hex Nut (2)
22 3/8" Flat Washer (2)
23 3/8" Lock Washer (2)
51 Elevator Drive Wheel Assembly
52 Sweep Backplate
16
53
51
4
Ref # Description
4 3/8" x 2-1/2" Bolt (1)
16 3/8" Lock Nut (1)
51 Elevator Drive Wheel Assembly
53 Sweep End Flight
