24
Inst
allation
3.4.4
Wiring for 24 VDC pow
er at the controller
Important No
te:
The AC power outlets canno
t be used with the 24 VDC power supply
.

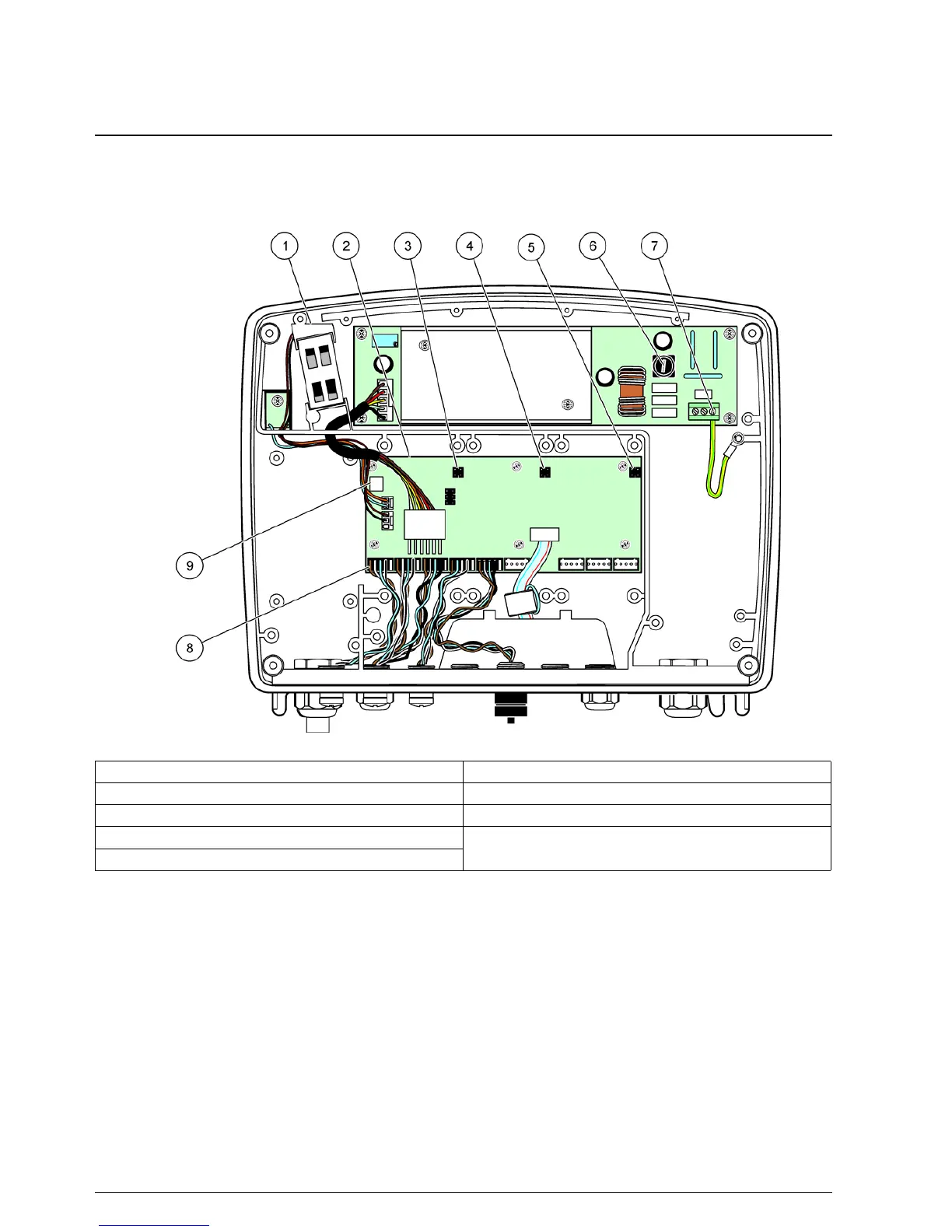

Figure
15 I
nside the 24
VDC prob
e module
1
Fan
6
Fuse, T 6.3A, slow-blow
2
Main circuit board
7
24 VDC power connections
3
Connector for expansion slot
8
Probe connections
4
Connector for expansion slot
9
Relay card connection
5
Connector for expansion slot
25
27
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1 Specifications
7
Specifications
8
Section 2 General Information
11
Safety Information
11
Use of Hazard Information
11
Precautionary Labels
12
General Product Information
12
Controller Storage
12
Section 3 Installation
13
Mechanical Installation
13
Controller Dimensions
14
Mounting the Controller
15
Wall Mounting
15
Vertical or Horizontal Pipe Mounting
16
Panel Mounting
16
Sun-Shield
16
Wiring Safety Information
16
Electrostatic Discharge (ESD) Considerations
17
Electrical Installation
18
Installation in Hard-Wired Applications
18
Installation Using a Power Cord
19
Wiring for AC Power at the Controller
22
Wiring for 24 VDC Power at the Controller
26
DIN Rail Expansion Modules
28
Expansion Cards
29
Relay Card Connections
30
Input Card Connections
33
Output Card Connections
35
Modbus Card Connections
36
Profibus DP Card Connections
37
Remove/Replace an Expansion Card
39
Install an Sc1000 Network (Sc1000 Bus Connection)
39
Sc1000 Network Connections
40
Connect Probes to the Sc1000 Controller
45
Connect the Probe Data Cable
45
Add Probe Connections
46
Connect AC Powered Sc Probes
46
Service Port Connection (LAN Connection)
46
GSM Modem Connection
47
Safety Precautions
47
SIM Card Requirements
48
Insert the SIM Card into the Display Module
49
Connect the External GSM Antenna to the Display Module
50
Storage Card (SD Card)
51
Insert the Storage Card into the Display Module
51
Prepare the Storage Card
52
Section 4 System Start up
53
Section 5 Standard Operations
55
The Display Module
55
Attach the Display Module to the Probe Module
55
Tips for the Use of the Touch Screen
56
The Display Modes
56
Table of Contents
57
The Measured Value Display
57
Daily and Weekly Trend Lines
58
Configure the Measured Value Display
58
The Graph Display
58
The Main Menu Display
60
The Alphanumeric Keypad
61
Calibrate the Touch Screen
61
Specify the Displayed Language
61
Set the Time and Date
62
Set up System Security (Passcode Protection)
62
Set the Passcode
62
Add and Remove Favorites
63
Add New Components
63
Configure the Network Modules (Profibus/Modbus Cards)
64
Configure the Profibus/Modbus Card
64
Error and Status Register
66
Profibus/Modbus Configuration Example
68
Remote Control
69
Prepare the LAN Connection
69
Set up the LAN Connection
69
Set up the Dial-Up Connection
70
Access the Sc1000 Controller through a Web Browser
72
Log Data
73
Save Log Files to the Storage Card
73
Save Log Files through Browser Access
73
Remove Log Files through Browser Access
74
Formula Editor for Output and Relay Card
75
Add a Formula
75
Add a Formula with Measurement Values from Other Probes
76
Formula Operations
76
Section 6 Advanced Operations
79
Sensor Status Menu
79
Sensor Setup Menu
79
System Setup Menu
80
Output Setup Menu
80
Current Inputs Menu
85
Relay Menu
89
General Relay Settings (Available in All Relay Working Modes)
89
Function Set to ALARM Working Mode
90
Function Set to FEEDER CONTROL Working Mode
92
Function Set to 2 POINT CONTROL Working Mode
95
Function Set to WARNING Working Mode
99
Function Set to PWM CONTROL/LINEAR Working Mode
101
Function Set to PWM CONTROL/PID CONTROL Working Mode
104
Function Set to FREQ. Control / Linear Working Mode
105
Function Set to FREQ. Control/Pid CONTROL Mode
107
Function Set to TIMER Working Mode
108
Function Set to SYSTEM ERROR Working Mode
110
Network Modules (Profibus, Modbus)
111
Profibus
111
Modbus
113
GSM Module
115
Device Management
117
Display Settings
117
Browser Access
118
Storage Card
118
Security Setup
119
Test/Maint Menu
119
Bus Status
120
Section 7 Maintenance
121
General Maintenance
121
Fuse Replacement
121
Section 8 Troubleshooting
123
General Problems and GSM Module Errors
123
GSM Module Errors
124
Error and Warning Messages
124
Message Type
124
Message Format
125
Error and Warning ID Numbers
125
SMS Service
126
Configure SMS Destination
126
SMS Format
126
Troubleshooting
127
Test the Expansion Cards in the Maintenance Menu
128
Test the Output Card
128
Test the Input Card
129
Test the Relay Card
130
Section 9 Replacement Parts and Accessories
131
Expansion Cards
131
External DIN Rail Modules
131
Internal Network Components
131
Accessories
131
Replacement Parts
132
Replacement Parts and Accessories
133
Exploded View Drawings
134
Section 10 Contact Information
139
Section 11 Certification
141
Appendix A DIN Rail Expansion Modules
143
