55
Standard Operations
5.2 The measured value display
The measured value display shows up to 4 measured values simultaneously or a list of
up to ten lines. The values to be displayed are selected from the measured value display
list and can be provided by sc probes, relay status, mA output values or input (mA or
digital) values. To view other values than those visible on the screen, use the scroll
UP
and
DOWN buttons on the pop-up toolbar. In normal operation the display module
displays the measured value from a connected and selected probe.
To view several measured values:
1. Tap the bottom-left of the screen to display the pop-up toolbar.
2. On the pop-up toolbar press
1, 2 or 4. To view more than 4 values simultaneously,
press
LIST (Figure 39).

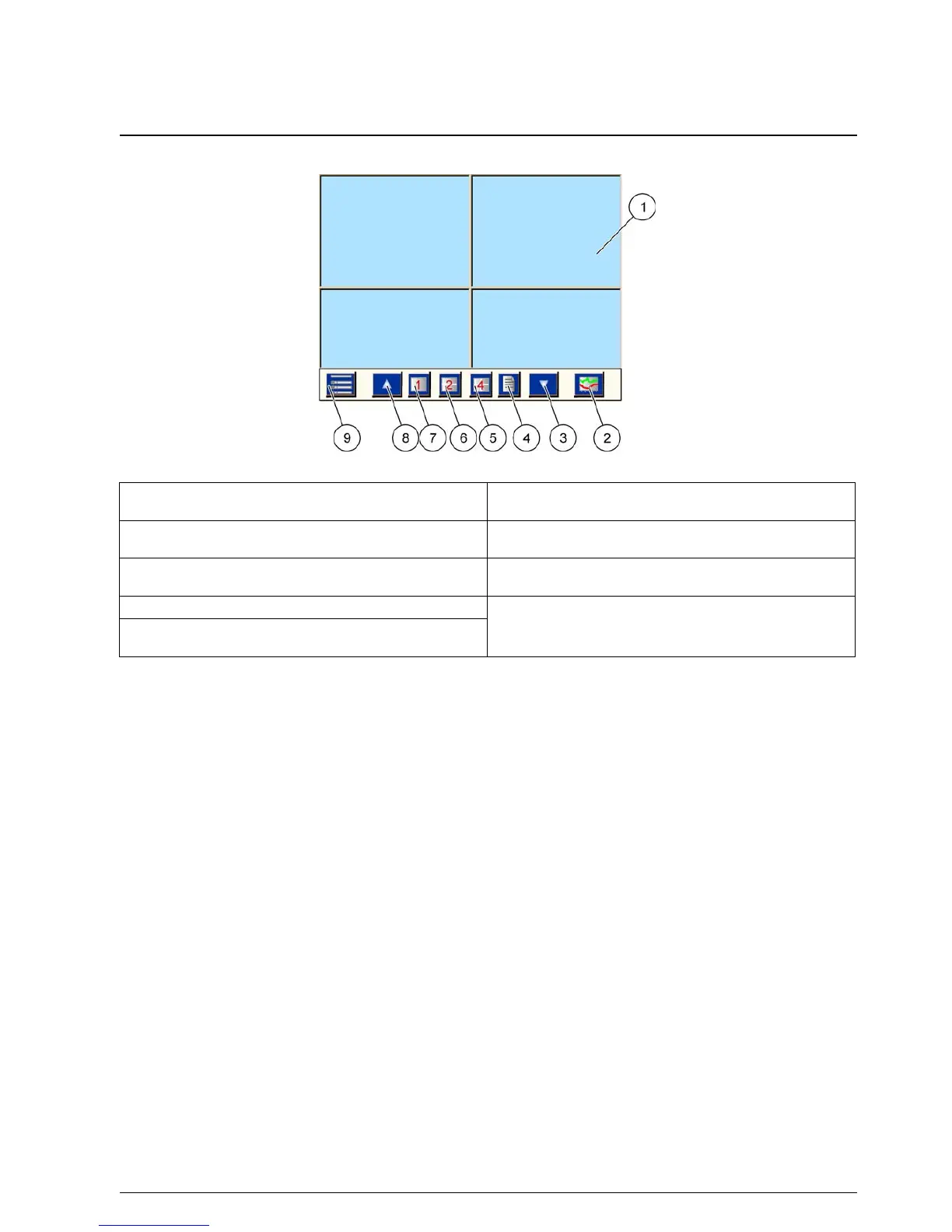

Figure 39 Measured value display with pop-up toolbar
1 Measured value display—Displays up to 4 measured
values
62—Displays two measured values in the measurement
value and graph display
2
GRAPH button—Displays 1, 2 or 4 measured values as
graphs
71—Displays one measured value in the measurement
value and graph display.
3
DOWN arrow—Scrolls down to the previous measured
value.
8 UP arrow—Scrolls up to the next measured value.
4LIST button—Displays up to ten values. 9
MAIN MENU button—Displays the Main menu.
54—Displays four measured values in the measurement
value and graph display.
