27
Installation
3.6 Expansion cards
The sc1000 controller can be expanded with internal plug-in expansion cards. Each
expansion component can be identified with its serial number on the sc1000 network and
programmed as required. The serial number is located on the card.
It may be necessary to remove an existing expansion card, if the expansion card is
blocking access to certain connectors. Refer to section 3.6.6 on page 37 for more
information.
When an instrument is ordered, it comes pre-installed with the appropriate plug-in
expansion cards. The following options can be connected:
• Relay card with 4 relays
• Digital field-bus cards (Modbus (RS485), Modbus (RS232), Profibus DP)
• mA output card with 4 outputs
• mA input card with 4 inputs (analog or digital)
• sc-probe connectors

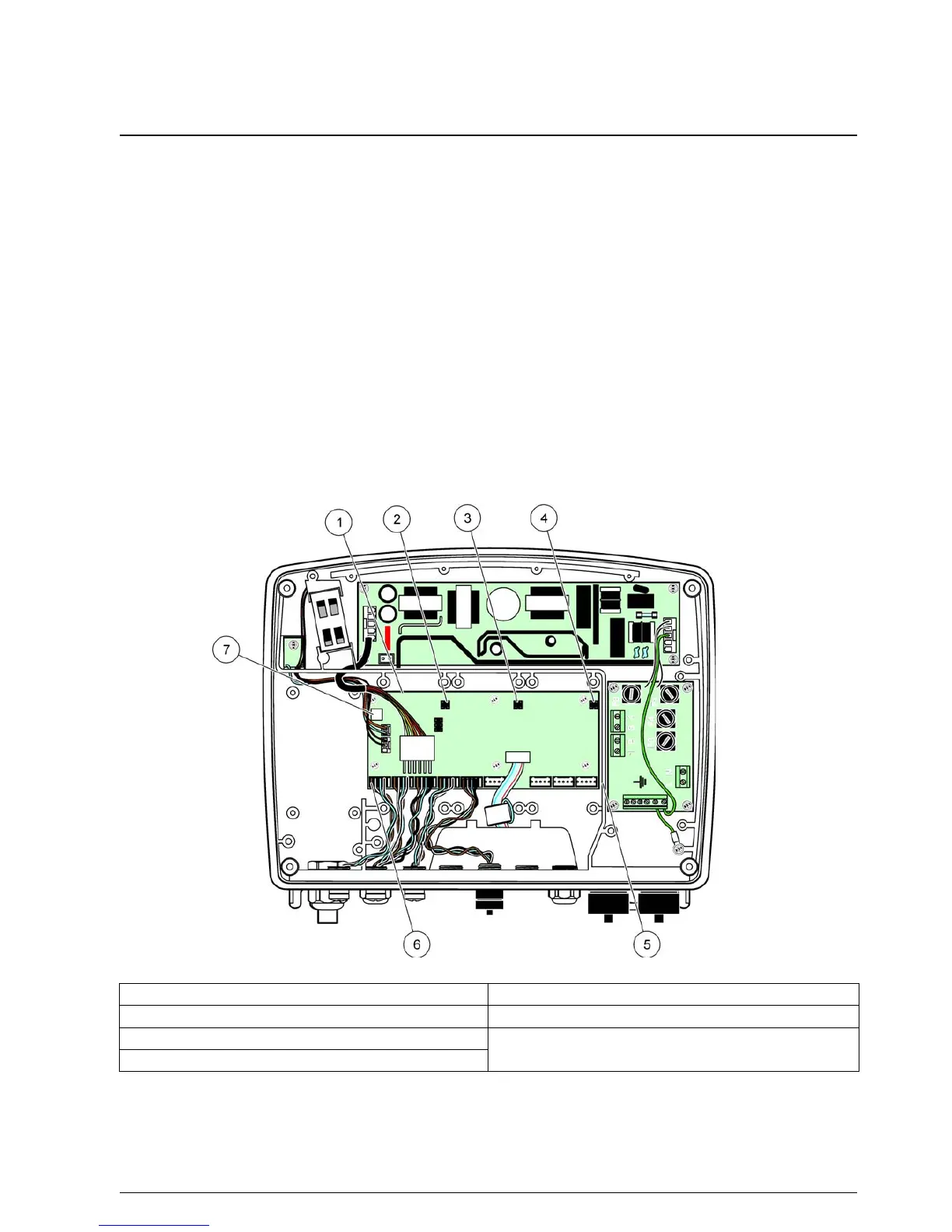

Figure 17 Expansion card main circuit board connections
1 Main circuit card 5 Mounting holes, input cards (4 each)
2 Connector for expansion slot #2 6 sc probe connections
3 Connector for expansion slot #3 7 Relay card connection
4 Connector for expansion slot #4
