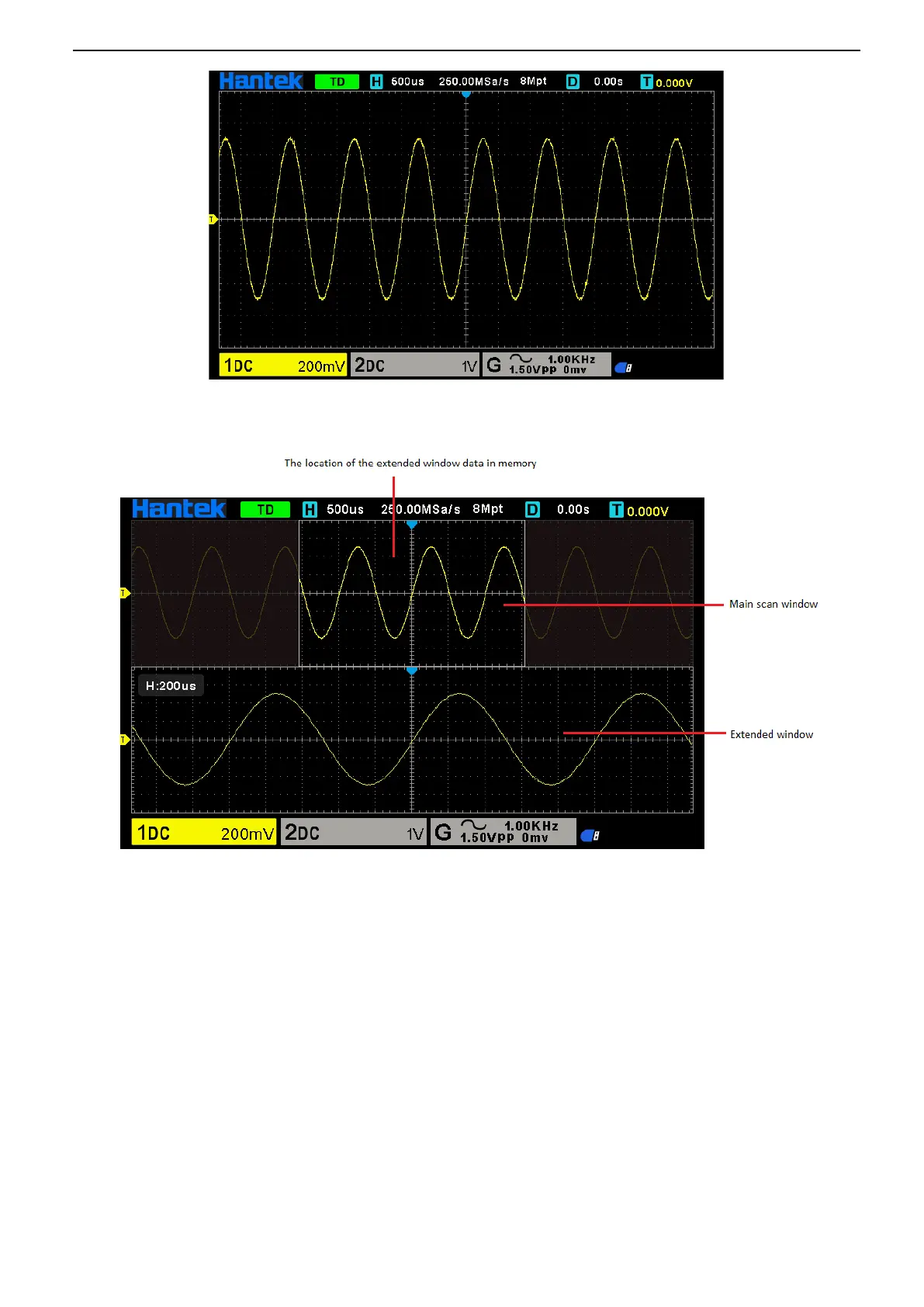

Dual-window Mode
3. Waveform Generator
The series oscilloscope is equipped with waveform generator function, with one channel of arbitrary
waveform output. User can edit the arbitrary waveform or choose the regular waveform such as Sine,
Ramp, Square, Exponent, Noise, DC and Arb waveform.
3.1. Set Wave Type and Parameters
1. Press the [Wave Gen] button on the front panel to open the arbitrary waveform generator function.
2. Press the Wave softkey; then turn the Multifunctional Knob to select the desired waveform and
push down the knob to confirm. Press the Wave Type softkey continually can also select the waveform
