3 - Description
3.2

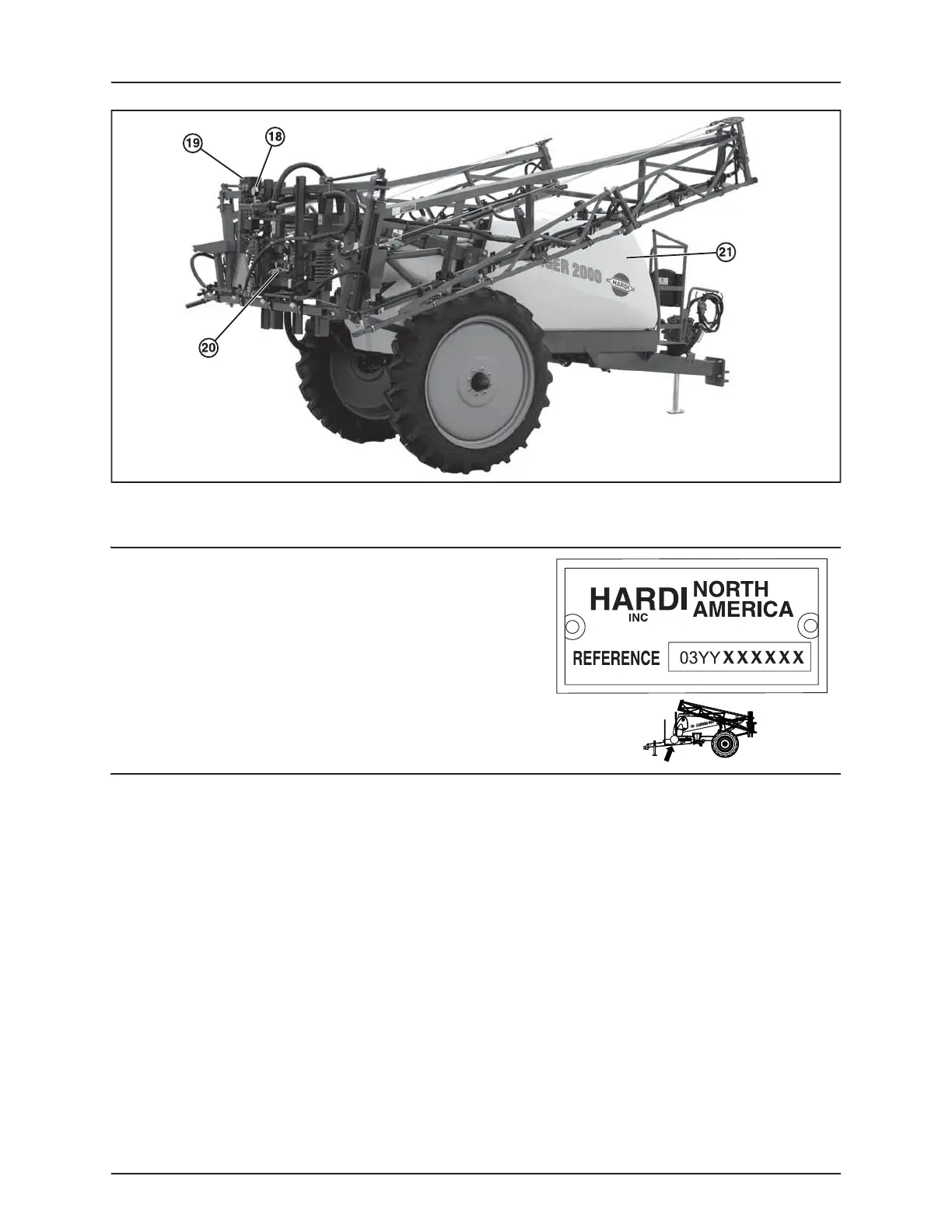

View
Identification plates
An identification plate fitted on the frame indicates year (YY) and
identification number (XXXXXX) of machine.
Frame, boom center frame and other main steel components have
identification plates indicating type and part number. (not illustrated)
Roadworthiness
When driving on public roads and other areas where the highway code applies, or areas where there are special rules and
regulations for marking and lights on implements, you should observe these and equip implements accordingly.
ATTENTION! Max. driving speed is 20 mph (35 km/h). Be aware that this may differ due to local law. Contact local
authorities for information of max. driving speeds.
18. System pressure gauge
19. Distribution valves
20. Hydraulic block
21. Main tank
