3 - Description
3.8
TurboFiller (optional equipment)

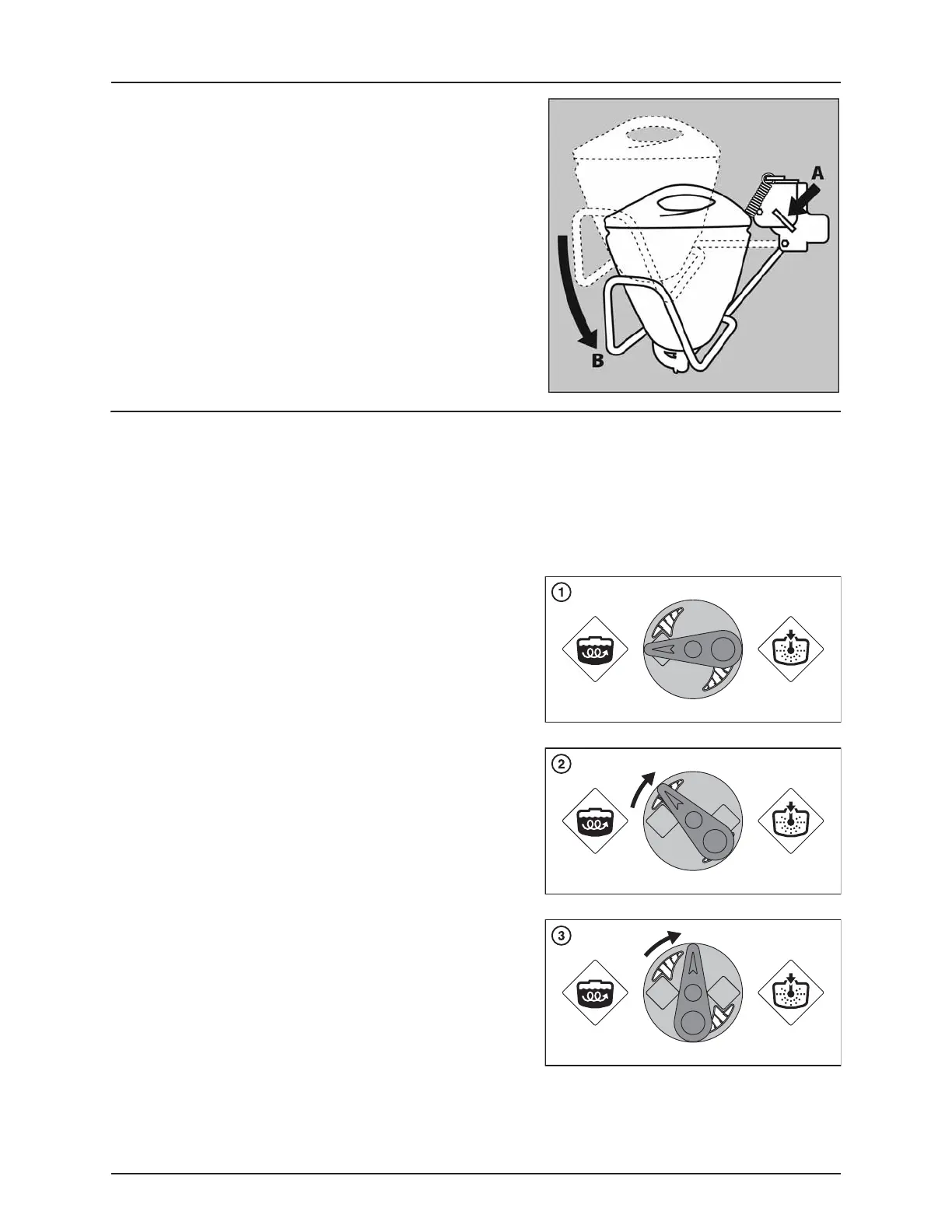

The TurboFiller is situated in the working zone on the sprayer’s left side.
When being used, it should be unlocked by pulling the handle (A)
(situated to the right of the TurboFiller) and pushed down (B) by
grabbing the handle on the TurboFiller until it clicks into the locked
down-position.
After use, the TurboFiller is retracted by unlocking the handle (A)
(situated to the right of the TurboFiller) and pulling it back up until it
clicks into the locked storing position.
±
WARNING! Before releasing the lock (A) always keep a hand on
the grip to avoid abrupt movement of the TurboFiller!
Agitation/Tank Rinse valve
The valve is marked with an arrow on the green disc that indicates the amount of liquid that passes through the valve. If
handle is turned to a position near the tip of the arrow, then only a small amount of liquid is allowed to pass the valve.
Otherwise, if handle is turned to a position in the wide end of the arrow, it means that a larger amount is passing the valve.
This gives the possibility to continuously adjust how much fluid from the pump is used for agitation/rinsing in the tank.
Examples on handle positions at different agitation quantities:
1. Handle is in the “widest end of arrow” position (full open).
Agitation quantity is 100%.
2. Handle is positioned at the middle of the arrow position. Agitation
quantity is 50%.
3. Handle is positioned in closed position. Agitation quantity is 0%.
