3 - Description
3.5

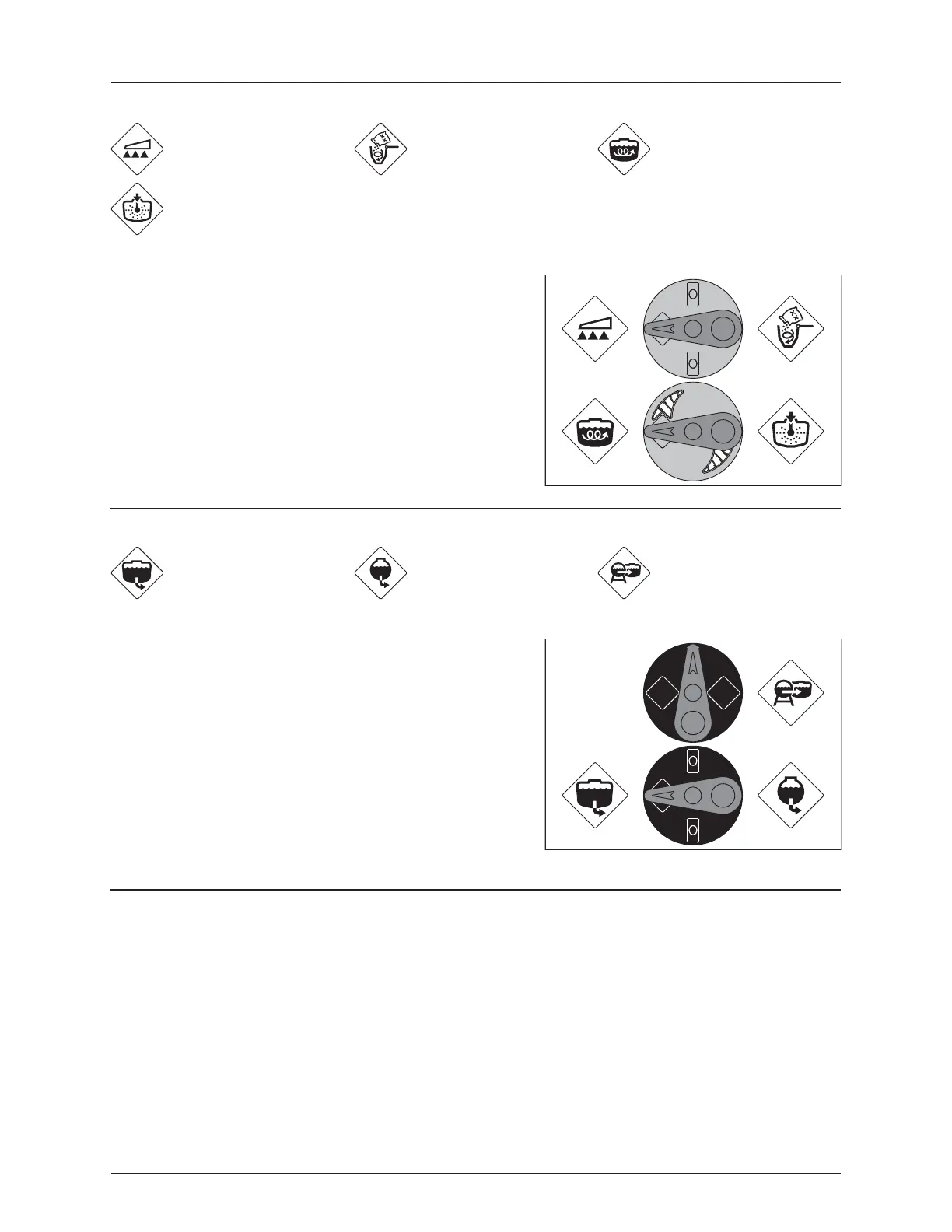

Green valves - Green disc = Pressure valve
The position of the pressure manifold valves determine the direction of
flow of liquid from the pump. When the arrow on the handle is pointing
towards a symbol, the liquid will flow to that symbol’s corresponding
device (i.e. TurboFiller). When the arrow on the handle is pointing
towards “O”, the valve is closed. If all the green pressure valves are closed
in a diaphragm pump system, the safety valve will open to allow liquid
to flow back to the tank.
The bottom pressure manifold valve is adjustable. The valve is marked
with an arrow on the green disc that indicates the amount of liquid that
passes through the valve. This allows for a continuously variable flow to
agitation or tank rinsing.
Black valves - Black disc = Suction valve
The position of the suction manifold valves determine the source of the
liquid. When the arrow on the handle is pointed towards a symbol, the
source of liquid correspond’s to that symbol’s device (i.e. Main tank)
When the arrow on the handle is pointing towards “O”, the valve is
closed.
Electrical operated MANIFOLD valves (optional equipment)
One or more MANIFOLD valve(s) can be electrically operated via a control box in the tractor cabin. These can only be
operated manually if the power to the valve motor is disconnected.
To Spray Boom To TurboFiller To Agitation
To Tank Rinsing Nozzle
From main tank From flush tank From Quick Fill
