5 - Operation
5.9

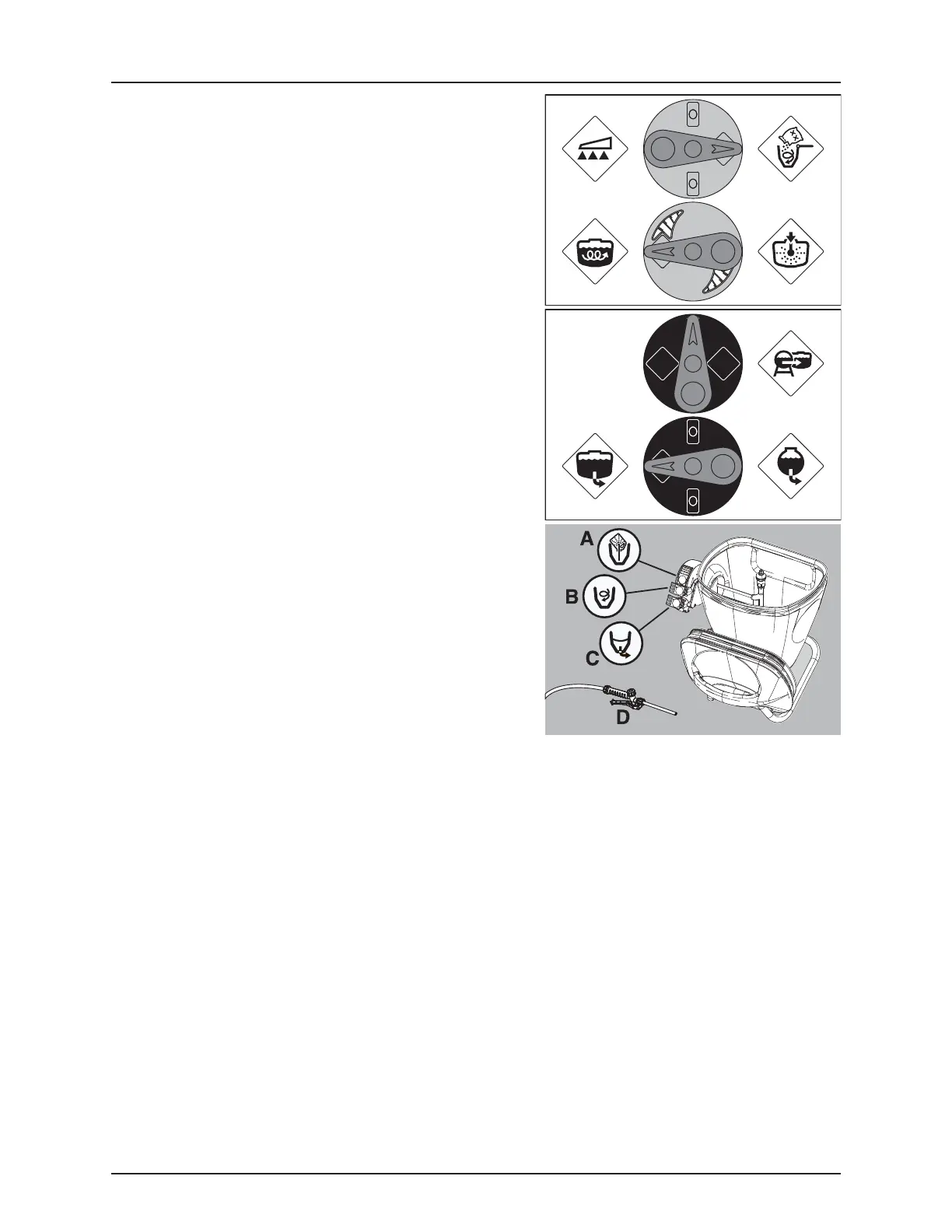

Filling Liquid chemicals by HARDI® TurboFiller (optional)
1. Fill the main tank at least 1/3 with water (unless something else is
stated on the chemical container label). See section “Filling of
water”.
2. Turn the handle at the bottom Suction Manifold towards “Main
tank”. Turn top Pressure Manifold valve towards “TurboFiller” and
the bottom Pressure Manifold valve towards “Agitation”. Close
remaining valves.
3. Engage pump and set to operating r.p.m. (540/1000).
4. Open TurboFiller lid.
5. Measure the correct quantity of chemical and fill it into the hopper.
6. Engage the hopper transfer device by opening the TurboFiller
suction valve (C) and the chemical will be transferred to the main
tank.
7. If the chemical container is empty, it can be rinsed by the Chemical
Container Cleaning device. Place the container over the multi-hole
nozzle and press the lever (A).
8. Place the rinsing wand inside the hopper and press the lever (D) to
rinse the concentrated chemicals from the hopper.
9. Close the TurboFiller suction valve (C) and the TurboFiller lid.
10. When the spray liquid is well mixed, turn top Pressure Manifold
valve towards “Spraying” position. Keep P.T.O. engaged so the
spray liquid is continuously agitated until it has been sprayed on
the crop.
ATTENTION! The scale in the hopper can only be used if the
sprayer is parked at level ground! It is recommended to use a
measuring jug for best accuracy.
€
DANGER! Do not press lever (A) unless the multi-hole nozzle is
covered by a container to avoid spray liquid hitting the operator.
ATTENTION! Rinsing device uses spray liquid to rinse containers for concentrated chemicals. Always rinse the
chemical containers with clean water several times until they are clean before disposal.
ATTENTION! The hopper rinsing device uses spray liquid for rinsing concentrated chemical from the hopper! The
TurboFiller must always be cleaned together with the rest of the sprayer when the spray job is done.
