HIKVISION DS-2DF5286-AEL User Manual

User Manual of Network Speed Dome
© Hikvision
22
Descriptions of the live view page:
Menu Bar
Live View
Parameters
Live View Window
Toolbar
Show or hide PTZ
control panel
PTZ Control
Preset/Patrol/Pattern

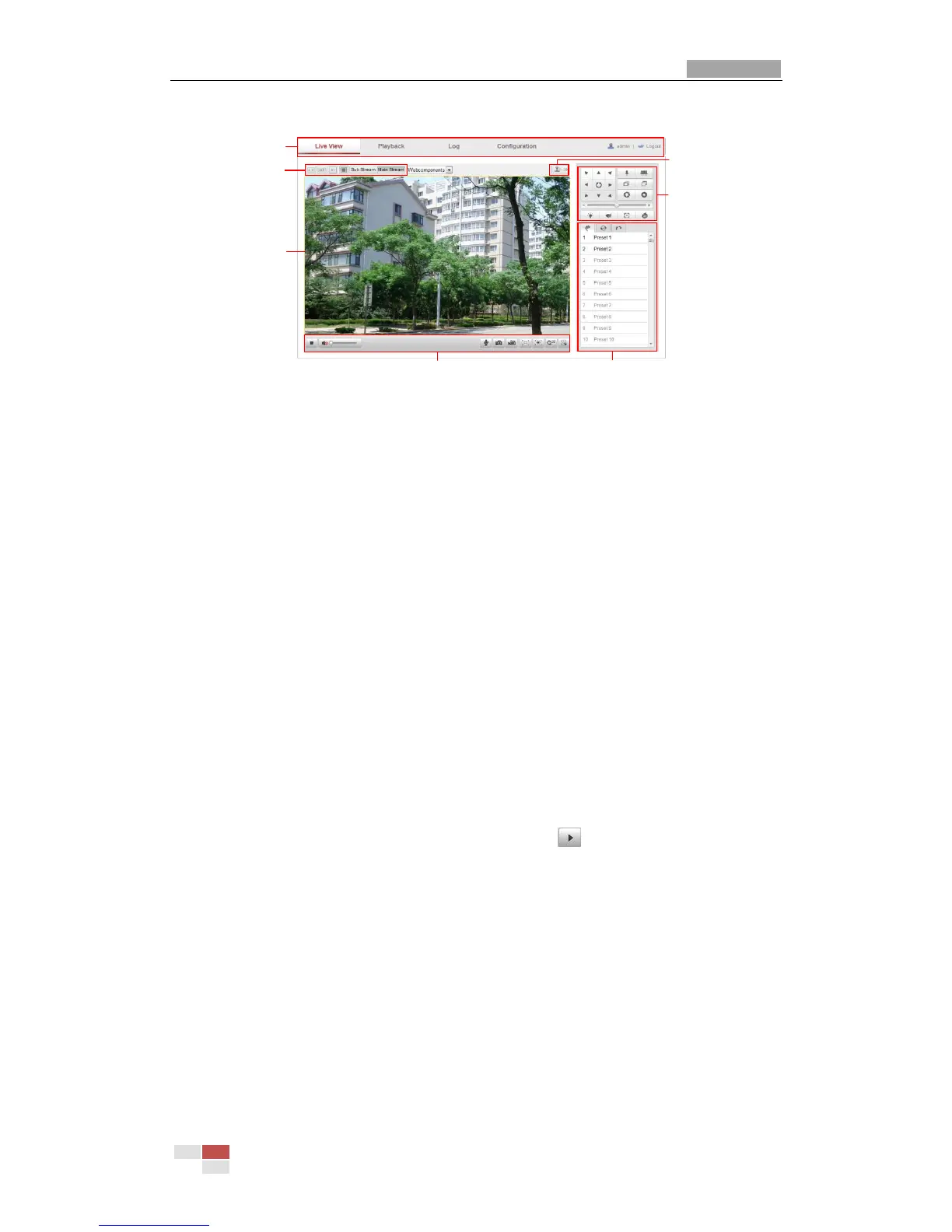

Figure 4-2 Live View Page
Menu Bar:
Click each tab to enter Live View, Playback, Log and Configuration page respectively.
Live View Window:
Display the live video.
Toolbar:
Operations on the live view page, e.g., live view, capture, record, audio on/off,
two-way audio, etc.
PTZ Control:
Panning, tilting, focusing and zooming actions of the speed dome. The lighter, wiper,
one-touch focus and lens initialization control.
Preset/patrol/pattern:
Set and call the preset/patrol/pattern for the speed dome.
Live View Parameters:
Configure the image size and stream type of the live video.
4.3 Starting Live View
In the live view window as shown in Figure 4-3, click on the toolbar to start the
live view of the speed dome.

HIKVISION DS-2DF5286-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 360 °
Pan speed	300 °/sec
White balance	ATW, Auto, Indoor, Lamp, Manual, Outdoor
Tilt angle range	-5 - 90 °
Camera shutter speed	1 - 1/10000 s
Minimum illumination	0.03 lx
Field of view (FOV) angle	58.9 °
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	16 x
Optical zoom	30 x
Focal length range	- mm
Password protection type	User
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
LED type	IR
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	52 dB
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	65 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	305 mm
Weight	5000 g
Diameter	220 mm
