User Manual of Network Speed Dome

7.3 Configuring Recording Schedule

Before you start:

Please make sure a local storage card is inserted in the speed dome or the network

storage is added to the speed dome, and the

Purpose:

There are two kinds of recording for the speed domes: manual recording and

scheduled recording. For the manual recording, refer to Section 4.4 Recording and

Capturing Pictures Manually. In this section, you can follow the instructions to

configure the scheduled recording. By default, the record files of scheduled recording

are stored in the SD card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule Settings interface:

Configuration > Advanced Configuration> Storage > Record Schedule

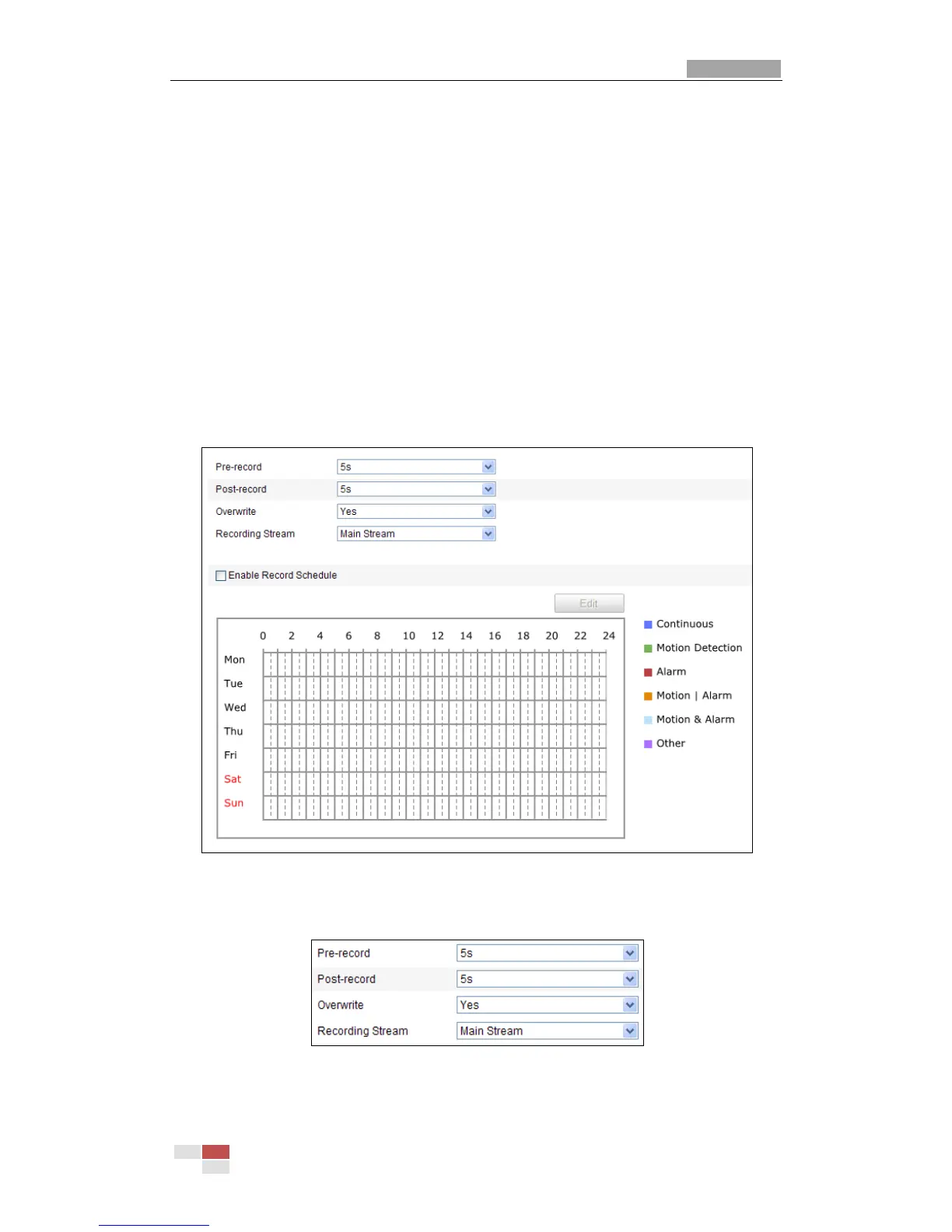

Figure 7-7 Recording Schedule Interface

2. Check the checkbox of Enable Record Schedule to enable scheduled recording.

3. Set the record parameters of the speed dome.

Figure 7-8 Record Parameters

 Pre-record: The time you set to start recording before the scheduled time or

Questions and Answers:

Need help?

Do you have a question about the HIKVISION DS-2DF5286-AEL and is the answer not in the manual?

HIKVISION DS-2DF5286-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 360 °
Pan speed	300 °/sec
White balance	ATW, Auto, Indoor, Lamp, Manual, Outdoor
Tilt angle range	-5 - 90 °
Camera shutter speed	1 - 1/10000 s
Minimum illumination	0.03 lx
Field of view (FOV) angle	58.9 °
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	16 x
Optical zoom	30 x
Focal length range	- mm
Password protection type	User
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
LED type	IR
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	52 dB
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	65 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
