6.4 Configuring Video and Audio Settings
6.4.1 Configuring Video Settings
Steps:
1. Enter the Video Settings interface:
Configuration >Basic Configuration > Video / Audio > Video
Or Configuration > Advanced Configuration > Video / Audio > Video

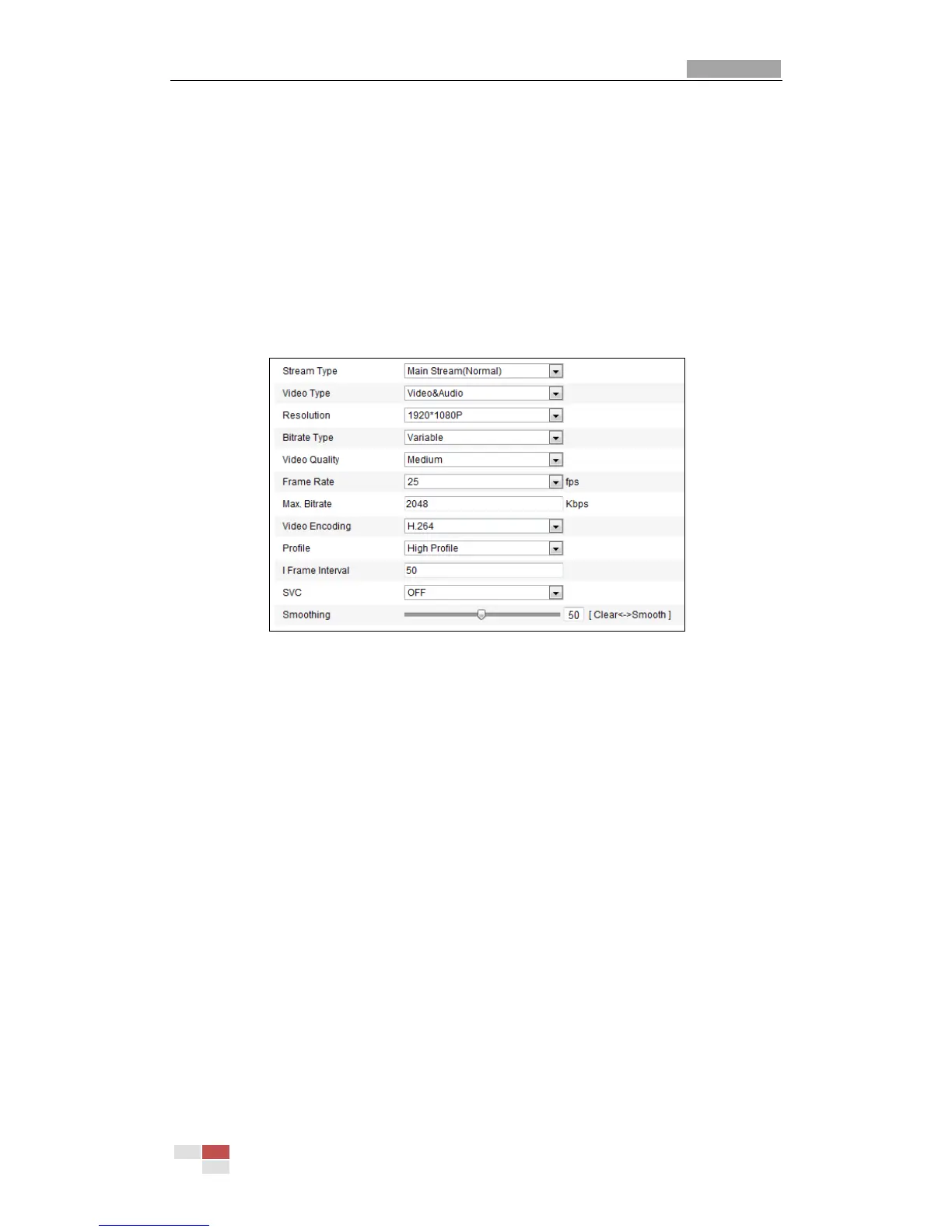

Figure 6-28 Configure Video Settings
2. Select the Stream Type of the speed dome to main stream (normal) or
sub-stream.
The main stream is usually for recording and live viewing with good bandwidth,
and the sub-stream can be used for live viewing when the bandwidth is limited.
Refer to the Section 6.1 Configuring Local Parameters for switching the main
stream and sub-stream for live viewing.
3. You can customize the following parameters for the selected main stream or
sub-stream:
Video Type:
Select the stream type to video stream, or video & audio composite stream. The
audio signal will be recorded only when the Video Type is Video&Audio.
Resolution:
Select the resolution of the video output.
Bitrate Type:
Select the bitrate type to constant or variable.
Video Quality:
When bitrate type is selected as Variable, 6 levels of video quality are selectable.
Frame Rate:
The frame rate is to describe the frequency at which the video stream is updated

HIKVISION DS-2DF5286-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 360 °
Pan speed	300 °/sec
White balance	ATW, Auto, Indoor, Lamp, Manual, Outdoor
Tilt angle range	-5 - 90 °
Camera shutter speed	1 - 1/10000 s
Minimum illumination	0.03 lx
Field of view (FOV) angle	58.9 °
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	16 x
Optical zoom	30 x
Focal length range	- mm
Password protection type	User
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
LED type	IR
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Ethernet LAN (RJ-45) ports	1
Signal-to-Noise Ratio (SNR)	52 dB
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	65 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	305 mm
Weight	5000 g
Diameter	220 mm
