User Manual of DS-7000HI-S Series Net DVR
Page 55
5.10 Motion Detection Alarm
If you enable this function, when there is motion detected, DVR will make alarm.

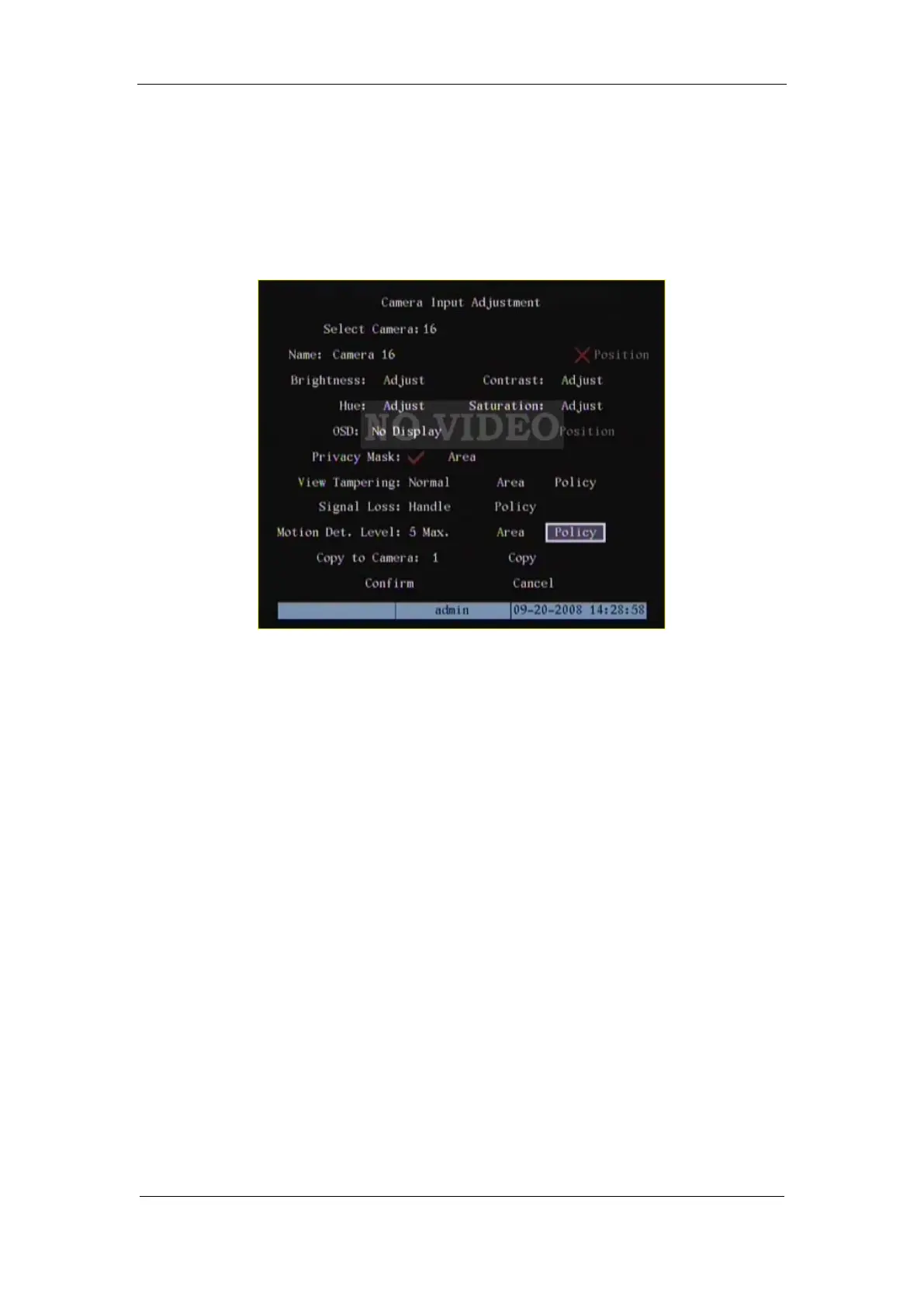

Step 1: Enter “Image Setup” menu:
Step 2: Select camera: Use[][]key to select one camera.
Step 3: Select motion detection sensitivity: On the right side of “Motion Det. Level” item,
there is a list box. That is motion detection sensitivity. There are 7 options, from 0 (the lowest) to
5 (the highest) and “Off”. You can use[↑][↓]keys to select one. If you select “Off” option, DVR
will not response even if there is motion detection. If you select other options, it will active
“Motion Area Setup” button and “Policy Setup” button. If you select low sensitivity such as 0,
only when there are great motion detection, DVR can response. On the other side, for high
sensitivity such as 5, DVR will response with small motion detection.
Step 4: Motion area setup: You must define motion areas so that DVR will response when
there is motion in those areas. Move “Active Frame” to “Area” buton on the right side of
sensitivity list box, press[ENTER]key, you can enter “Motion Area Setup” interface.
