5.13 External Alarm Input and Relay Output
For 4-channel DVR, there are 4 external alarm input and 2 relay output. For 8-channel DVR,
there are 8 external alarm input and 4 relay output. For 16-channel DVR, there are 16 external
alarm input and 4 relay output. In “Alarms” menu, you can setup for each external alarm input.

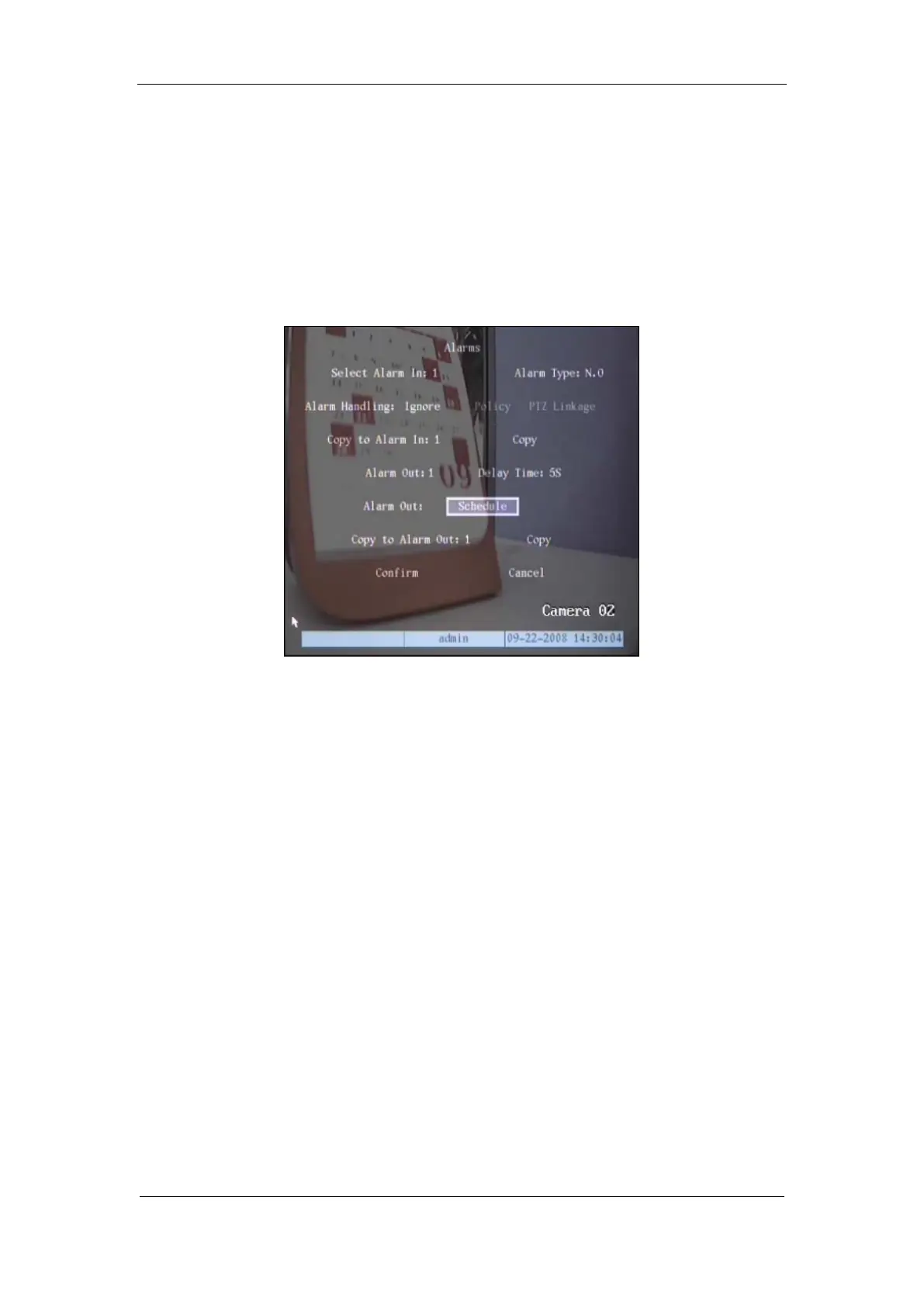

In main menu, move “Active Frame” to “Alarms” icon and press[ENTER]key to enter alarms
menu:
External alarm input setup:
Step 1: Select one alarm input
Use[↑][↓]keys to select one alarm input.
Step 2: Alarm type
This is sensor type. You can select “Normal Open” or “Normal Close” according to the
sensor type.
Step 3: Enter “Alarm in Handling” sub menu
In the “Alarms” menu, there are two options for “Alarm Handling” item. One is “Ignore”,
and the other is “Handle”. If you select “Handle” option, you can active “Policy” and “PTZ
Linkage” buttons on right side. Move “Active Frame” to “Policy” button and press[ENTER]key,
you will enter “Alarm in Handling” sub menu:
