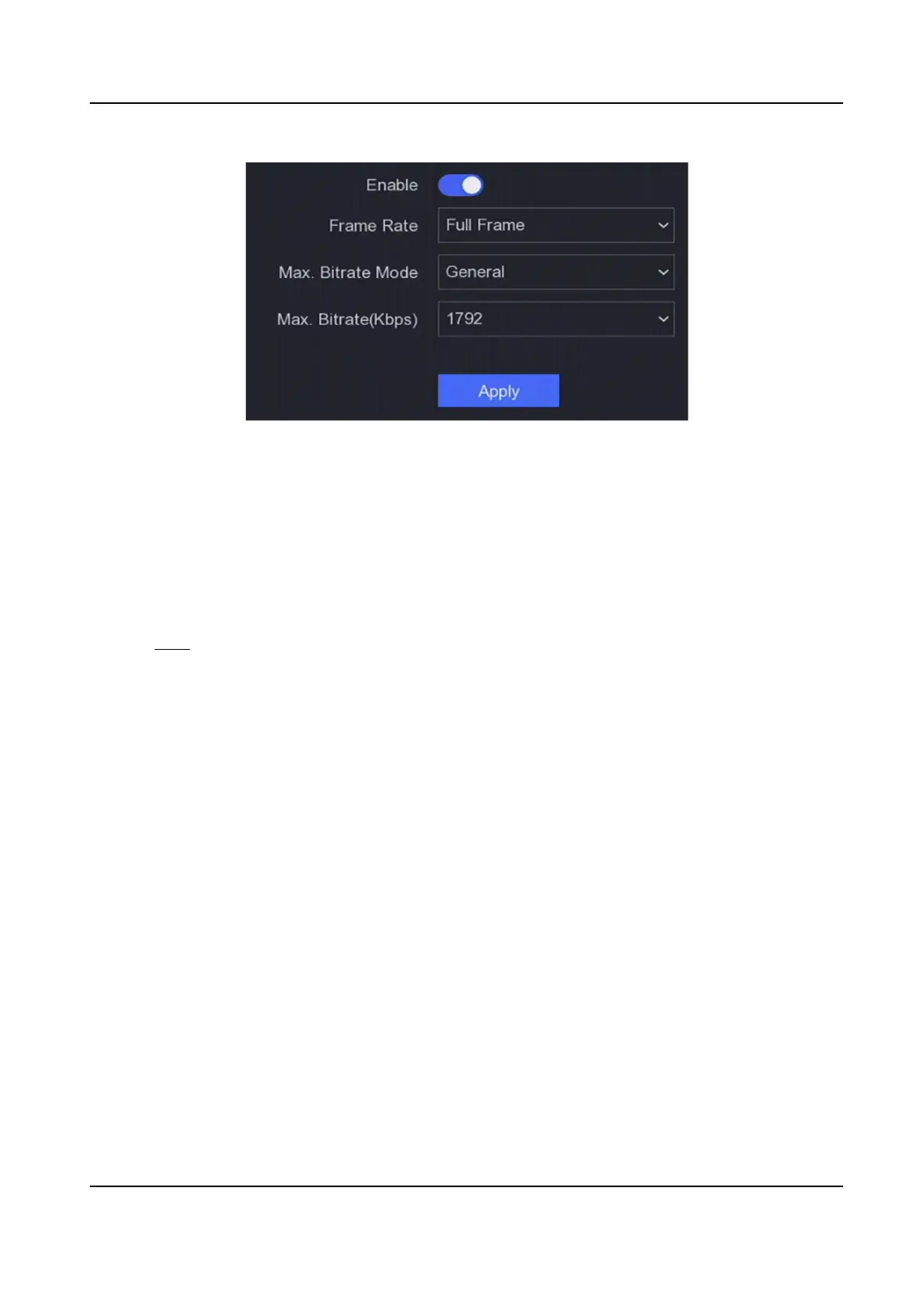

Figure 6-2 Channel-Zero
4.
Turn on Enable.
5.
Congure Frame Rate, Max. Bitrate Mode, and Max. Bitrate. The higher frame rate and bitrate
require higher bandwidth requirement.
6.
Click Apply.
6.1.3 User
Refer to User for details.
6.2 Network
Conguraon
6.2.1 TCP/IP
TCP/IP must be properly congured before you operate video recorder over network.
Steps
1.
Go to Conguraon → Network → General → TCP/IP .
2.
Congure network parameters.
Working Mode
Mul-address Mode
The parameters of the two NIC cards can be congured independently. You can select
LAN1 or LAN2 in the NIC type
eld for parameter sengs. You can select one NIC card as
default route. And then the system is connecng with the extranet and the data will be
forwarded through the default route.
Net-fault Tolerance Mode
Network Video Recorder User Manual
42
