Network Video Recorder User Manual
114
5.10 Files Protection
Purpose:
You can lock the recording files or set the HDD property to Read-only to protect the record files
from being overwritten.
5.10.1 Locking the Recording Files
 Lock File when Playback
Step 1 Enter Playback interface.
Menu> Playback
Step 2 Check the checkbox of channel(s) in the channel list and then double-click to select a date on
the calendar.

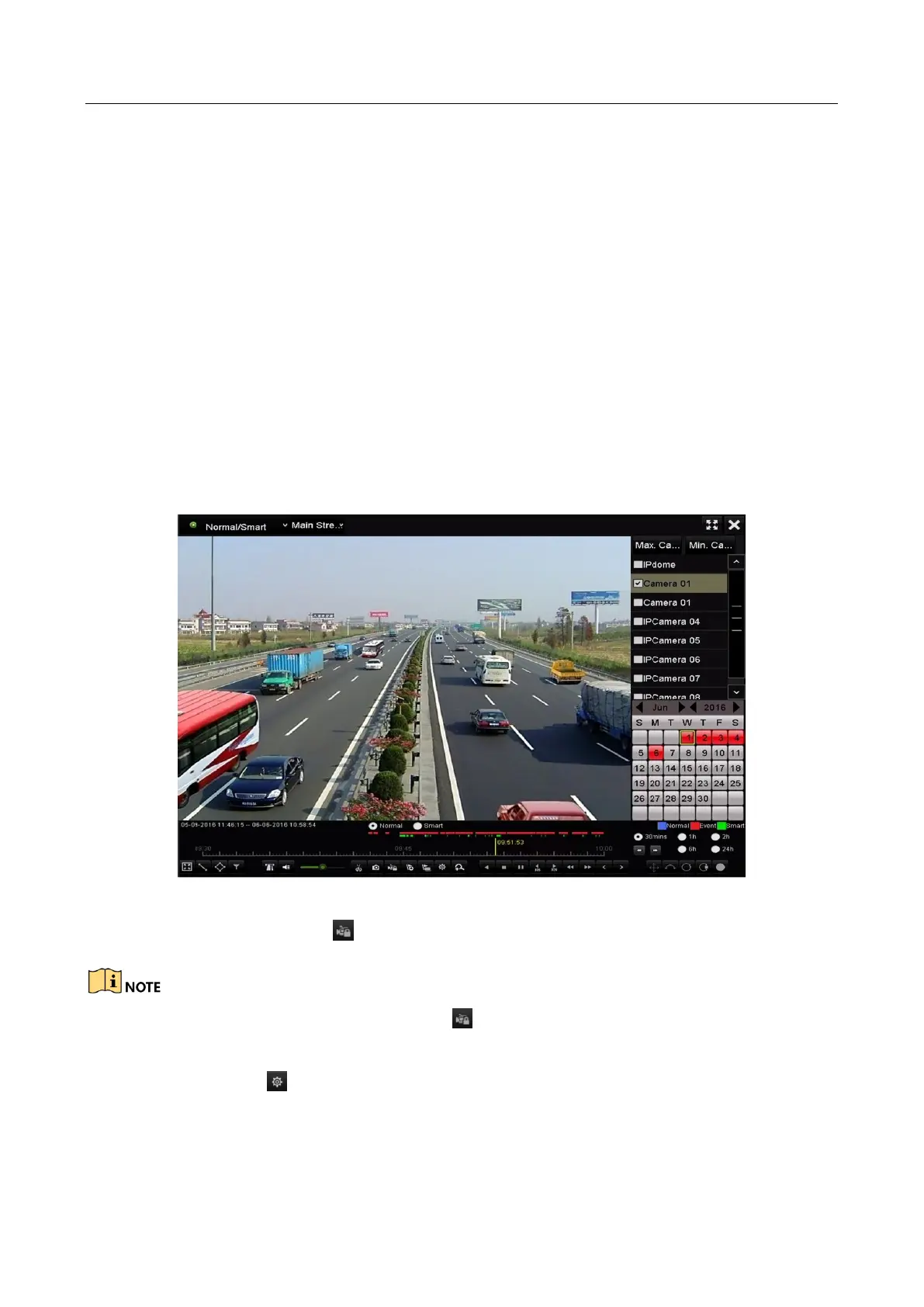

Figure 5-29 Normal/Smart Playback
Step 3 During playback, click the button to lock the current recording file.
In the multi-channel playback mde, clicking the button will lock all the record files related to
the playback channels.
Step 4 You can click the button to pop up the file management interface. Click the Locked File
tab to check and export the locked files.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
