HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
210

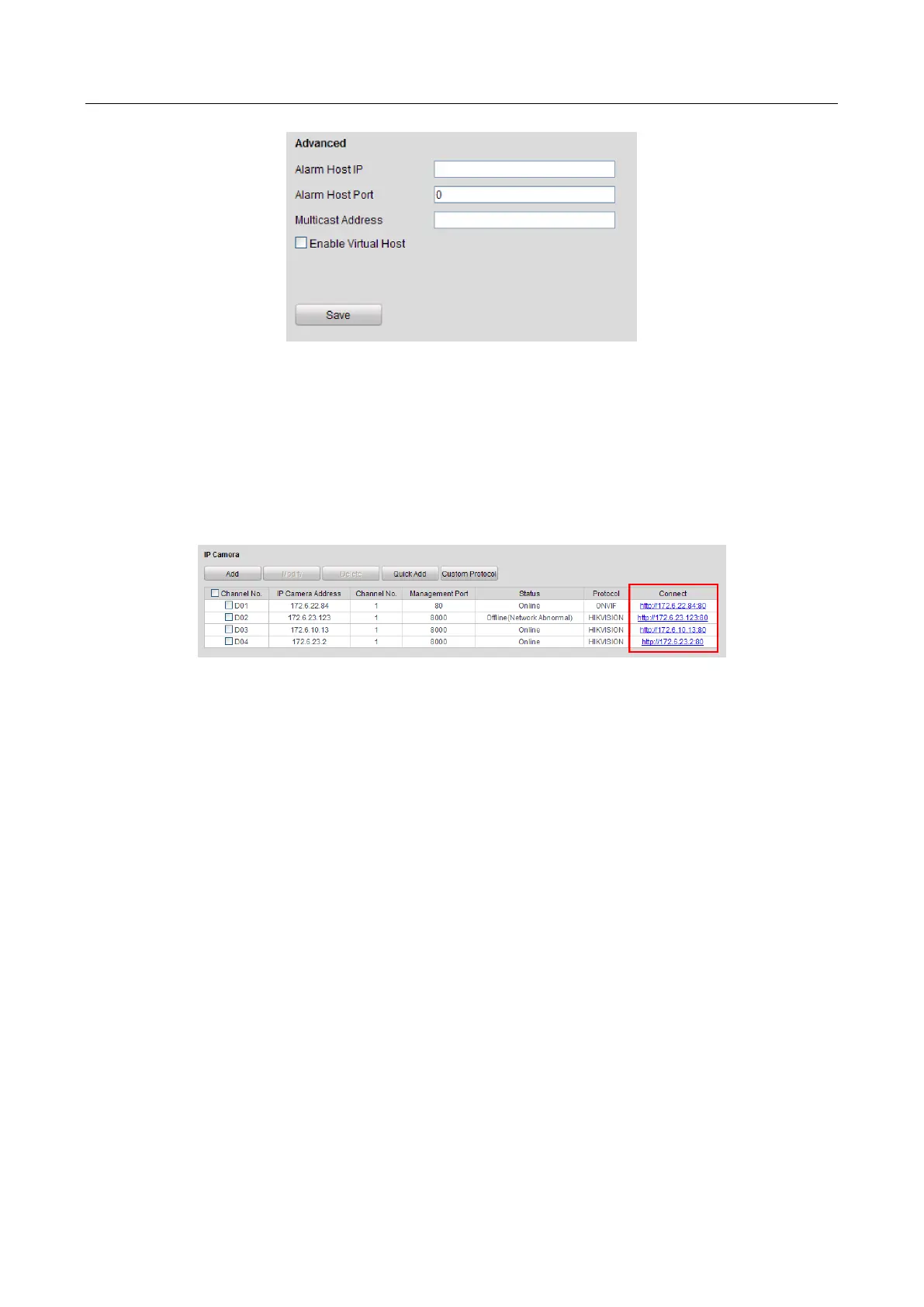

Figure 12-23 Advanced Settings Interface
Step 2 Check the checkbox of the Enable Virtual Host.
Step 3 Click the Save button to save the setting.
Step 4 Enter the IP camera management interface of NVR. The Connect column appears on the
right-most side of the camera list, as shown in the Figure 12-24.
Configuration > Remote Configuration > Camera Management > IP Camera
Figure 12-24 Connect to IP Camera
Step 5 Click the link and the page of IP camera management appears.
12.3 Checking Network Traffic
Purpose:
You can check the network traffic to obtain real-time information of NVR such as linking status,
MTU, sending/receiving rate, etc.
Step 1 Enter the Network Traffic interface.
Menu > Maintenance > Net Detect

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
