HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
142
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer),
SATA writer or eSATA HDD. Quick Backup and Normal Backup are supported.
Step 1 Enter Export interface.
Menu>Export>Event
Step 2 Select the cameras to search.
Step 3 Select the event type to alarm input, motion, VCA or POS.

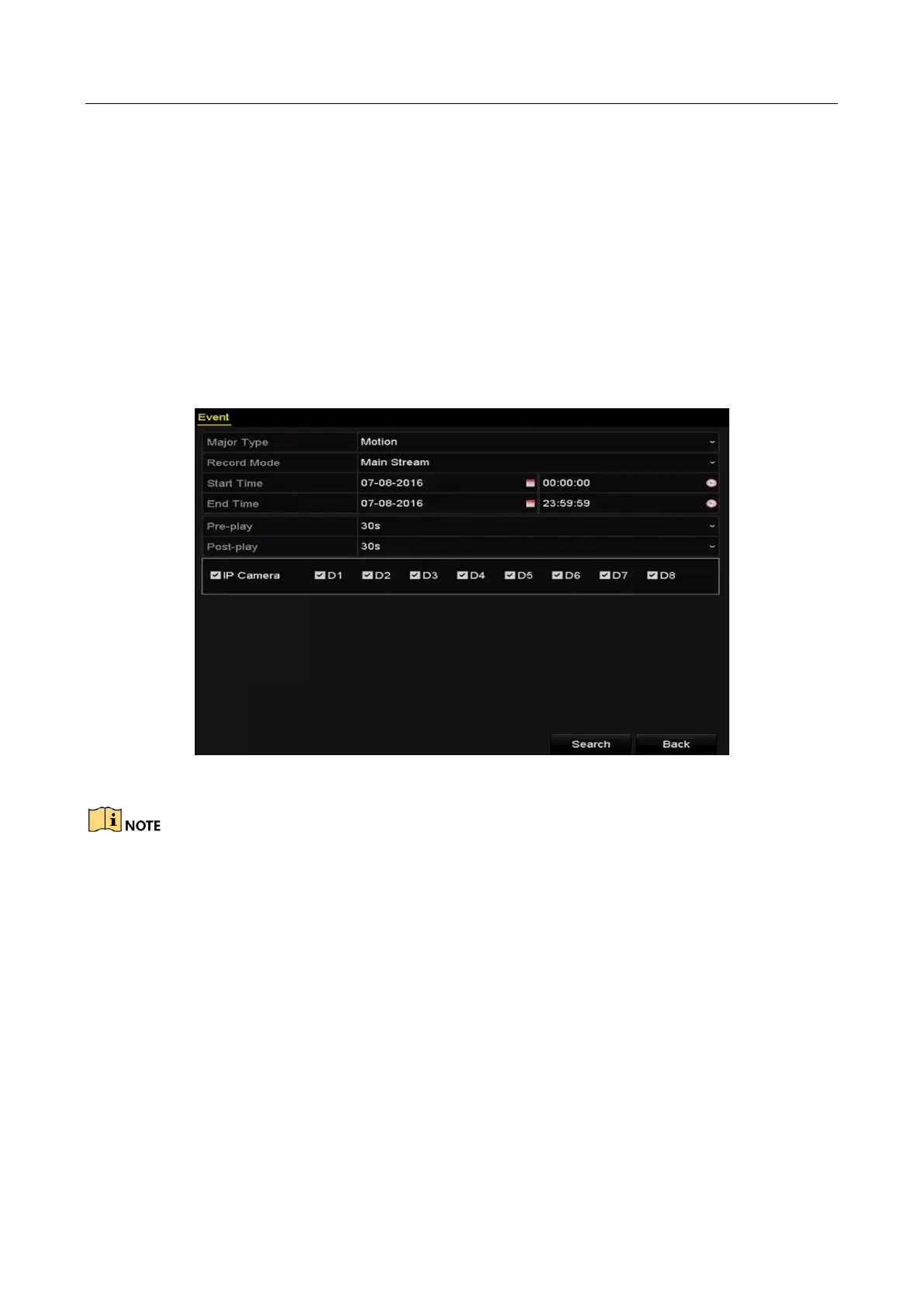

Figure 7-9 Event Search for Backup
The POS event type is supported by the DS-7600/7700/8600/9600-I (/P) series NVR only.
Step 4 Set the search conditions and click Search button to enter the search result interface. For the
POS event type, you can also set the Keyword and enable the Case Sensitivity (upper case
and lower case) to search the video files with the key word contained POS information.
Step 5 The matched video files are displayed in Chart or List display mode. Select video files from
the Chart or List interface to export.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
