HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
139

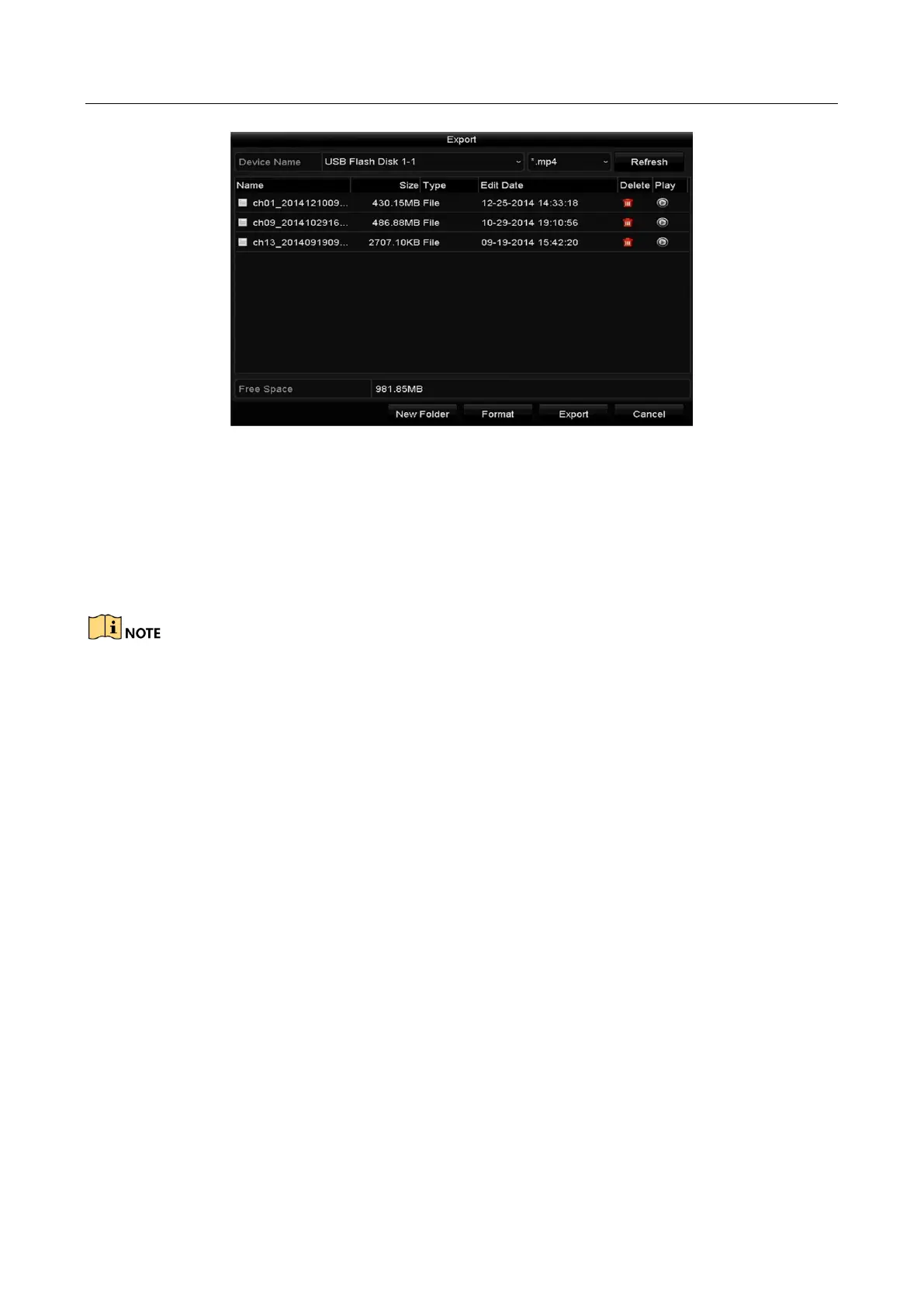

Figure 7-4 Checkup of Quick Export Result Using USB1-1
7.1.2 Backing up by Normal Video/Picture Search
Purpose:
The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs,
USB writer), SATA writer and e-SATA HDD.
The eSATA HDD is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Backup using USB flash drives and USB HDDs
Step 1 Enter Export interface.
Menu>Export>Normal/Picture
Step 2 Select the cameras to search.
Step 3 Set search condition and click Search button to enter the search result interface. The
matched video files or pictures are displayed in Chart or List display mode.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
