HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
212
12.4 Configuring Network Detection
Purpose:
You can obtain network connecting status of NVR through the network detection function,
including network delay, packet loss, etc.
12.4.1 Testing Network Delay and Packet Loss
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection menu, as shown in Figure
12-26.

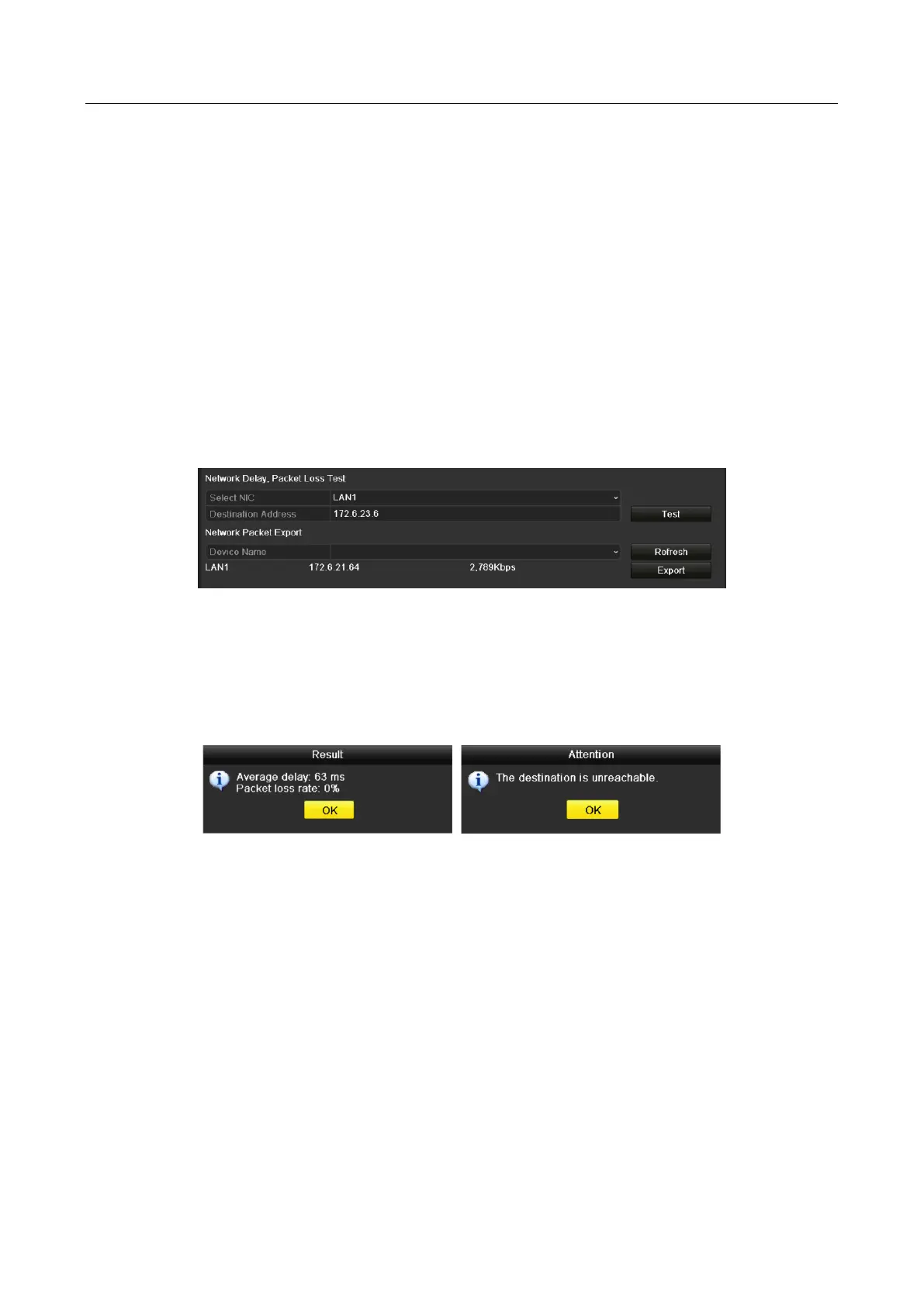

Figure 12-26 Network Detection Interface
Step 3 Enter the destination address in the text field of Destination Address.
Step 4 Click Test button to start testing network delay and packet loss. The testing result pops up
on the window. If the testing is failed, the error message box will pop up as well. Refer to
Figure 12-27.
Figure 12-27 Testing Result of Network Delay and Packet Loss
12.4.2 Exporting Network Packet
Purpose:
By connecting the NVR to network, the captured network data packet can be exported to USB-flash
disk, SATA/eSATA, DVD-R/W and other local backup devices.
Step 1 Enter the Network Traffic interface.
Menu >Maintenance>Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection interface.
Step 3 Select the backup device from the dropdown list of Device Name, as shown in Figure 12-28.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
