HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
74
 Main Monitor: Enter Main operation mode.
In the live view mode of the main output monitor, the menu operation is not available while Aux
output mode is enabled.

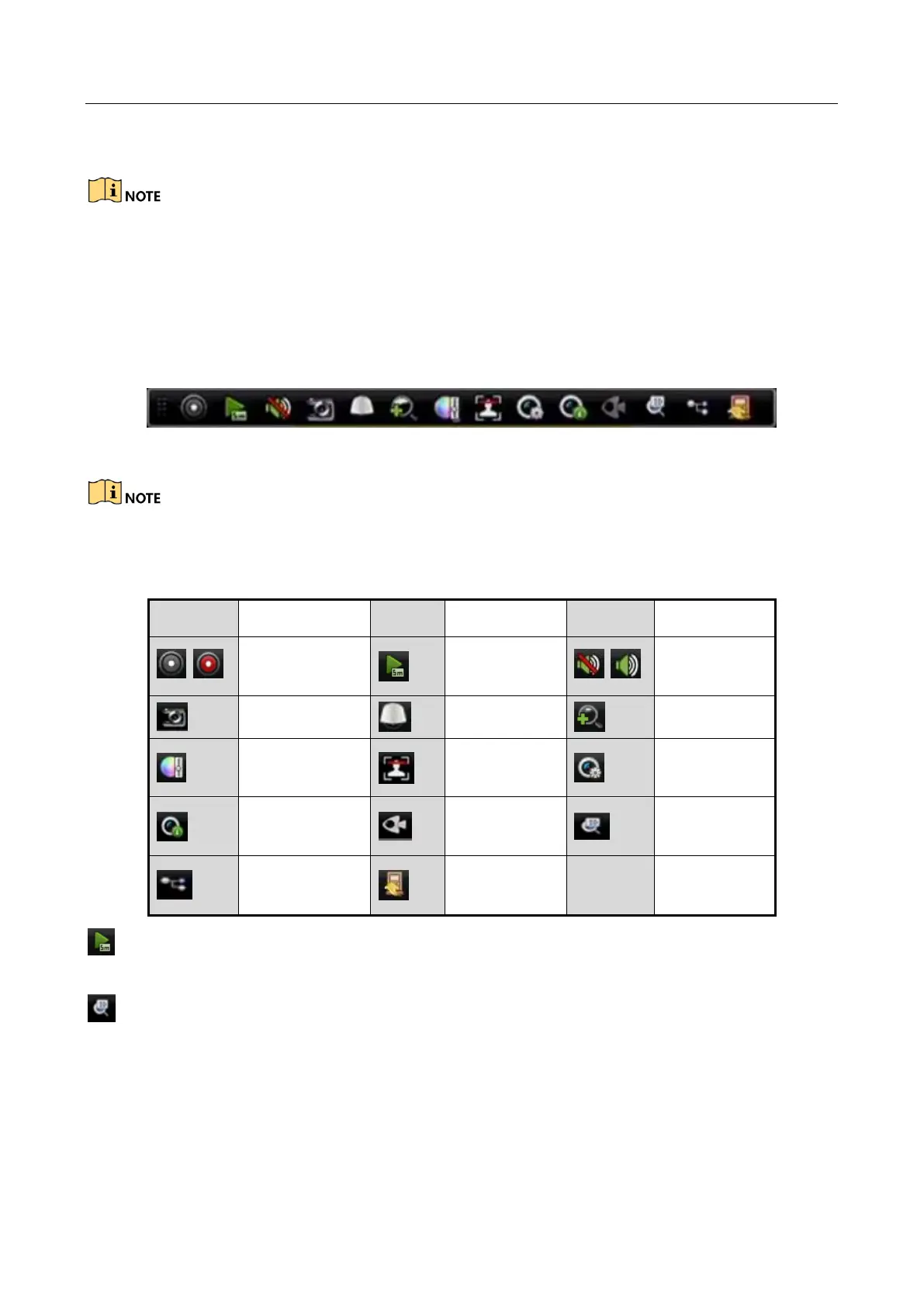

3.2.4 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you single click
the mouse in the corresponding screen.
Figure 3-2 Quick Setting Toolbar
The fisheye expansion view feature is supported by the DS-7600/7700/8600/9600-I (/P) series NVR
only.
Table 3-4 Description of Quick Setting Toolbar Icons
Icon
Description
Icon
Description
Icon
Description
/
Enable/Disable
Manual Record
Instant
Playback
/
Mute/Audio
on
Capture
PTZ Control
Digital Zoom
Image Settings
Face
Detection
Live View
Strategy
Information
Fisheye
Expansion
3D
Positioning
Main/Sub-Stre
am
Close
Instant Playback only shows the record in last five minutes. If no record is found, it means
there is no record during the last five minutes.
3D Positioning (for I series NVR) is for zooming in/out the specific area of live image.
Use the left key of mouse to click on the desired position in the video image and drag a rectangle
area in the lower right direction, the camera will move the position to the center and enable the
rectangle area to zoom in. Use the left key of mouse to drag a rectangle area in the upper left
direction to move the position to the center and enable the rectangle area to zoom out.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
