3.3 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Step 1 Enter the Live View Settings interface.
Menu> Configuration> Live View

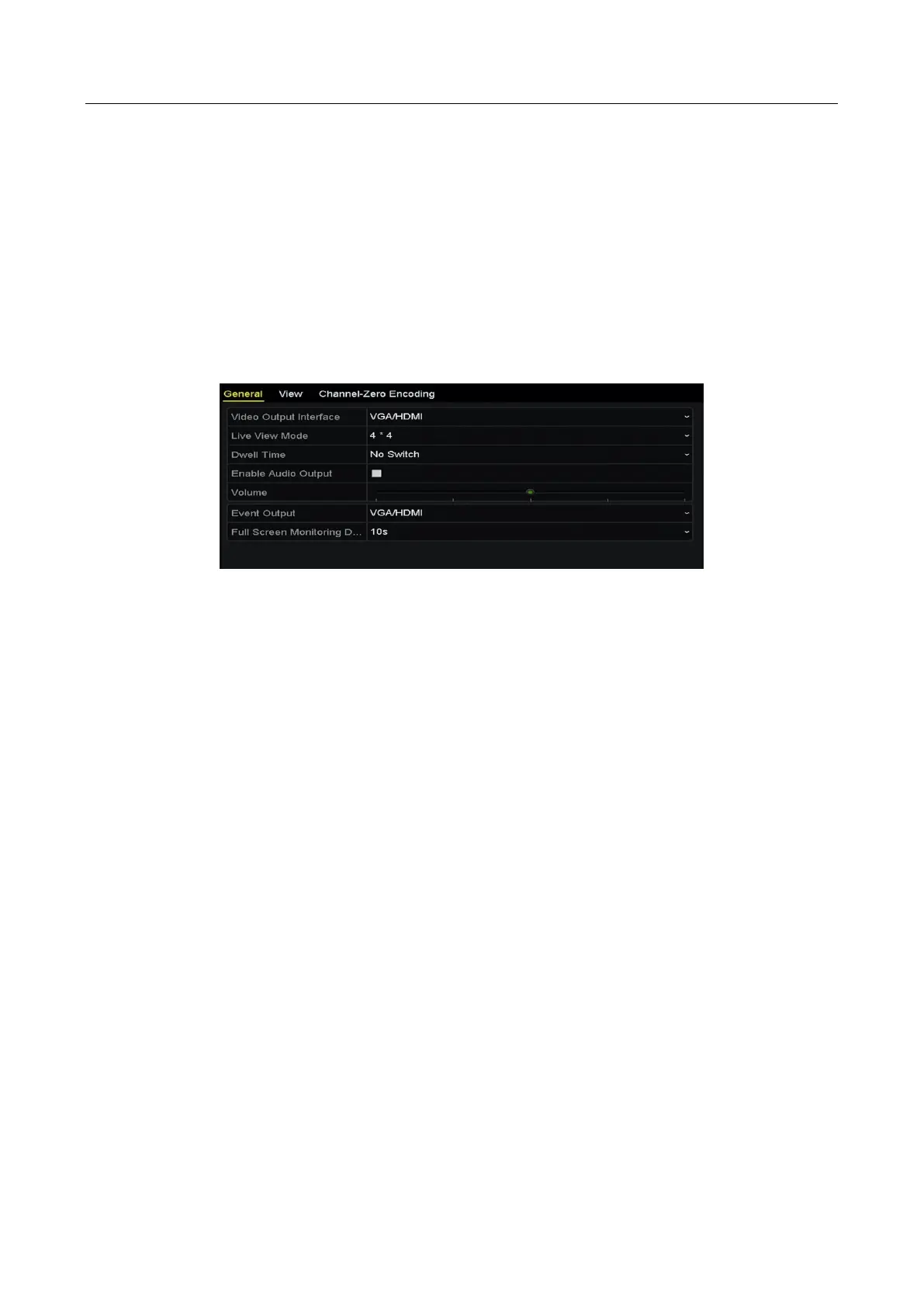

Figure 3-7 Live View-General
The settings available in this menu include:
 Video Output Interface: Designates the output to configure the settings for. The DS-9600NI
and DS-8600NI provide VGA/HDMI and VGA2/HDMI2, and DS-7600NI and DS-7700NI
provide the HDMI and VGA video outputs.
 Live View Mode: Designates the display mode to be used for Live View.
 Dwell Time: The time in seconds to dwell between switching of channels when enabling
auto-switch in Live View.
 Enable Audio Output: Enables/disables audio output for the selected video output.
 Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
 Event Output: Designates the output to show event video.
 Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
Step 2 Set cameras order.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
