HIKVISION DS-K3Y411 Series User Manual

Note
The reinstalled supercapacitor needs to be powered on for at least 3 minutes before it can work
normally.

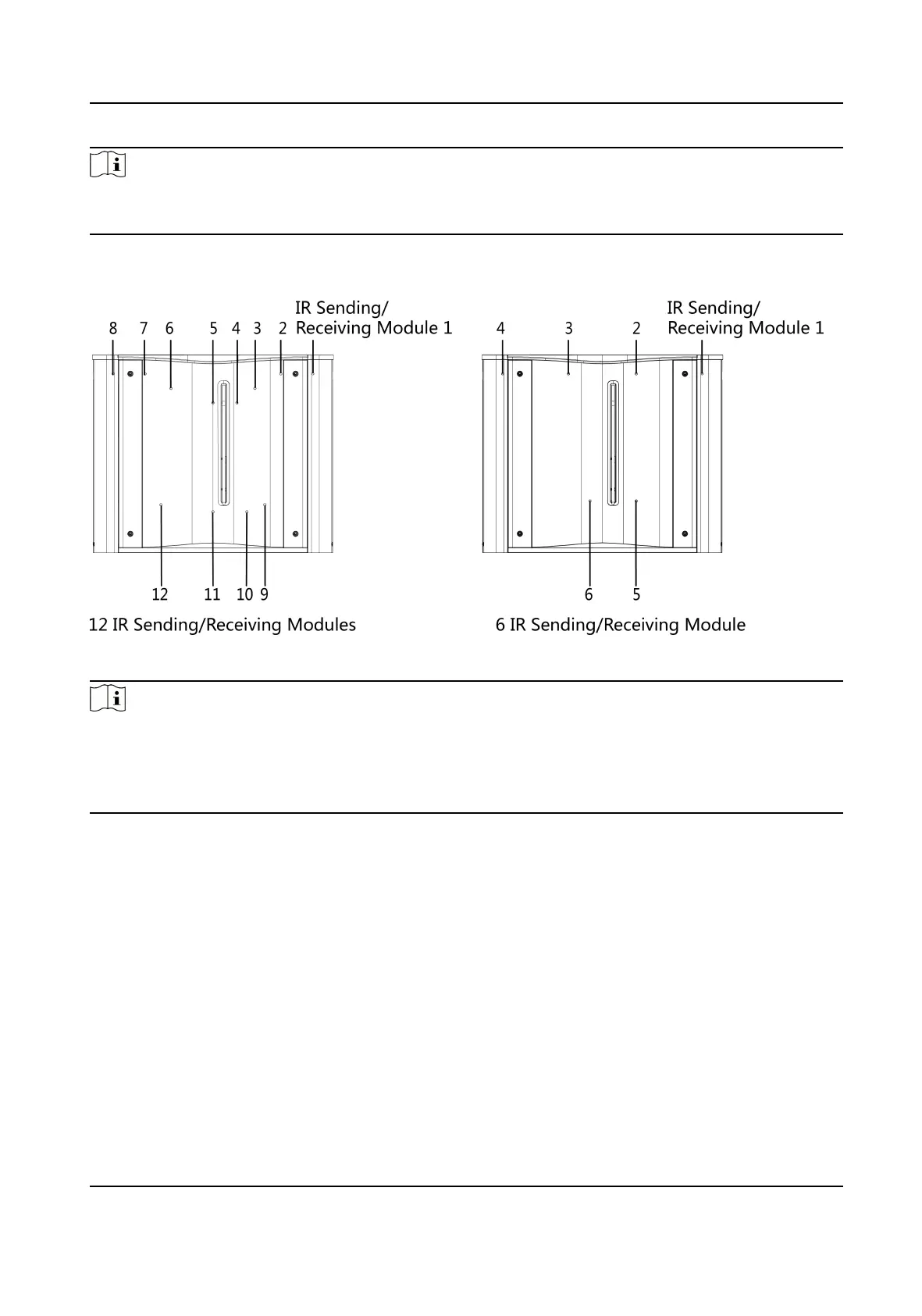

The picture displayed below describes the IR adapter and the IR sending/receiving board and their
corresponding number on the pedestal.
Figure 4-2 Components 2
Note
If the turnsle contains two lanes, standing at the entrance posion, the IR boards on the le
pedestal are the IR sending boards. The IR boards on the right pedestal are the IR receiving boards.
The IR boards on the le side of the middle pedestal are the IR receiving boards, while the IR
boards on the right side of the middle pedestal are the IR sending boards.
4.2 Wiring Electric Supply
Wire electric supply with the switch in the pedestal. Terminal L and terminal N are on the switch,
while terminal PE should connect to a ground wire (yellow and green wire).
DS-K3Y411X Series Flap Barrier Quick Start Guide
11
