HIKVISION DS-K3Y411 Series User Manual

4.4 Face Recognion Terminal Power Supply Wiring (Oponal)
If connect to face recognion terminals, the face recognion terminals of right pedestal and middle
pedestal (entrance) will power supplied by 12 V terminal on le side of the pedestal.
The face recognion terminal of le pedestal and middle pedestal (exit) will power supplied by 12
V terminal of the power adaptor of the right pedestal. The sub lane control board will power
supplied by the power adaptor.
For details about the wiring, see the picture below:

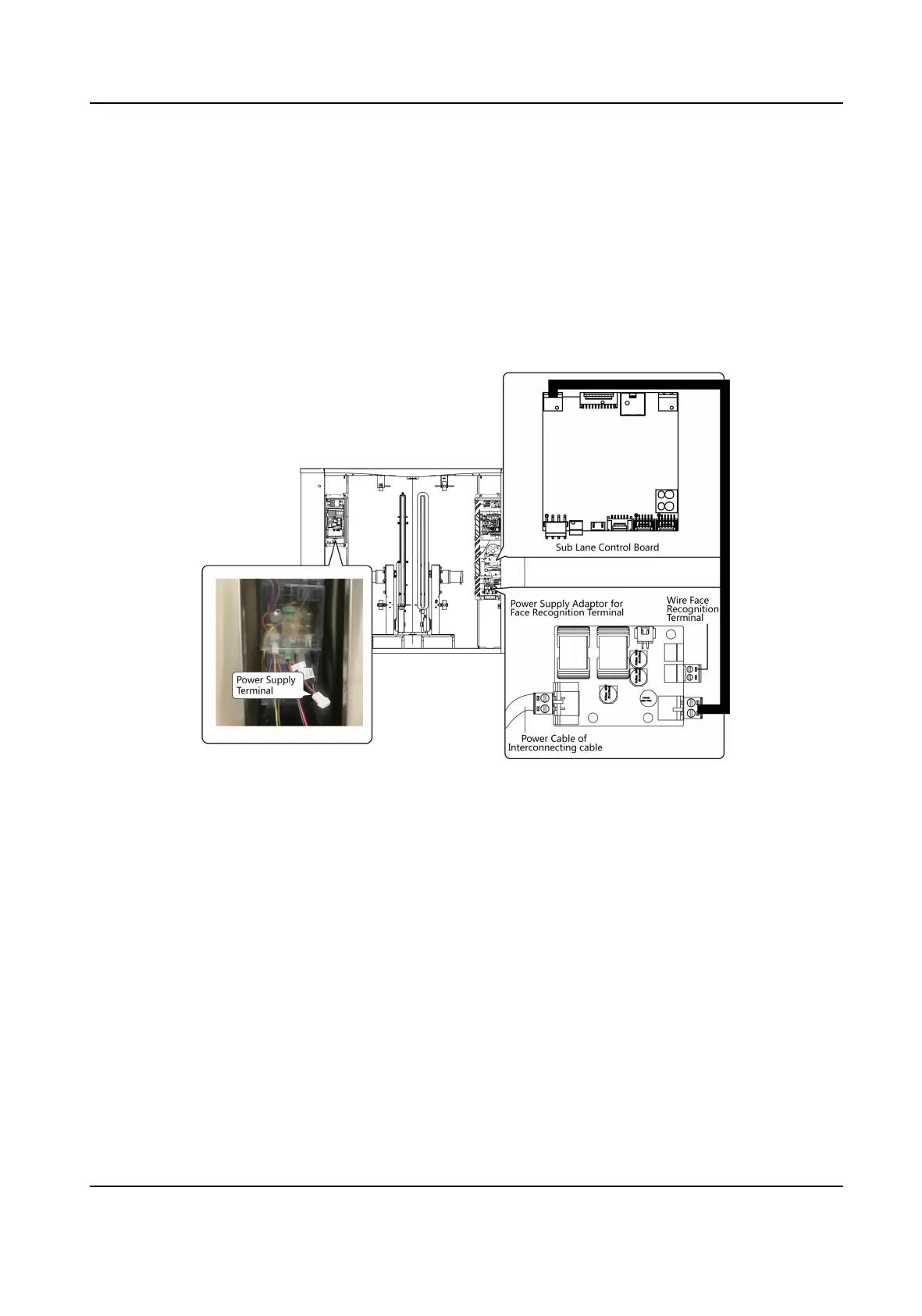

Figure 4-5 Face Recognion Terminal Power Supply Wiring
4.5 Terminal
Descripon
The lane controller contains main lane controller and sub lane controller, which controls the IR
beams, motor, and other components' work.
4.5.1 UART Related Terminal and
Posion
View the UART posion on the lane control board and the access control board. You can also view
the UART related terminals and DIP switch informaon.
DS-K3Y411X Series Flap Barrier Quick Start Guide
14
