HIKVISION DS-K3Y411 Series User Manual

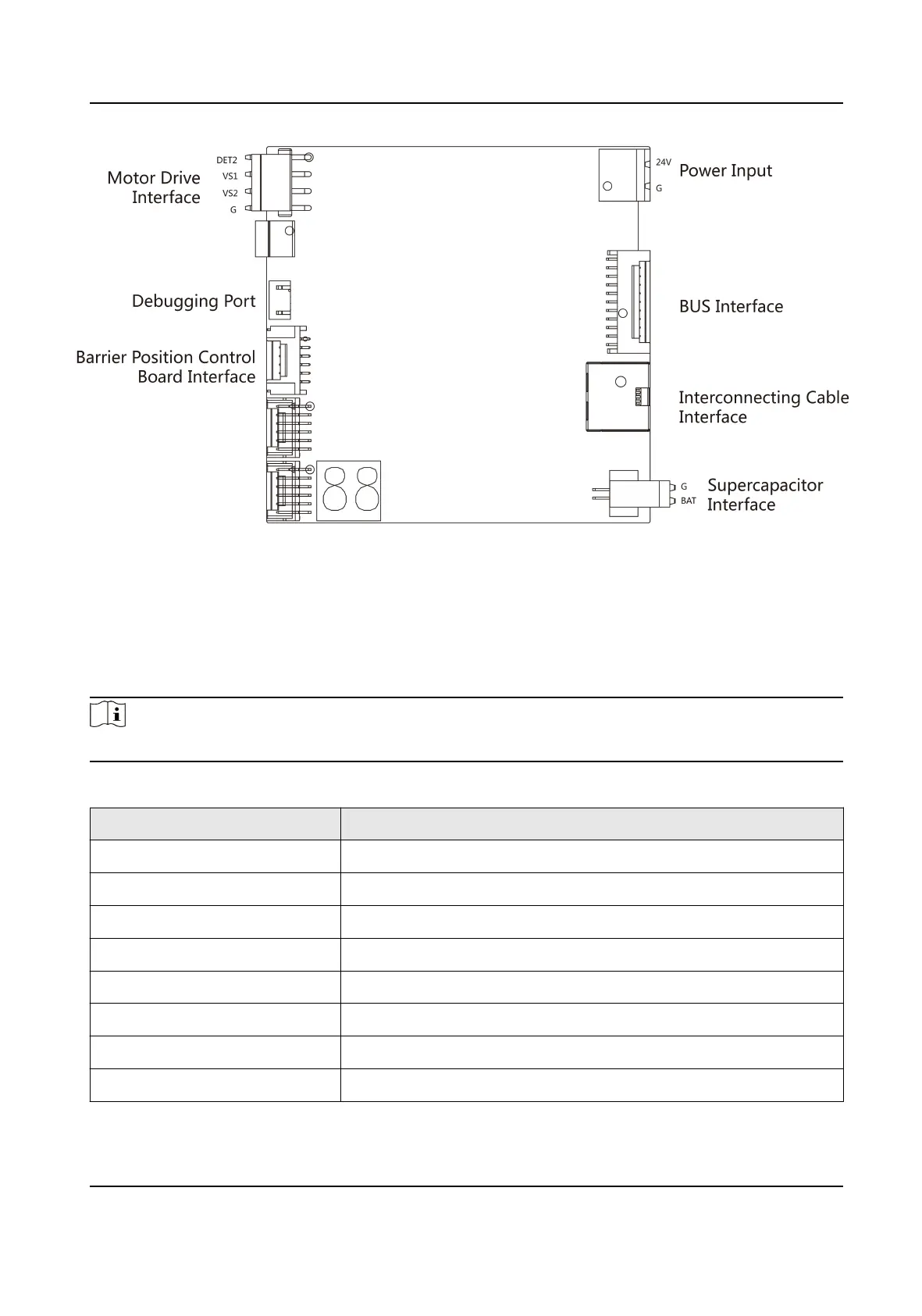

Figure 4-9 Sub Control Board Terminal
4.5.4 BUS Terminal
Descripon
You can connect the lane controller light board, fan, TAMPER, lane control board, card reader, face
recognion terminal, QR code scanner, etc. via the BUS terminal.
Note
Part of the wiring has been completed at the factory, please connect according to actual needs.
Table 4-2 BUS Terminal in Main Lane Controller
Terminal Name Descripon
Lane Controller Light Board 1 Connects lane controller light board 1
Lane Controller Light Board 2 Connects lane controller light board 2
Fan Connects fan
TAMPER1 Connects TAMPER1
TAMPER2 Connects TAMPER2
Lane Controller Board Connects main lane controller board
5 V Reserved
IR Adaptor Connects IR adaptor
DS-K3Y411X Series Flap Barrier Quick Start Guide
19
