Note
• The cable bare part should be no more than 8 mm. It is suggested that you can immerse the
bare part into the liquid n. If possible, wear an insulaon cap at the end of the bare cable.
Make sure there’s no bare copper or cable aer the wiring.

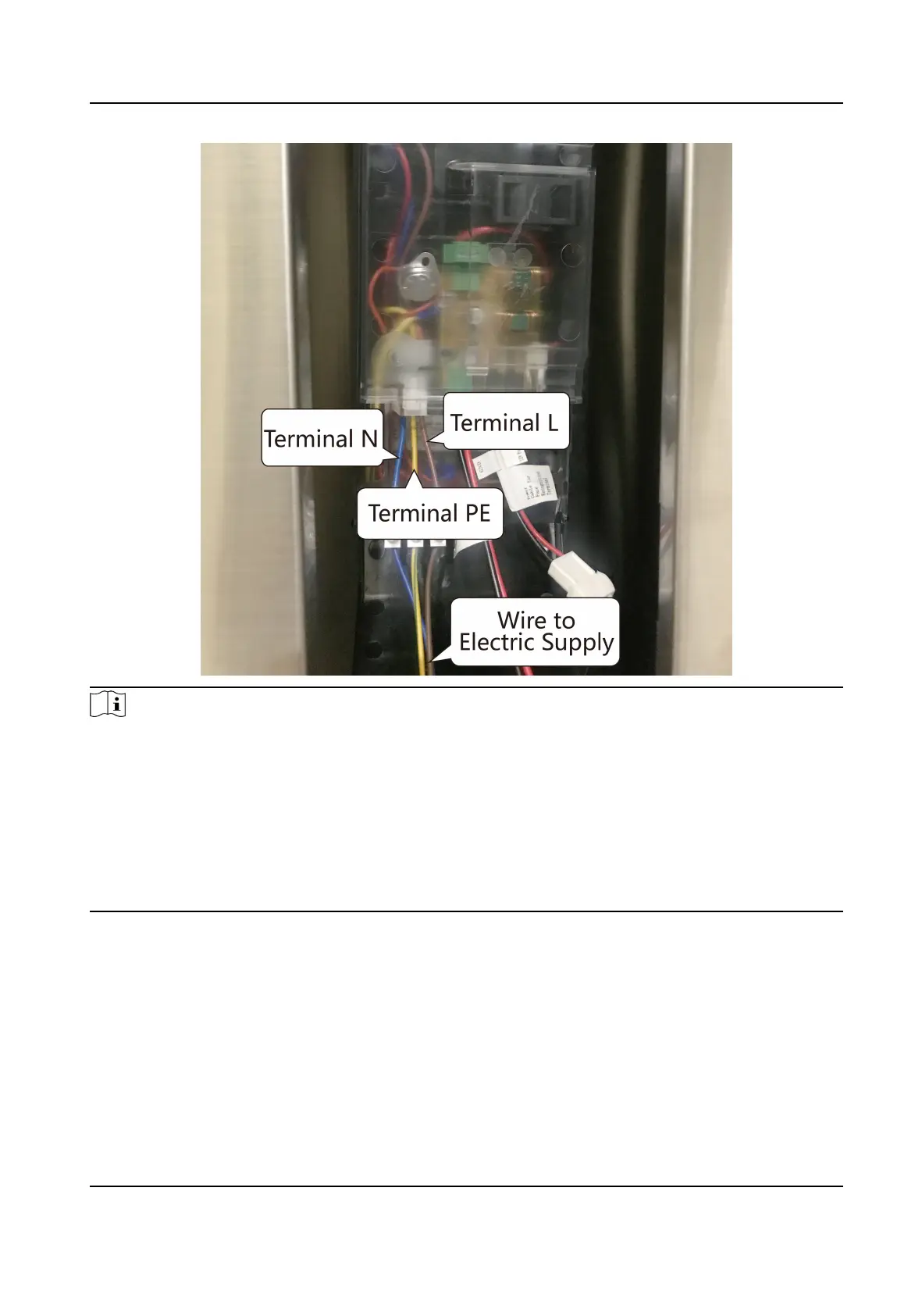

• The Terminal L and the Terminal N cannot be wired reversely. Do not wire the input and output
terminal reversely.
• To avoid people injury and device damage, when
tesng, the ground resistance of the
equipotenal points should not be larger than 2 Ω。
• Use the device in
conjuncon with an UPS.
4.3 Wire Interconnecng Cable
You should use interconnecng cables to connect the main lane board and the sub lane board for
components communicaon.
DS-K3Y411X Series Flap Barrier Quick Start Guide
12
