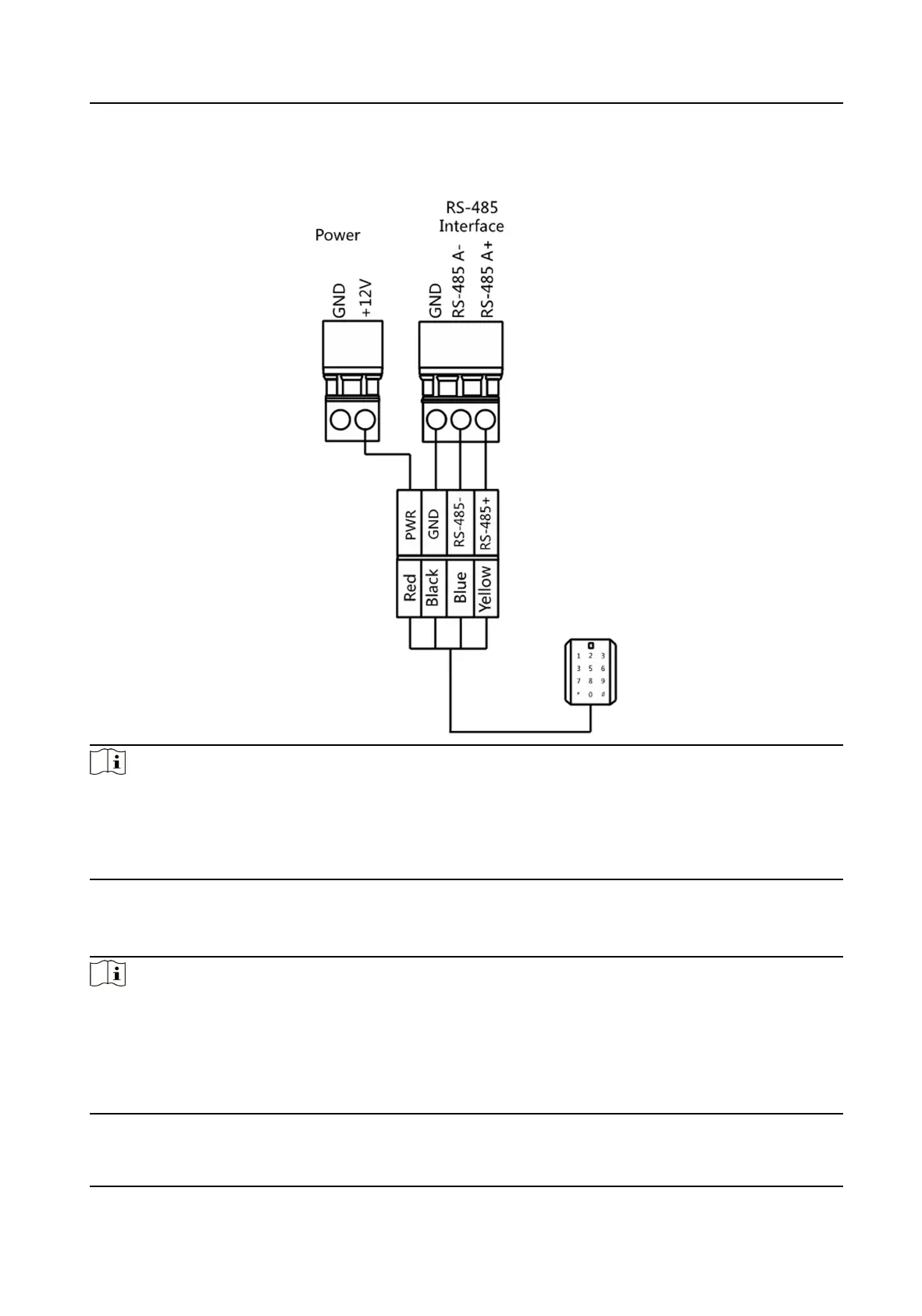

4.5.7 RS-485 Wiring
Note
• The RS-485 interfaces are for
connecng ID card reader, IC card reader, card reader, card recycler,
text screen, and face recognion terminal. Take the wiring of RS-485 card reader as an example.
• For details about text screen, see Conguring Screen Parameters in User Manual of iVMS-4200
AC Client Soware.
4.5.8 RS-232 Wiring
Note
• Access control board of pedestal can connect QR code scanner, card recycler, text screen and
face recognion terminal via RS-232 interface.
• For details about text screen, see Conguring Screen Parameters in User Manual of iVMS-4200
AC Client Soware.
• Take the wiring of text screen as an example.
DS-K3Y411X Series Flap Barrier Quick Start Guide
32
