Hirschmann RSPE 30 User Manual

20
Installation RSPE 30/32/35/37
Release 12 10/2015
1.3 Device views
1.3.1 Front view

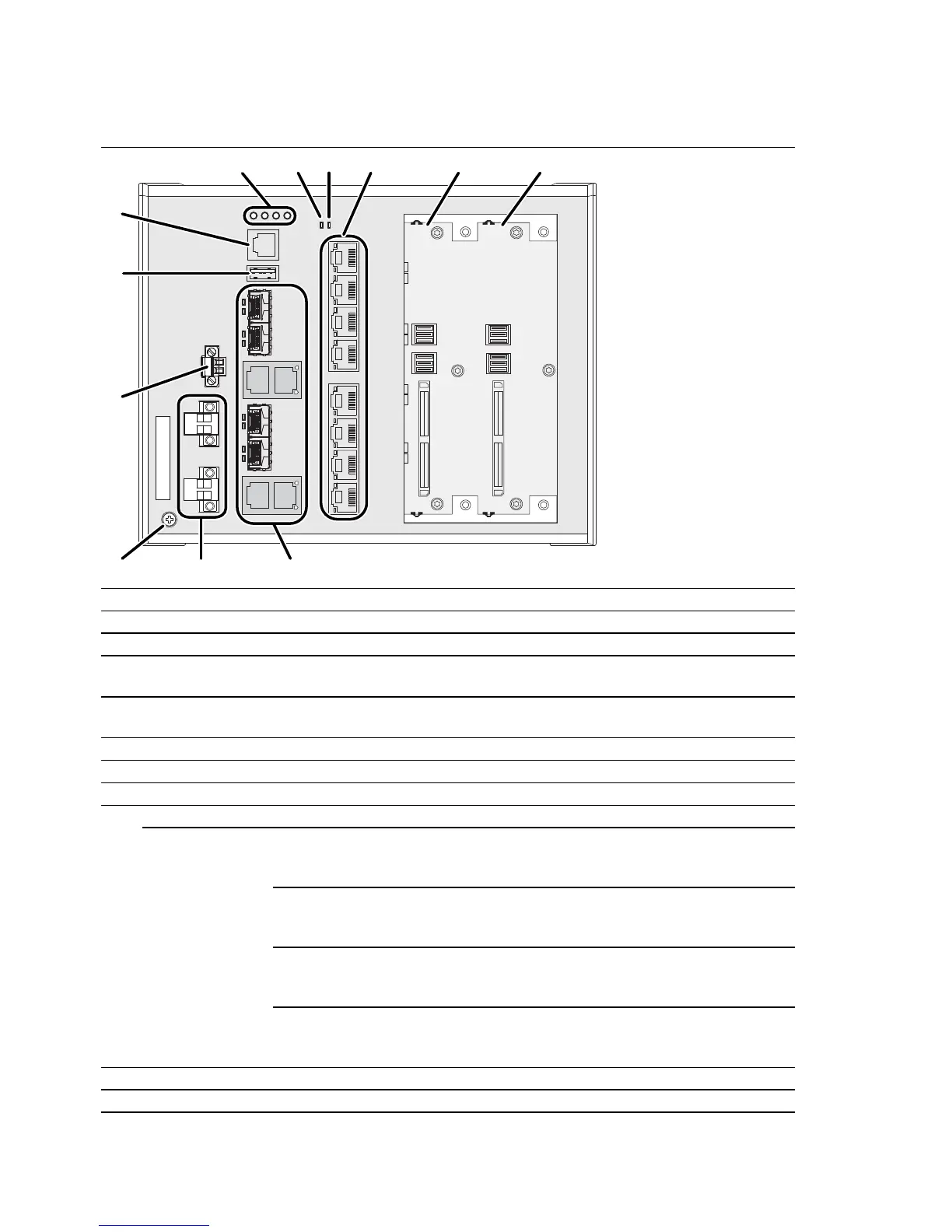

Front view (using the example RSPE30-24044O7T99-SCC...)
1 LED display elements for device status
2 LED display element for media module status
3 only device variants RSPE 32 and RSPE 37:
LED display element for media module status and PoE status
4 Media module
with
8 × RJ45 socket for 10/100 Mbit/s twisted pair connections
5 Slot 1 for media module RSPM
6 Slot 2 for media module RSPM
7 4 × Combo-Port for 10
a
/100/1000 Mbit/s connections
8 Supply voltage connection
alternatively,
depending on
device variant
Supply voltage with
the characteristic
value:
CC
 2 voltage inputs for redundant power
supply
 2-pin terminal block
Supply voltage with
the characteristic
value:
K9
 1 voltage input
 3-pin terminal block
Supply voltage with
the characteristic
value:
KK
 2 voltage inputs for redundant power
supply
 3-pin terminal block
Supply voltage with
the characteristic
value:
PP
 2 voltage inputs for redundant power
supply
 2-pin terminal block
9 Grounding screw
10 Connection for the signal contact
1234
5
6
7
9
8
10
11
12
