Installation RSPE 30/32/35/37
Release 12 10/2015
2.6.4 Supply voltage with characteristic value PP
You will find information on the characteristic values here:
“Device name and product code” on page 17
You have the option of supplying the supply voltage redundantly, without
load distribution.
Both supply voltage inputs are uncoupled.
Ensure that the external power supply unit you use to provide the PoE
voltage fulfills the insulation requirements according to IEEE 802.3
(insulation resistance 48 V, output to the “rest of the world” 750 V DC for
60 seconds).

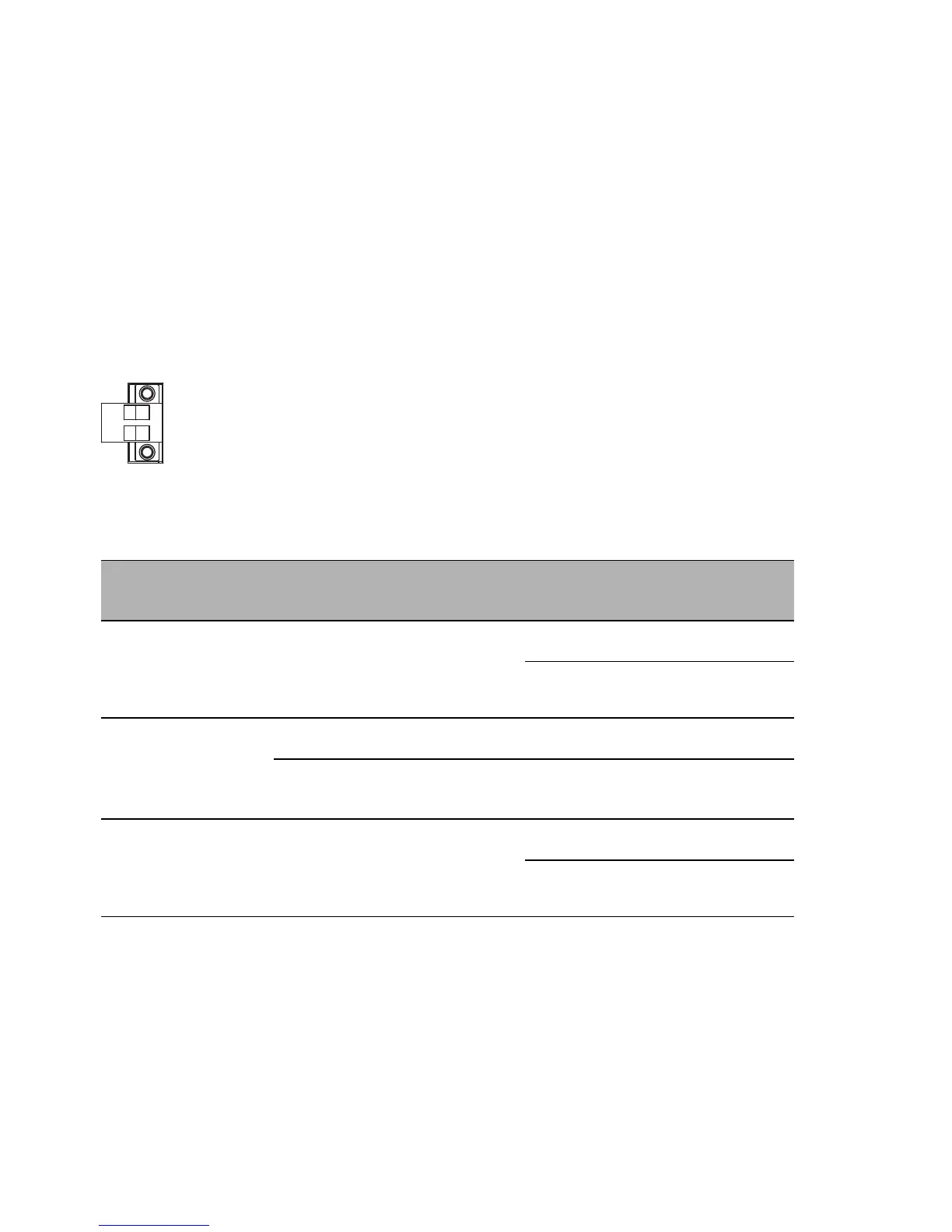

Figure 6: Supply voltage with the characteristic value PP: 2-pin terminal block with
screw locking
For every supply voltage to be connected, perform the following steps:
 Remove the power connector from the device.
 Connect the wires according to the pin assignment on the device with the
clamps.
 Fasten the wires connected by tightening the terminal screws.
Type of the voltages
that can be
connected
Specification of the supply
voltage
Connections
When using PoE:
DC voltage
Nominal voltage DC:
48 V
Voltage range DC incl. maximum
tolerances:
47 V... 57 V
+ Plus terminal of the supply
voltage
− Minus terminal of the supply
voltage
When using PoE+:
DC voltage
Nominal voltage DC:
54 V
+ Plus terminal of the supply
voltage
Voltage range DC incl. maximum
tolerances:
53 V... 57 V
− Minus terminal of the supply
voltage
Without using PoE or
PoE+:
DC voltage
Nominal voltage range DC:
24 V ... 48 V
Voltage range DC incl. maximum
tolerances:
19 V ... 60 V
+ Plus terminal of the supply
voltage
− Minus terminal of the supply
voltage
Table 12: Supply voltage with the characteristic value PP: type and specification of
the supply voltage, connections
−
+
