1.5 Ethernet ports
You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
Note: By using media modules, you obtain up to 16 additional Fast Ethernet
ports on a RSPM basic device.
You will find more information on the media modules in the “User Manual for
Installation of RSPM”.
Port 1 GE/FE Combo port 1 for Gigabit Ethernet and Fast Ethernet
Port 2 GE/FE Combo port 2 for Gigabit Ethernet and Fast Ethernet
Port 3 GE/FE Combo port 3 for Gigabit Ethernet and Fast Ethernet
Port 4 GE/FE Combo port 4 for Gigabit Ethernet and Fast Ethernet
Ports 5 to 12 Twisted pair port for Fast Ethernet
PoE-capable for the device variants RSPE 35 and RSPE 37

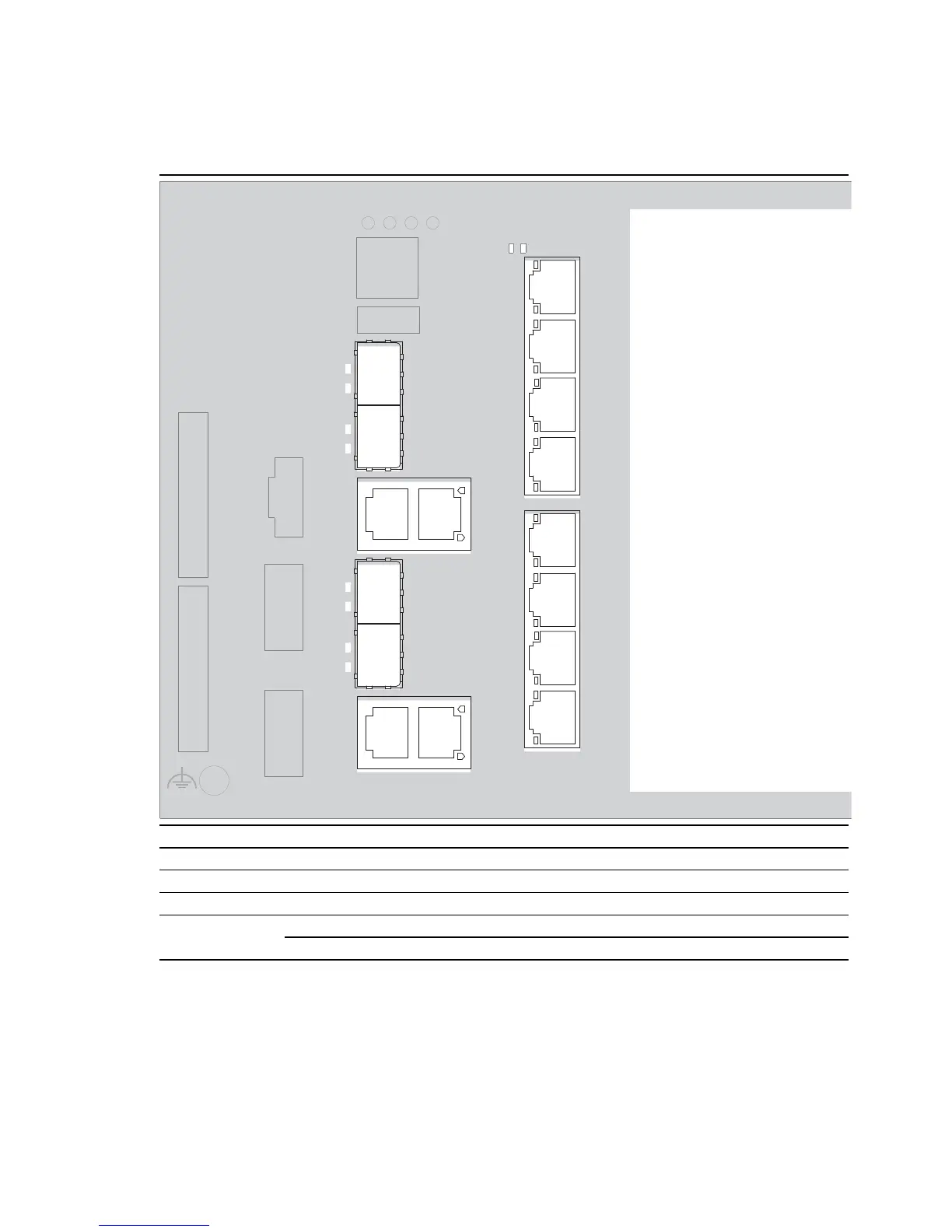

Table 6: Arrangement of the Ethernet ports on the device
RSPE32
x
1
GE/FE
1
GE/FE
2
GE/FE
2
GE/FE
3
GE/FE
3
GE/FE
4
GE/FE
4
GE/FE
5
6
7
8
9
10
11
12
