Hirschmann RSPE 30 User Manual

56
Installation RSPE 30/32/35/37
Release 12 10/2015

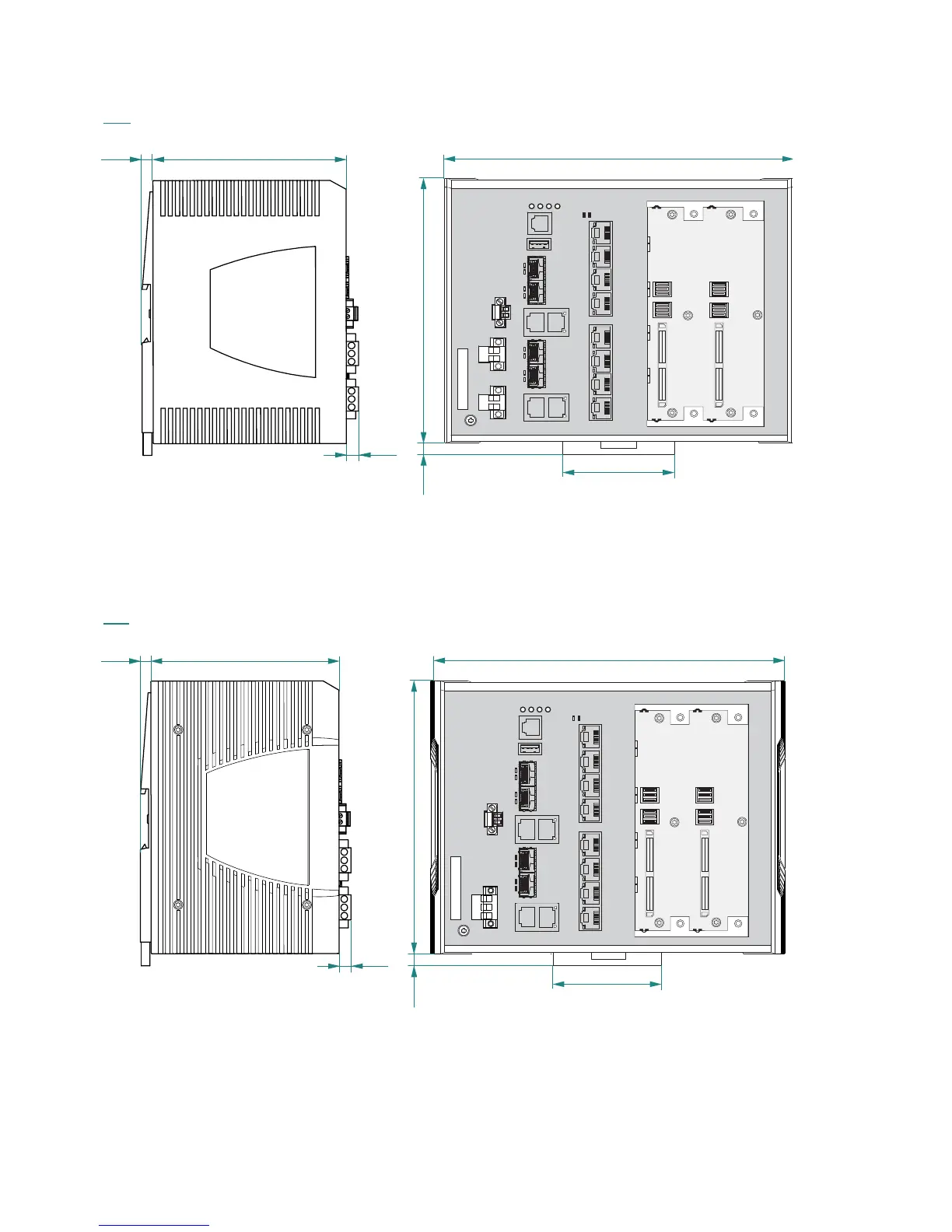

 Dimension drawings
Figure 7: Dimensions of the device variants with operating temperature
characteristic value S. For the characteristic value, cf. “Device name and
product code” on page 17.
Figure 8: Dimensions of device variants with operating temperature characteristic
value E and T. For the characteristic value, cf. “Device name and product
code” on page 17.
209
mm
inch
60
2.36
164
6.46
71
2.80
115
4.52
6,6
0.26
7,3
0.29
8.19
217
8.54
mm
inch
60
2.36
164
6.46
71
2.80
115
4.52
6,6
0.26
7,3
0.29
