Installation RSPE 30/32/35/37
Release
12
10/2015
39
2.5 Installing an SFP transceiver (optional)
Use only Hirschmann SFP transceivers which are suitable for usage with the
device.
See “Accessories” on page 63.
Proceed as follows:
Remove the protection cap from the SFP transceiver.

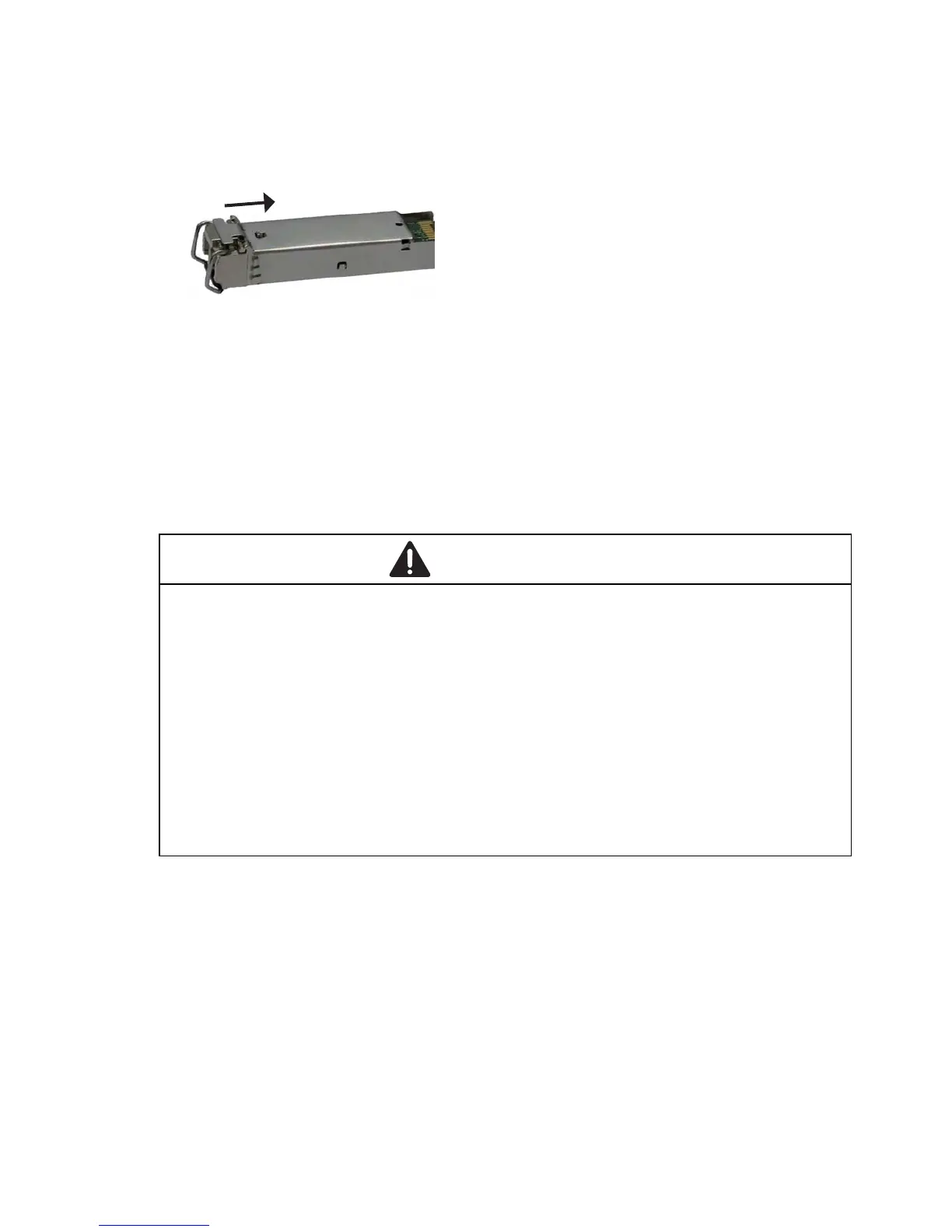

Push the transceiver with the lock closed into the slot until it latches in.
2.6 Connecting the terminal blocks
Note: The supply voltage is connected to the device casing through
protective elements exclusively.
WARNING
ELECTRIC SHOCK
Before connecting the electrical wires, always verify that the requirements
listed are complied with.
See “Requirements for connecting electrical wires” on page 6.
Never insert sharp objects (small screwdrivers, wires, etc.) into the
connection terminals for electric conductors, and do not touch the terminals.
Failure to follow these instructions can result in death, serious injury,
or equipment damage.
