Hirschmann RSPE 30 User Manual

30
Installation RSPE 30/32/35/37
Release 12 10/2015

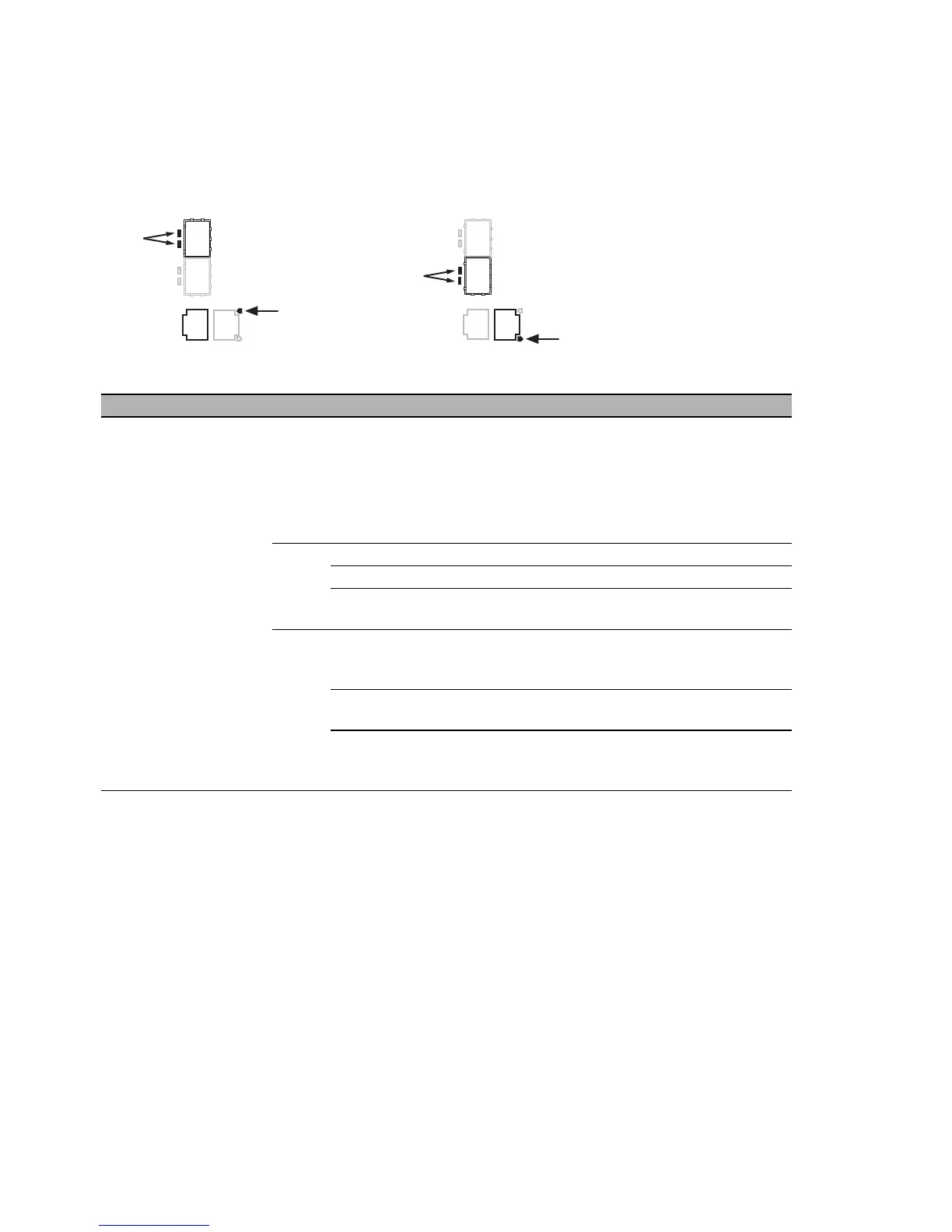

1.6.3 Port state
These LEDs provide port-related information.
The LEDs are directly located on the ports.
 Gigabit combo port
LED Display Color Activity Meaning
L/D Link status — None Device detects an invalid or missing
link
Note: When an SFP transceiver is
connected, the corresponding twisted
pair interface is automatically inactive.
Green Lights up Device detects a valid link
Flashes 1 time a period Port is switched to stand-by
Flashes 3 times a
period
Port is switched off
Yellow Lights up Device detects a non-supported SFP
transceiver or a non-supported data
rate
Flashing Device is transmitting and/or receiving
data
Flashes 1 time a period Device detects at least one
unauthorized MAC address (Port
Security Violation)
TX 1, 3
FX 1, 3
TX 2, 4
FX 2, 4
L/D
L/D
L/D
L/D
