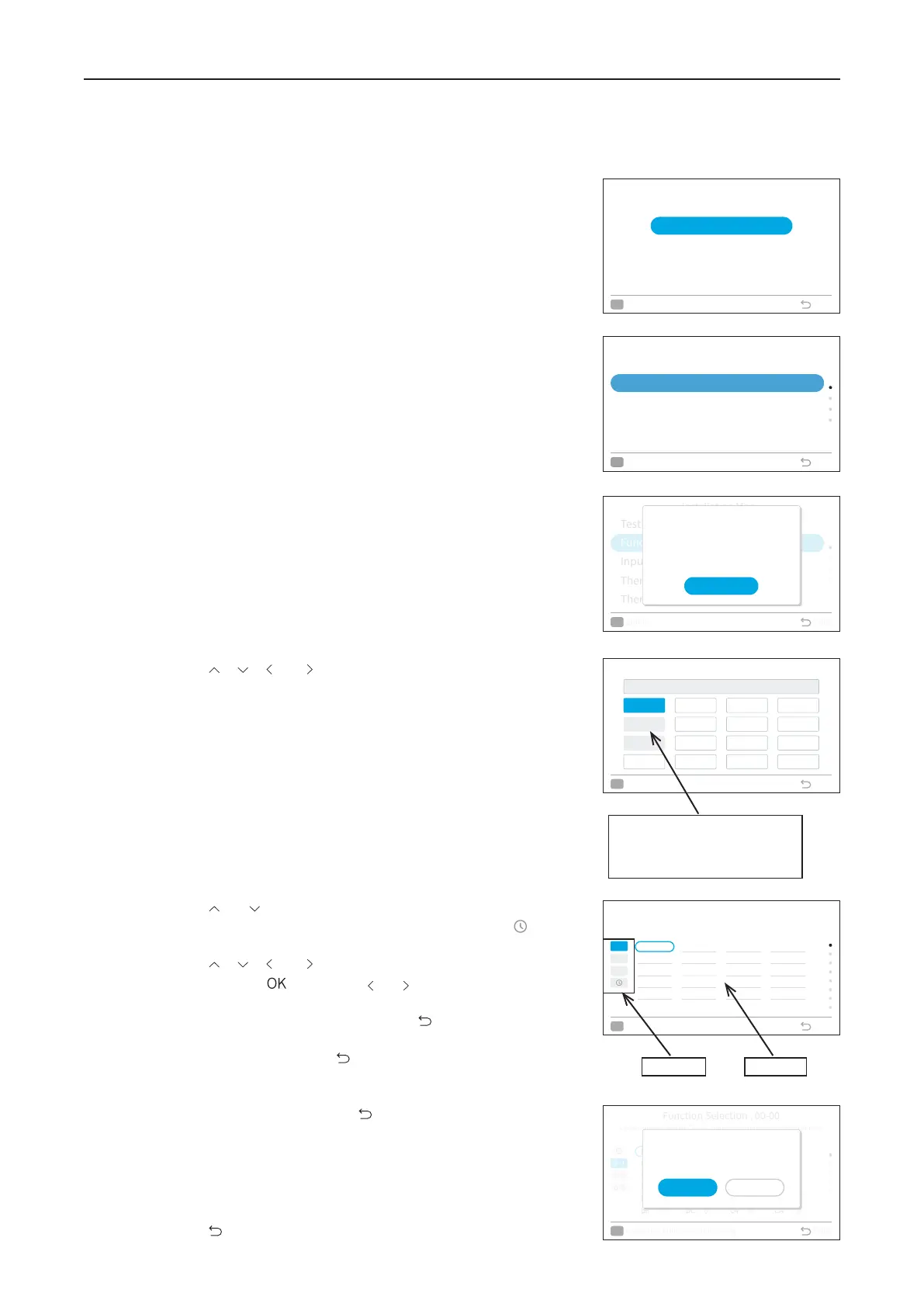

6. Function Selection
Function Selection is set from Installation Menu.
Step1. Select "Installation Menu" and press "OK " .
Step2. Select "Function Selection "and press "OK ".
Step3. Press " OK ".
Step4. Press " ", " ", " ", or " " to select the indoor unit to be set and
press "OK " .
This screen is not displayed when only one indoor unit is
connected to the wired remote controller. (The screen in Step5
is shown.)
Step5. Press "
" or " "
to select the type tab and press "OK " .
→It changes in the order of "b-J"
↔
"K-P"
↔
"q-S"
↔
" ".
Step6. Press " ", " ", " ", or " " to select the item to set from the
list area. Press " " and press "
" or " "
to change the setting
value.
Aer selecting the setting value, press " " to return to the
setting item selection mode.
To return to Step 5, press " " in the setting item selection
mode.
Step7. To conrm the setting, press " " in the tab selection mode.
Step8. Select "Yes" and press "OK " to conrm the setting and return
to Step2.
Select "No" and press "OK " to discard the settings and return
to Step2.
Press " "to return to Step5.
Installation Menu
OK
Select Back
Input/Output
Thermistor Selection
Thermistor Calibration in Controller
Function Selection
Test Run
(Mon) 16:30
Installation Menu
OK
Enter Back
Input/Output
Thermistor Selection
Thermistor Calibration in Controller
Function Selection
Test Run
OK
Select Back
OK
The function descriptions are for
reference only. Refer to technical
documents of unit for details.
OK
Function Selection
00-00
ALL
00-01
00-02
OK
Select Back
b1: Set heating temperature compensation
Function Selection : 00-00
b1 b7 bd C5
b2 b8 bE C6
b3 b9 C1 C7
b5 bb C3 C9
b4 bA C2 C8
b6 bC C4 CA
01
00 00 00
00 00 00 00
00 00 00 00
00 00 00 00
00 00 00 00
00 00 00 00
01:Tset+0
o
C( no compensation)
Back
OK Select
b-J
K-P
q-S
Cancellation of Heating Temp Compensation due to Uneven Heat Load
Function Selection : 00-00
b1 b7 bd C5
b2 b8 bE C6
b3 b9 C1 C7
b5 bb C3 C9
b4 bA C2 C8
b6 bC C4 CA
01
00 00 00
00 00 00 00
00 00 00 00
00 00 00 00
00 00 00 00
00 00 00 00
01:Standard(Set Temp. +7oF(+4oC))
Back
OK Long Press either selection dialog
b-J
K-P
q-S
Confirm function selection setting?
Yes No
OK
Select Back
Service & Installation
Check Menu
Installation Menu
Service Menu
OK
Select Back
(Mon) 16:30
Indoor unit number
(Refrigerant system number
—Address number)
Type tab List area
