Preparation initial
check
Technical Catalogue
5
27
TCGB0051 rev 0 - 09/2009

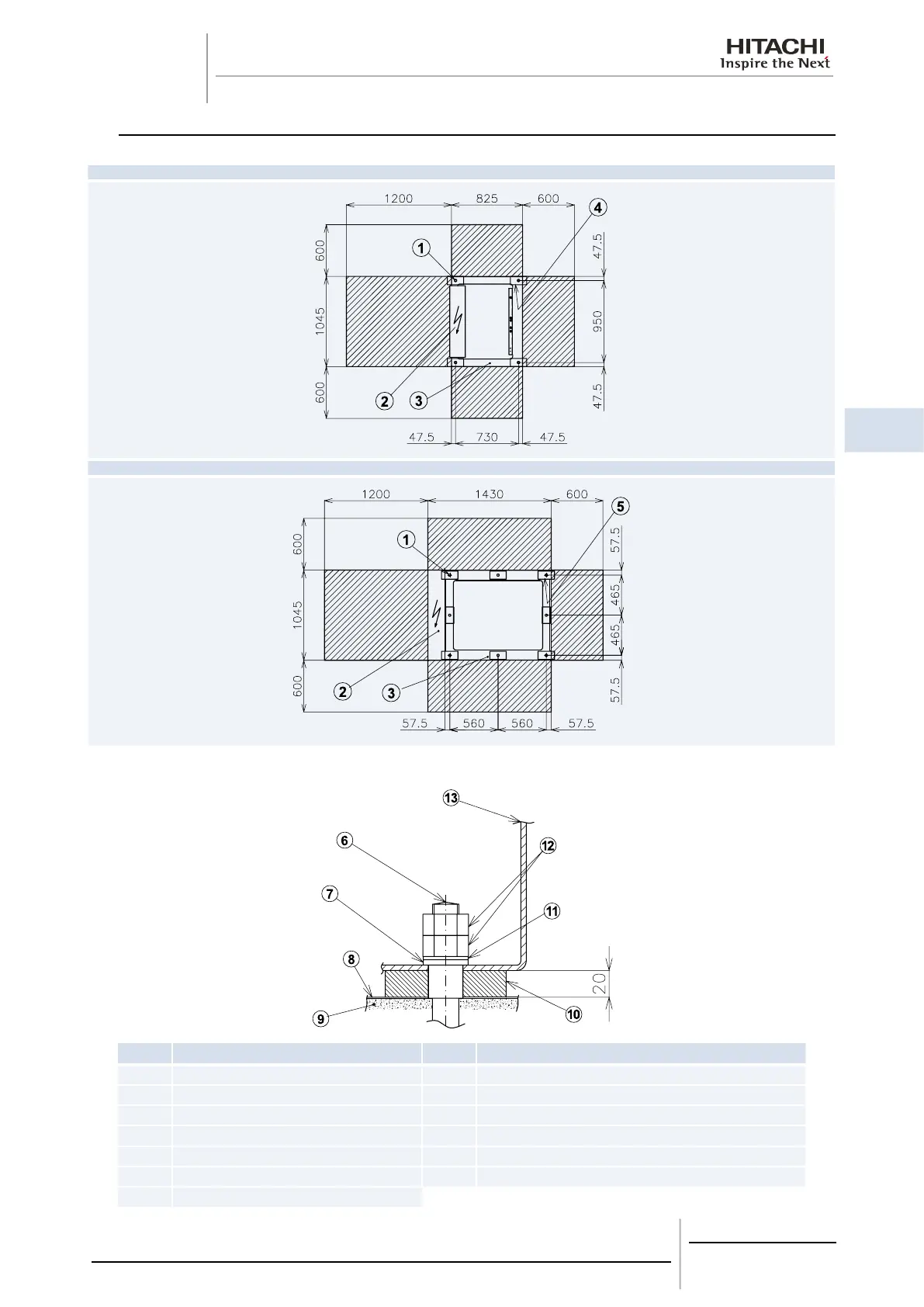

5.4. Service space and foundation
RCUE 40, 50 60CLG2
RCUE 80, 100, 120CLG2
Detail of foundation (example: RCUE60CLG2)
Nº Name Nº Name
1 4-Ø 26 (Mounting Holes) 8 Steel Plate (1 mm)
2 Electrical Box 9 Concrete
3 Bottom Frame 10 Vibration proof Rubber Mat (1 mat per position) (option)
4 Vibration proof Rubber Mat (4 positions) 11 Washer
5 Vibration proof Rubber Mat (8 positions) 12 Nut
6 Foundation bolt (M20) 13 Bottom Frame
7 Rubber Bush (option)
To Next Page
