Hitachi SAMURAI Series User Manual

Controller Adjustment
Technical Catalogue
TCGB0051 rev 0 - 09/2009
50
SWITCH POSITION
ON
OFF
ON
ON
OFF
OFF
 High Cut Check (Fan Stop for Checking)
(NOT AVAILABLE)
 Chilled Water Temperature Setting
(STANDARD: “+07”)
 Defrosting Set by Ambient Temperature (Heat Pump)
(NOT AVAILABLE)
 Continuous Capacity Control Setting
(STANDARD)
 Compressor starting Delay Time (STANDARD: 3
min) High Cut Check Setting (Stop Fan Selection:
NOT AVAILABLE.)
 Mode Set Switch A
(DEPEND ON MODEL)
 Manual Defrost (Heat Pump)
(NOT AVAILABLE)
 Optional Function B
(STANDARD: ALL OFF)
 Optional Function C
(STANDARD: ALL OFF)
 Mode Set Switch B
 Local/Remote Changeover Switch
(STANDARD: “Local”)
 Cool/Heat Changeover Switch
(STANDARD: “Cool”)
 Current Limitation
(Not Available)
 Neutral Zone Setting
(STANDARD: “3”)
 Hot Water Temperature Setting for Heat Pump
(NOT AVAILABLE)
 Optional Function A (Outernals signals, Self-
Checking mode)
(STANDARD: ALL OFF)
 Pump Operation
(STANDARD: OFF)
LED
PUSH
BUTTON
SWITCH
7 SEGMENTS
Cool
Heat
Local
Remote

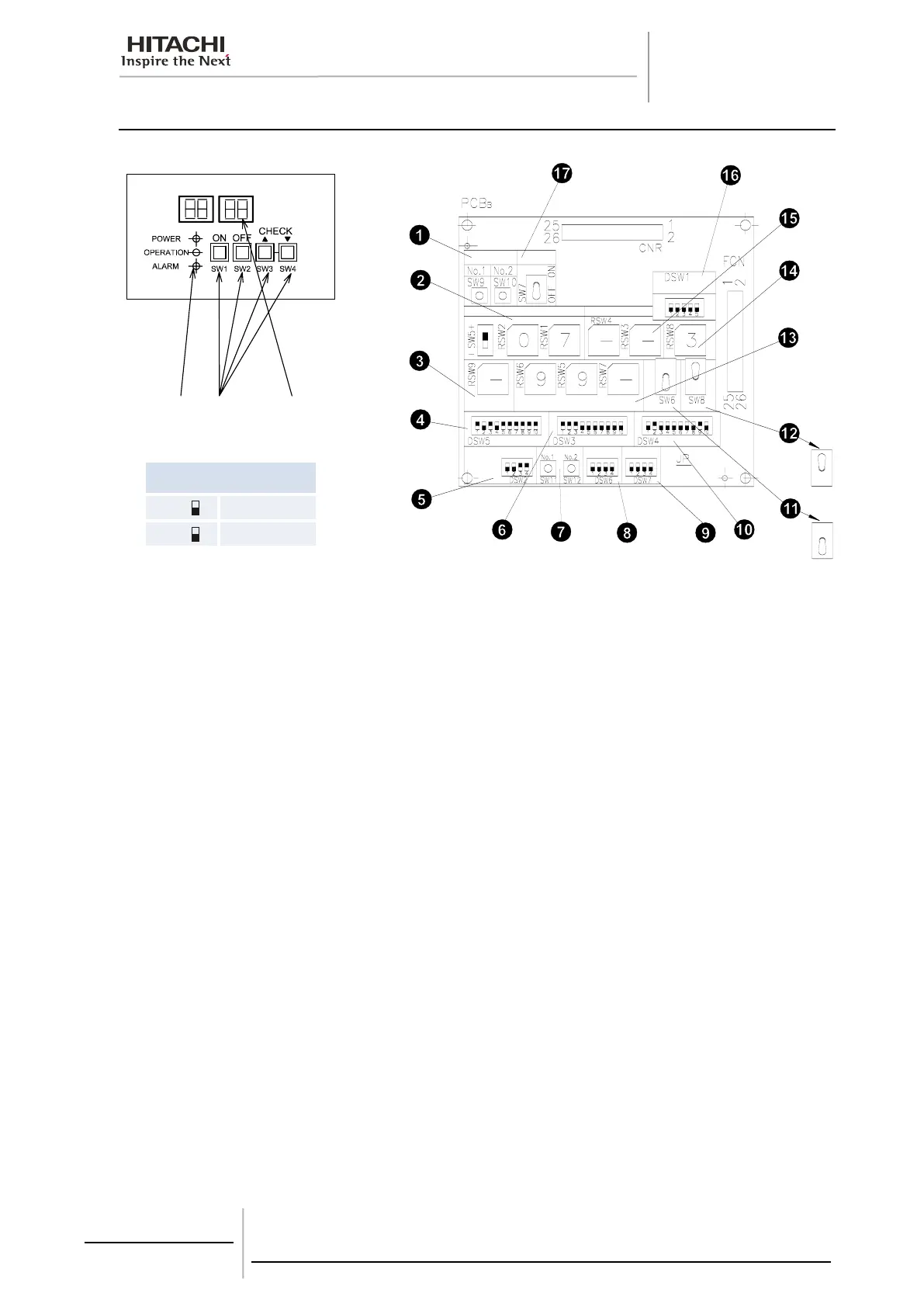

8.1. PCB Drawing
