Honda BF15D User Manual

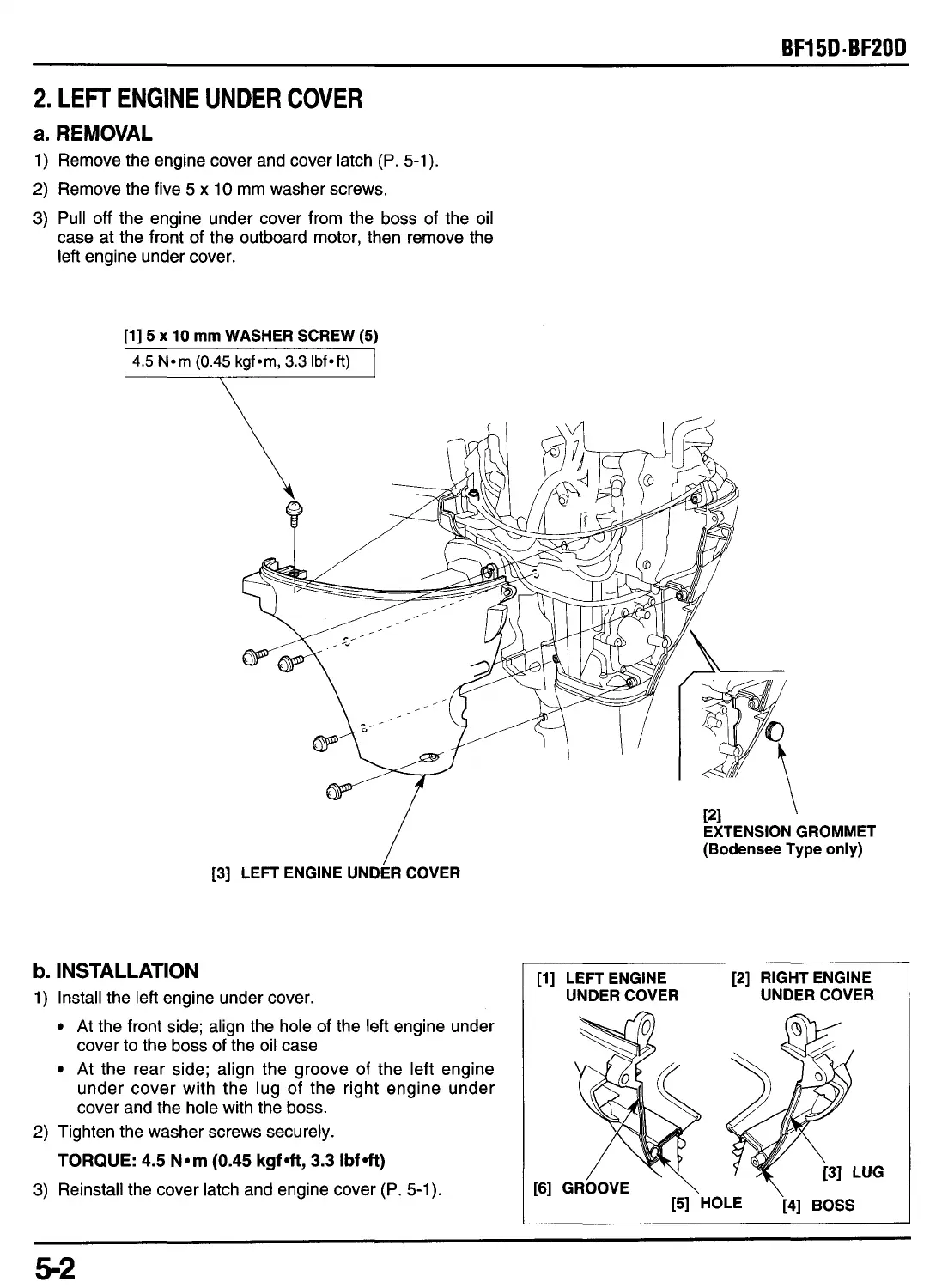

2. LEFT ENGINE UNDER COVER
a. REMOVAL
1) Remove the engine cover and cover latch (P. 5-1).
2) Remove the five 5 x 10 mm washer screws.
3) Pull off the engine under cover from the boss of the oil
case at the front of the outboard motor, then remove the
left engine under cover.
111 5 x 10 mm WASHER SCREW (5)
1 4.5 N*m (0.45 kgf-m, 3.3 Ibfoft)
1
/
/
[3] LEFT ENGINE UNDER COVER
b. INSTALLATION
1) Install the left engine under cover.
At the front side; align the hole of the left engine under
cover to the boss of the oil case
At the rear side; align the groove of the left engine
under cover with the lug
of the right engine under
cover and the hole with the boss.
2) Tighten the washer screws securely.
3) Reinstall the cover latch and engine cover (P.
5-1).
TORQUE: 4.5 N*m (0.45 kgfoft, 3.3 Ibfoft)
\
121
EXTENSION GROMMET
(Bodensee Type only)
[l] LEFT ENGINE
[2] RIGHT ENGINE
UNDER COVER UNDERCOVER
I

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
