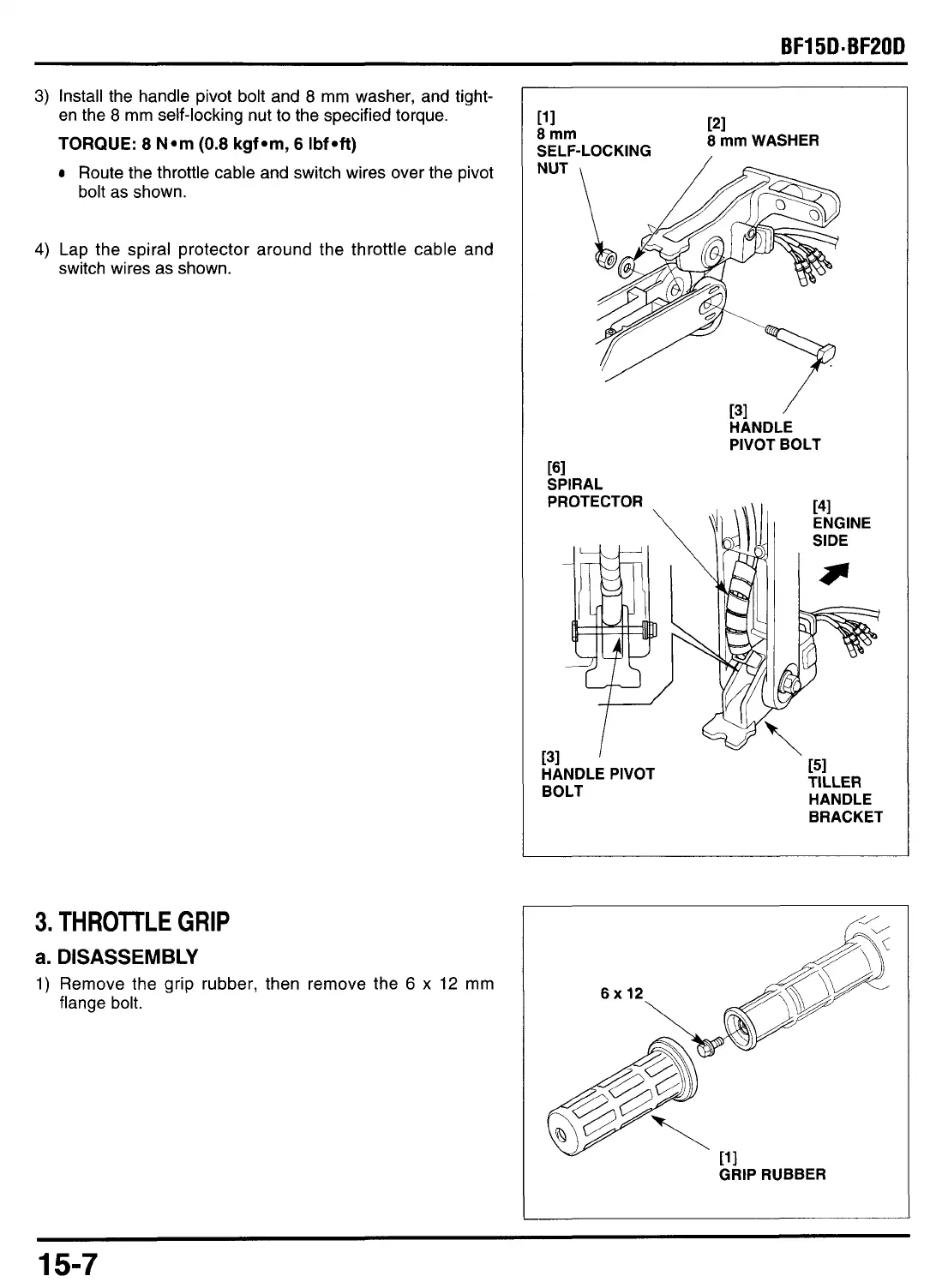

3) Install the handle pivot bolt and 8 mm washer, and tight-
en the
8 mm self-locking nut to the specified torque.
TORQUE:
8 N*m (0.8 kgfom, 6 Ibf*ft)
Route the throttle cable and switch wires over the pivot
bolt as shown.
4) Lap the spiral protector around the throttle cable and
switch wires
as shown.
3. THROTTLE GRIP
a. DISASSEMBLY
1) Remove the grip rubber, then remove the 6 x 12 mm
flange bolt.
PI PI
8 mm 8 mm WASHER
SELF-LOCKING
1 NUT
HANDLE
PIVOT BOLT
PROTECTOR
[51
131
TILLER
HANDLE
HANDLE PIVOT
BOLT
[41
ENGINE
BRACKET
15-7

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
