Honda BF15D User Manual

BFlSDmBFPOD

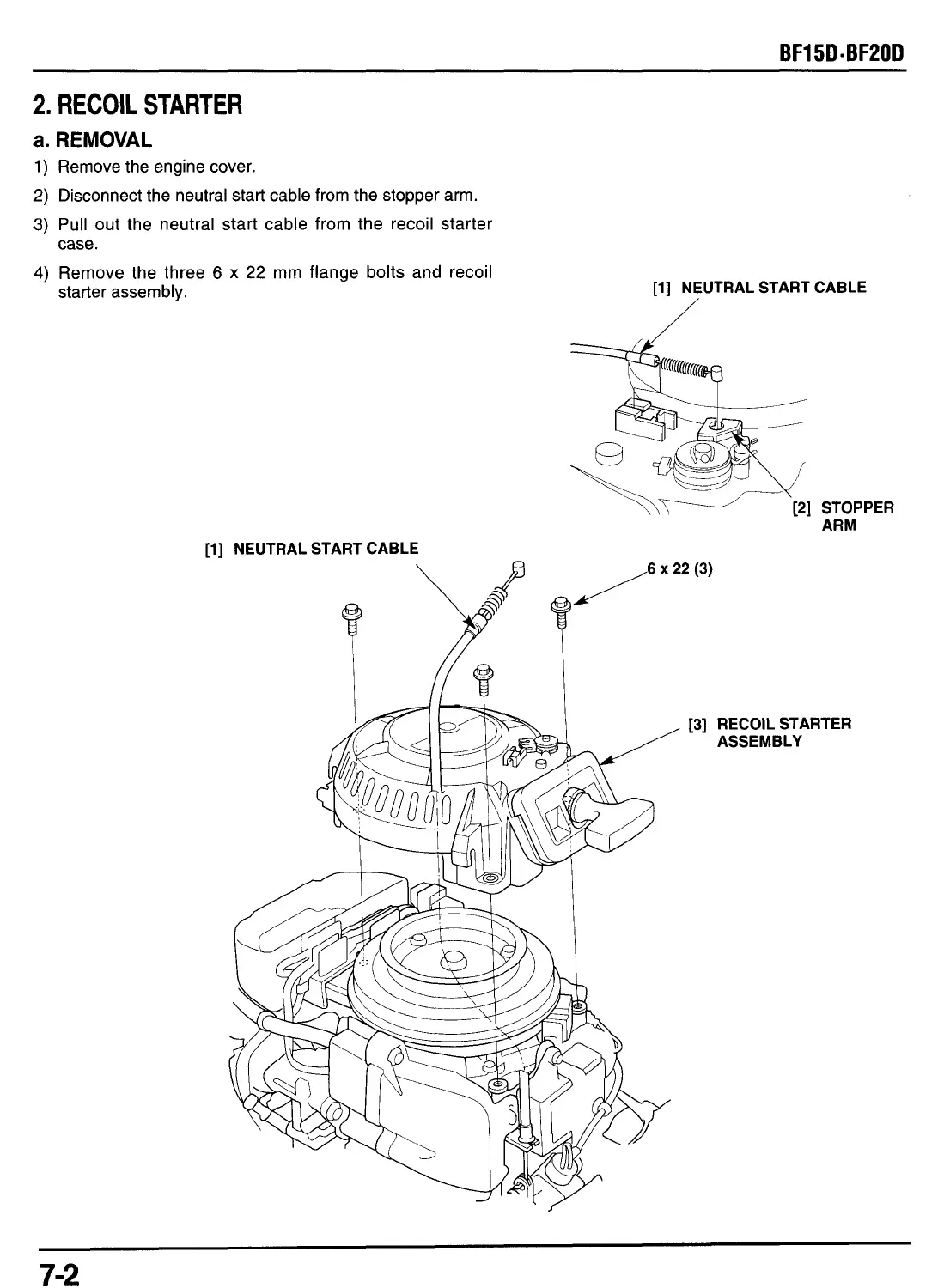

2. RECOIL STARTER
a. REMOVAL
1) Remove the engine cover.
2) Disconnect the neutral start cable from the stopper arm.
3) Pull out the neutral start cable from the recoil starter
4) Remove the three 6 x 22 mm flange bolts and recoil
case.
starter assembly.
[l] NEUTRAL START CABLE
--
ARM
[l] NEUTRAL START CABLE
, PI
RECOIL STARTER
ASSEMBLY
7-2

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
