BF15D-BF20D

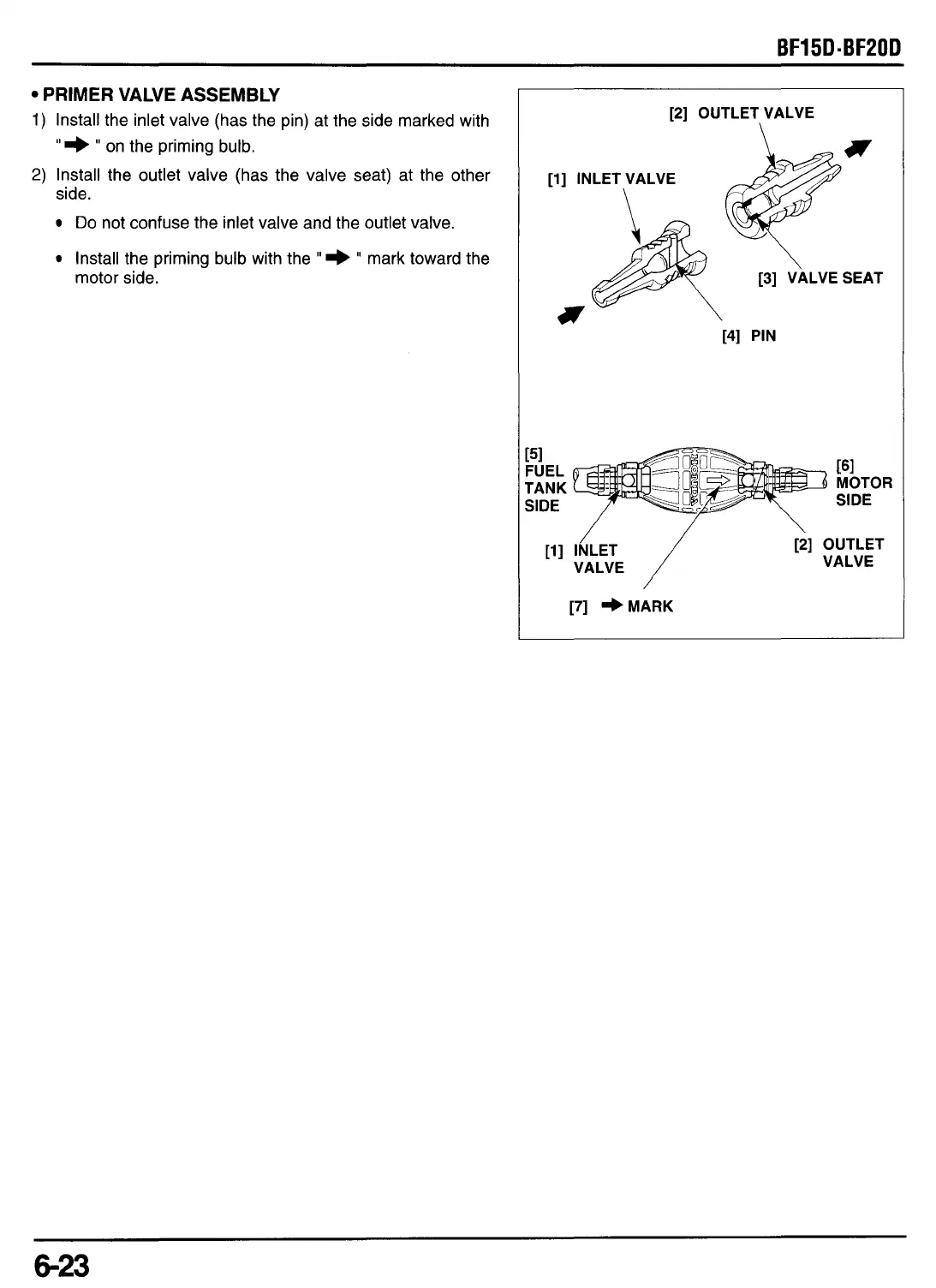

PRIMER VALVE ASSEMBLY
1)
Install the inlet valve (has the pin) at the side marked with
"
I)
"
on the priming bulb.
2)
Install the outlet valve (has the valve seat) at the other
side.
Do
not confuse the inlet valve and the outlet valve.
Install the priming bulb with the
"I)
"
mark toward the
motor side.
[I] INLET VALVE
\
[2] OUTLET VALVE
\
U
[3] VALVE SEAT
[4] PIN
[GI
MOTOR
SIDE
51
WEL
rANK
SIDE
/
[l] INLET
VALVE
[7] *MARK
[2] OUTLET
VALVE
